Pneumatic PVC ball valve

The pneumatic plastic ball valve is connected by two orders and flanges. It can be quickly installed without the use of special tools. The local structure is compact, wear-resistant, easy to disassemble, easy to repair,and easy to maintain. Body material is sanitary, non-toxic, corrosion resistant, light weight and wide application. For example, pure water and raw water pipeline system, drainage and sewage pipeline system, brine and seawater pipeline system, acid-base and chemical solution system and many other industries.

Parts and Materials

No.	Description	QTY	Meterial	Protection	Optional Meterial
1	Indicator screw	1	Plastic
2	Indicator	1	Plastic
3	Spring clip	1	Stainless Steel
4	Thrust washer	1	Stainless Steel
5	Outside washer	1	Engineering Plastics
6	Body	1	Extruded alluminum ally	Hard anodized etc
7	Bearing(pinoion top)	1	Engineering Plastics
8	Inside washer	1	Engineering Plastics
9	O-ring(pinoion top)	1	NBR		Viton/Silicone
10	Cam	1	Alloy steel
11	Pinion	1	Alloy steel	Nickel plated	Stainless Steel
12	O-ring(pinoion bottom)	1	Engineering Plastics
13	Bearing(pinoion bottom)	1	NBR		Viton/Silicone
14	Plug	2	NBY		Viton/Silicone
15	O-ring(Adjust screw)	2	NBY		Viton/Silicone
16	Adjusting screw washer	2	Stainless Steel
17	Nut(Adjust screw)	2	Stainless Steel
18	Adjust screw	2	Stainless Steel
19	Piston	2	Cast alluminum/casting	Anodized/Zinc galvanized	Stainless Steel
20	Guide(Piston)	2	Engineering Plastics
21	Bearing(Piston)	2	Engineering Plastics
22	O-ring(Piston)	2	NBY		Viton/Silicone
23	Spring	0-12	Sping steel	Dip coating
24	O-ring(End cap)	2	NBY		Viton/Silicone
25	End cap	2	Cast alluminum	Powder polyster painted etc
26	Cap screw	8	Stainless Steel
27	Stop screw	2	Stainless Steel
28	Nut(Stop screw)	2	Stainless Steel

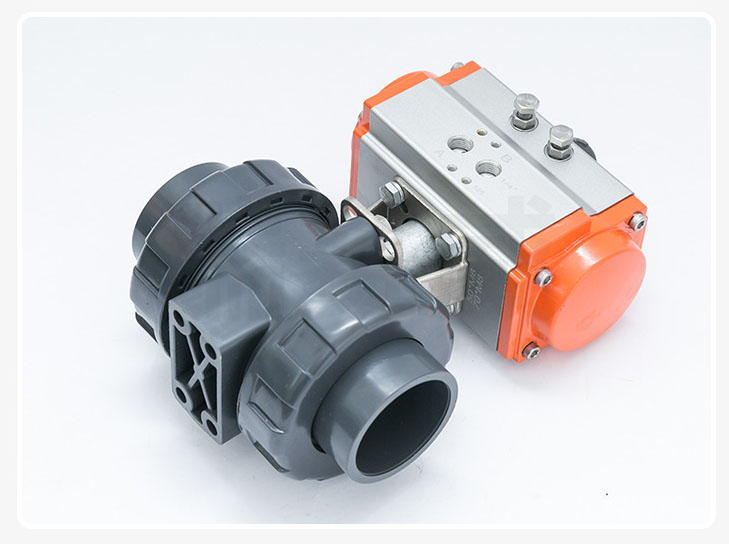

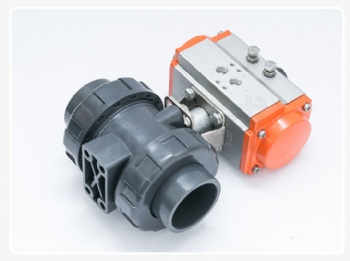

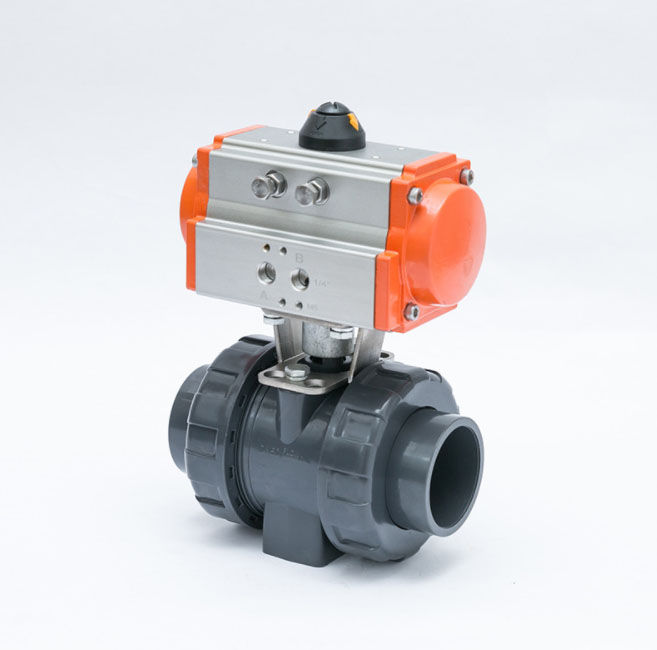

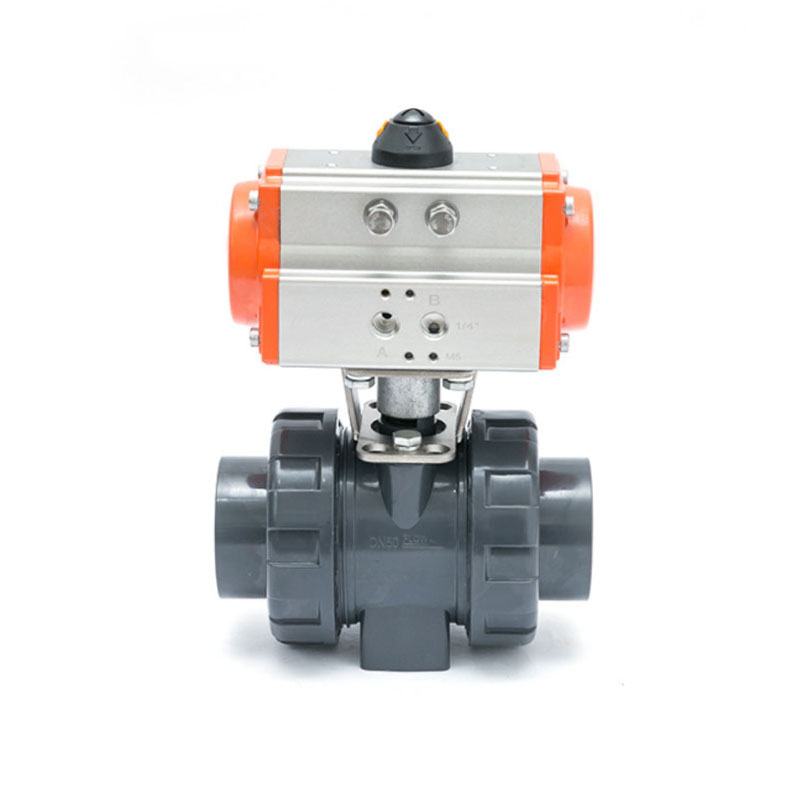

Picture show

Technical details

Size:	DN15-DN200	Pneumatic Actuator:	Double acting&Single acting
Temperature:	≤80℃	Limit switch:	ON-OFF (Two-way& Three-way)
Medium:	Water,Natural gas, Alcohols, Salts, Alkalis, Oil,Air, etc.	Solenoid valve:	AC220V,AC24V,DC24V,DC12V AC380V
Working Pressure:	PN10	Filters:	0.1-1.6（mpa）
Connections:	Double union socket and Threaded

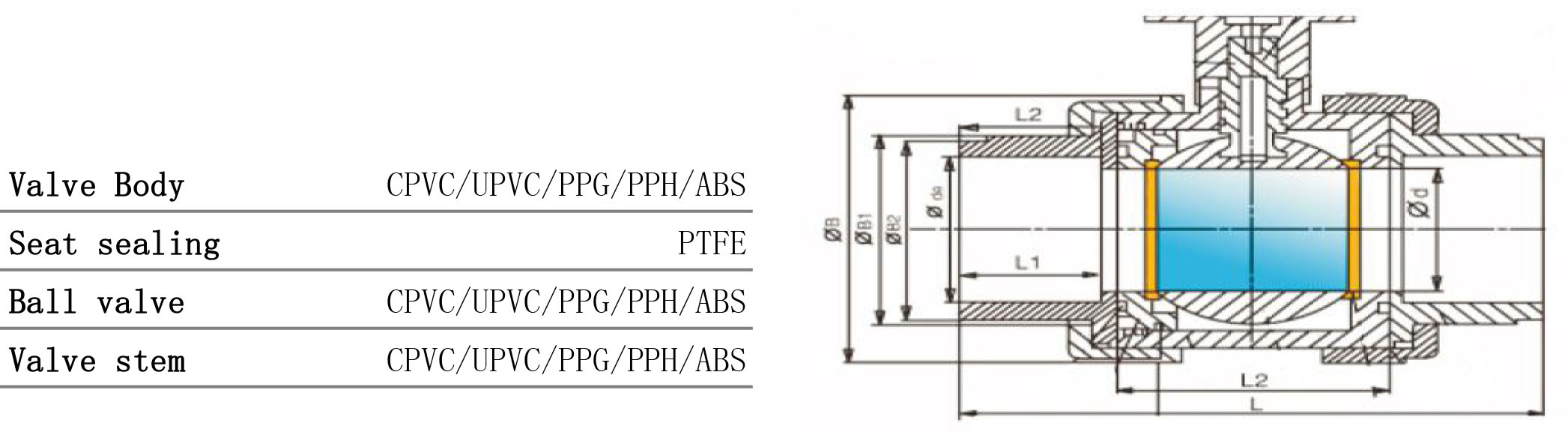

Main parts and materials

Dimensions

DN	inch	DIN	ANSI	JIS	Thd/in (BSPT)	L	L2	B1	B2
15	1/2"	ø20	ø21.3	22		112	47	34	32
20	3/4"	ø25	ø26.7	26	14	131.1	54	40	37
25	1"	ø32	ø33.4	32	14	142.6	62	47	45
32	1-1/4"	ø40	ø42.2	38	11.5	167	69	57	55
40	1-1/2"	ø50	ø48.3	48	11.5	174.7	80	64	61
50	2"	ø63	ø60.3	60	11.5	204	85	77	75
65	2-1/2"	ø75	ø73	76	11.5	275	124	97	90
80	3"	ø90	ø88.9	89	8	299.7	124	116	112
100	4"	ø110	ø114.3	114	8	325.5	139	137	131
125	5"	ø140	ø141.3	140
150	6"	ø160	ø168.3	165
200	8"	ø225	ø219	216
