Pneumatic 3way thread ball valve

EMAIL INQUIRY

Pneumatic three-way thread ball valves have L-type and T-type. The L-type three-way ball valve can achieve different control of the three pipeline fluids by changing the angle between the ball core and the pipeline; the T-type is a proportioning function, which is suitable for liquids and gases. , Steam and other media ratio adjustment control, widely used in food, environmental protection, petroleum, fire fighting, water systems, etc.

Parts and Materials

No.	Description	QTY	Meterial	Protection	Optional Meterial
1	Indicator screw	1	Plastic
2	Indicator	1	Plastic
3	Spring clip	1	Stainless Steel
4	Thrust washer	1	Stainless Steel
5	Outside washer	1	Engineering Plastics
6	Body	1	Extruded alluminum ally	Hard anodized etc
7	Bearing(pinoion top)	1	Engineering Plastics
8	Inside washer	1	Engineering Plastics
9	O-ring(pinoion top)	1	NBR		Viton/Silicone
10	Cam	1	Alloy steel
11	Pinion	1	Alloy steel	Nickel plated	Stainless Steel
12	O-ring(pinoion bottom)	1	Engineering Plastics
13	Bearing(pinoion bottom)	1	NBR		Viton/Silicone
14	Plug	2	NBY		Viton/Silicone
15	O-ring(Adjust screw)	2	NBY		Viton/Silicone
16	Adjusting screw washer	2	Stainless Steel
17	Nut(Adjust screw)	2	Stainless Steel
18	Adjust screw	2	Stainless Steel
19	Piston	2	Cast alluminum/casting	Anodized/Zinc galvanized	Stainless Steel
20	Guide(Piston)	2	Engineering Plastics
21	Bearing(Piston)	2	Engineering Plastics
22	O-ring(Piston)	2	NBY		Viton/Silicone
23	Spring	0-12	Sping steel	Dip coating
24	O-ring(End cap)	2	NBY		Viton/Silicone
25	End cap	2	Cast alluminum	Powder polyster painted etc
26	Cap screw	8	Stainless Steel
27	Stop screw	2	Stainless Steel
28	Nut(Stop screw)	2	Stainless Steel

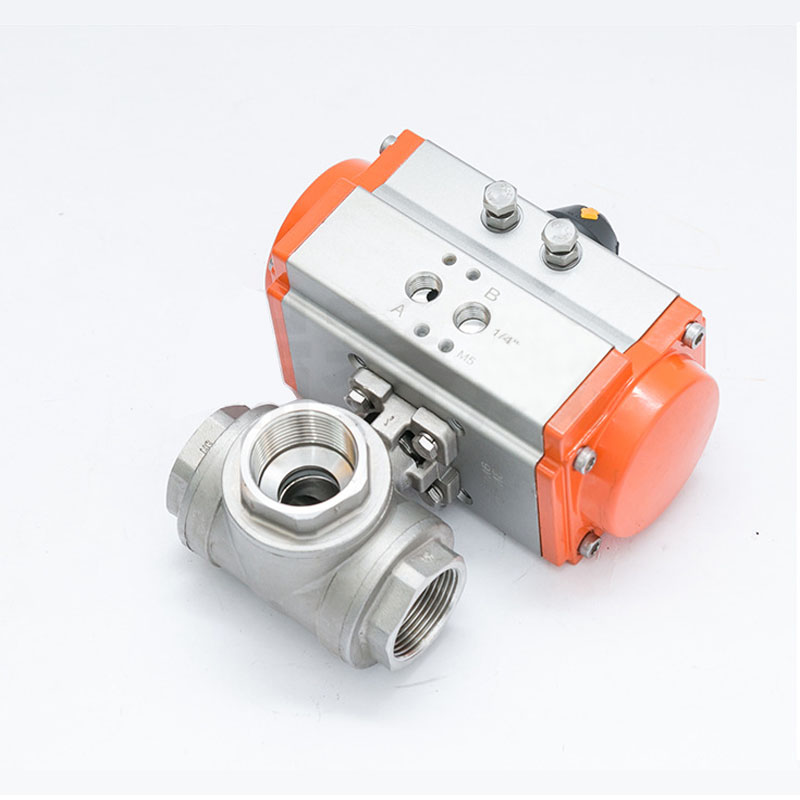

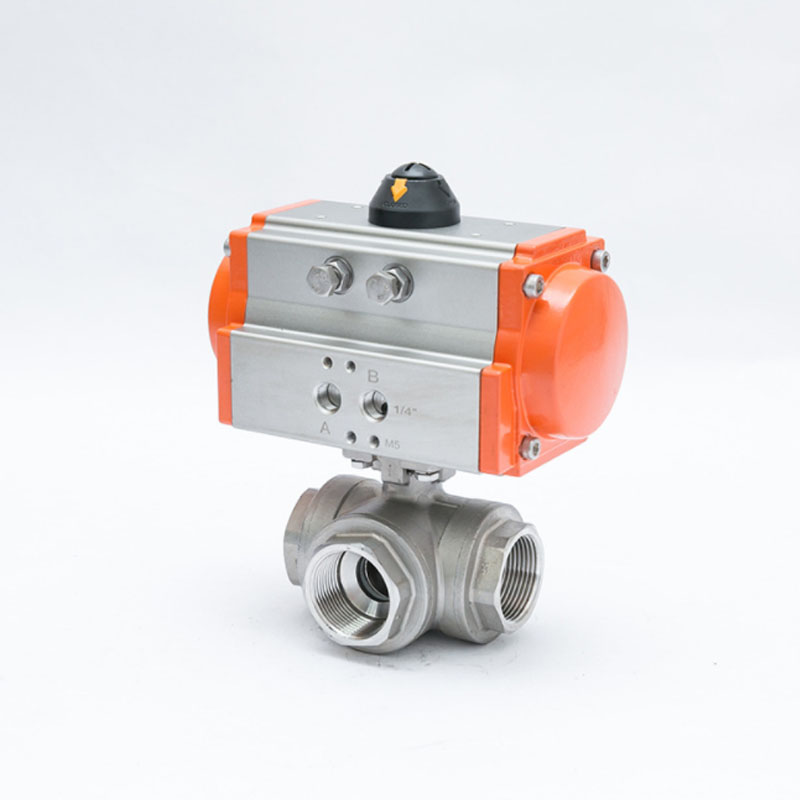

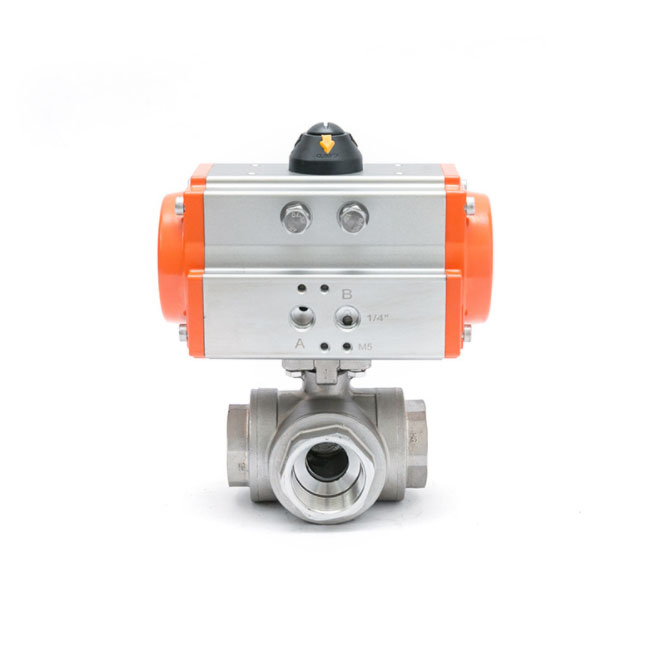

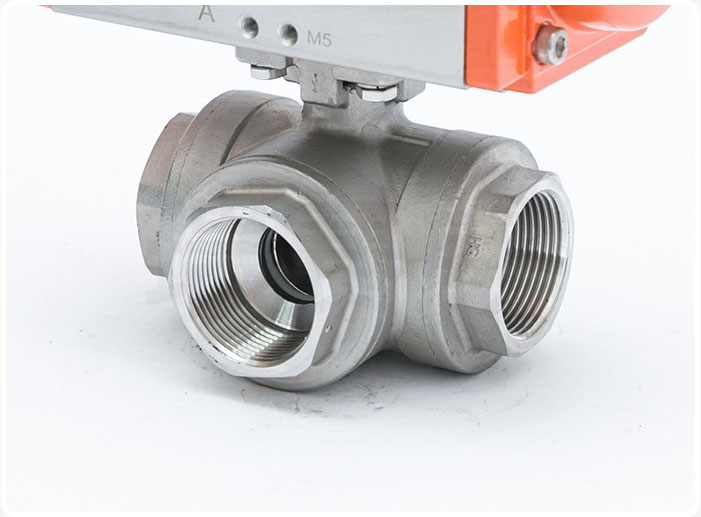

Picture show

Technical details

Size:	DN15-DN50	Pneumatic Actuator:	Double acting&Single acting
Temperature:	≤200℃	Limit switch:	ON-OFF (Two-way& Three-way)
Medium:	Water,Natural gas, Alcohols, Salts, Alkalis, Oil,Air, etc.	Solenoid valve:	AC220V,AC24V,DC24V,DC12V AC380V
Working Pressure:	PN16	Filters:	0.1-1.6（mpa）
Connections:	thread

Main parts and materials

Dimensions

DN (mm)	in	D	G	L	L0	L1	L2	H	S	Actuator
15	1/2	10	1/2"	68	34	178	121	177	26	05 Actuator
20	3/4	15	3/4"	78	39	178	121	180	32	05 Actuator
25	1	20	1"	86	43	178	121	199	38	05 Actuator
32	1-1/4	25	1-1/4"	111	55.5	210	131	231	49	10 Actuator
40	1-1/2	32	1-1/2"	126	63	210	131	235	56	15 Actuator
50	2	38	2"	143	71.5	210	131	263	70	15 Actuator
