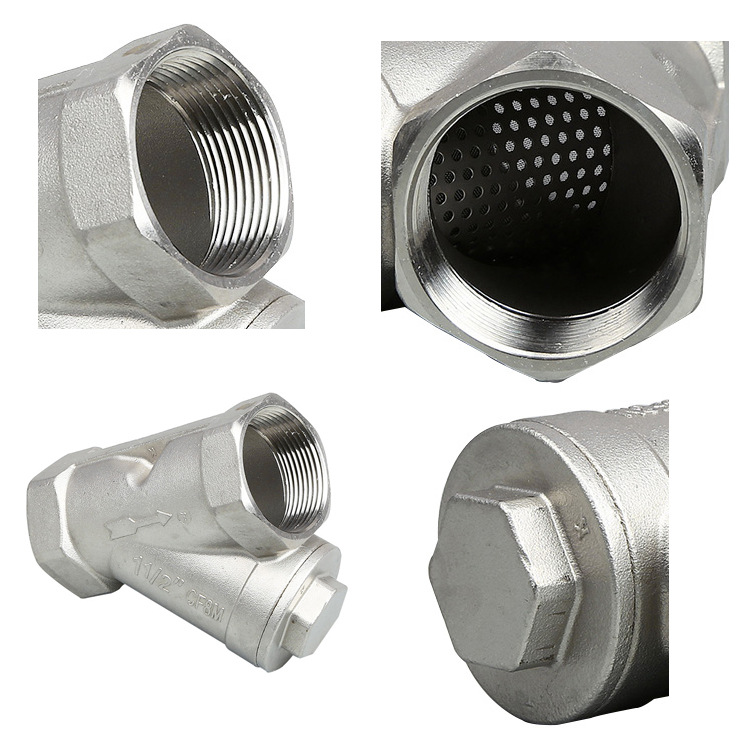

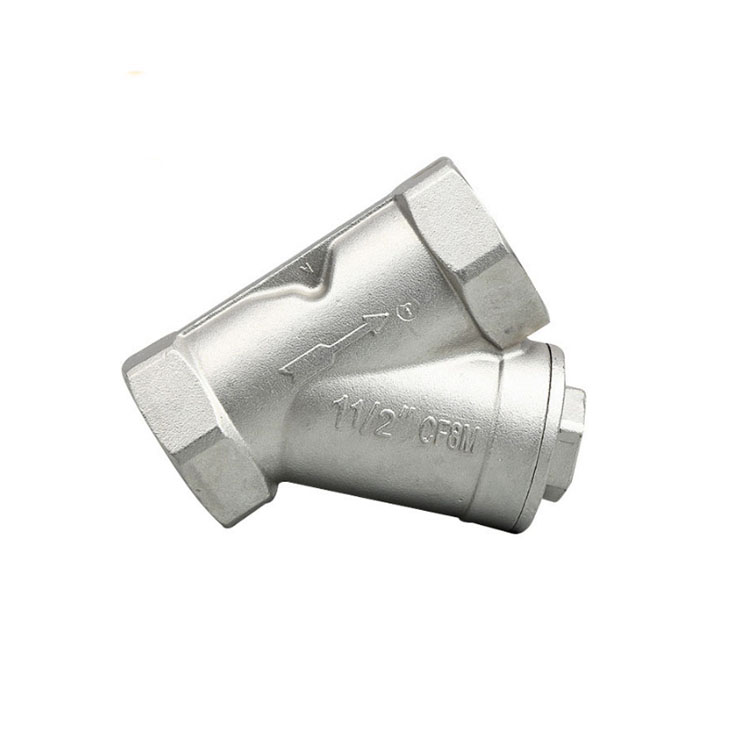

Features
SIZE: *1/4"-3"(DN8-80)
*Working Pressure:800WOG(PN50)
*Working Temperature:-20℃-180℃
*Investment casting
*Thread end:AMSE B1.20.1(NPT),
DIN259/DIN2999,BS 21,
ISO 288-1 ISO 7-1
*Socket Weld end :AMSE B16.11
Materials
No.
PARTS
Materials
NO.
Parts
Materials
1
BODY
WCB,CF8,CF8M
4
BONNET
WCB,CF8,CF8M
2
SCREEN
SS304,SS316
5
GASKET
PTFE
3
GASKET
PTFE
6
PLUG
WCB,CF8,CF8M

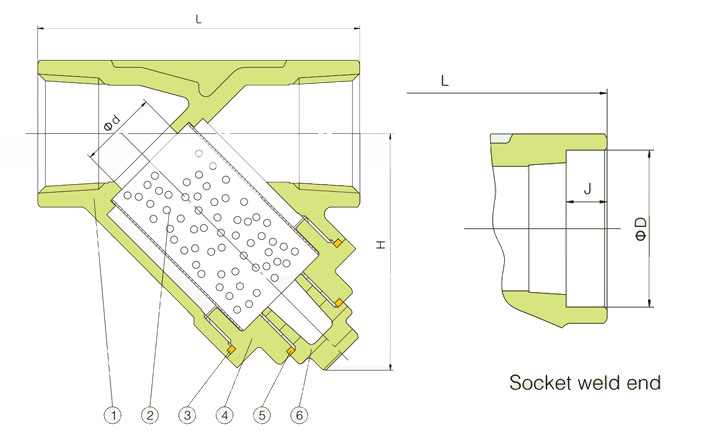

Dimensions(mm)
SIZE
D
L
H
D
J
1/4"
DN8
11
65
45
14.2
9.5
3/8"
DN10
11
65
45
17.6
9.5
1/2"
DN15
15
65
45
21.8
9.5
3/4"
DN20
20
80
58.5
27.2
12.5
1"
DN25
22
90
66
33.9
12.5
1-1/4"
DN32
32
105
84.5
42.7
12.5
1-1/2"
DN40
39
120
87.5
48.8
12.5
2"
DN50
50
140
99.5
61.2
16
2-1/2"
DN65
63
170
113
73.9
16
3"
DN80
76
195
130
89.8
16
