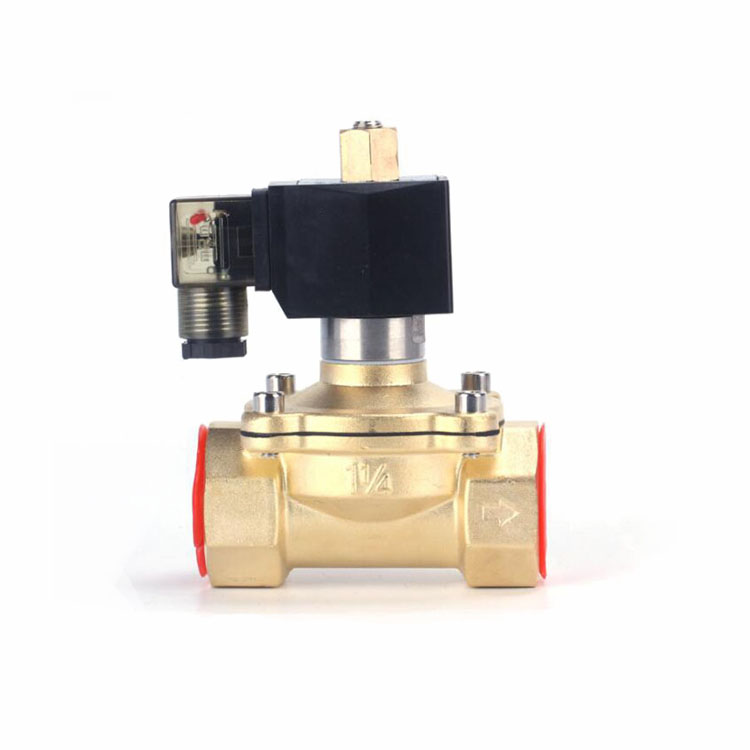

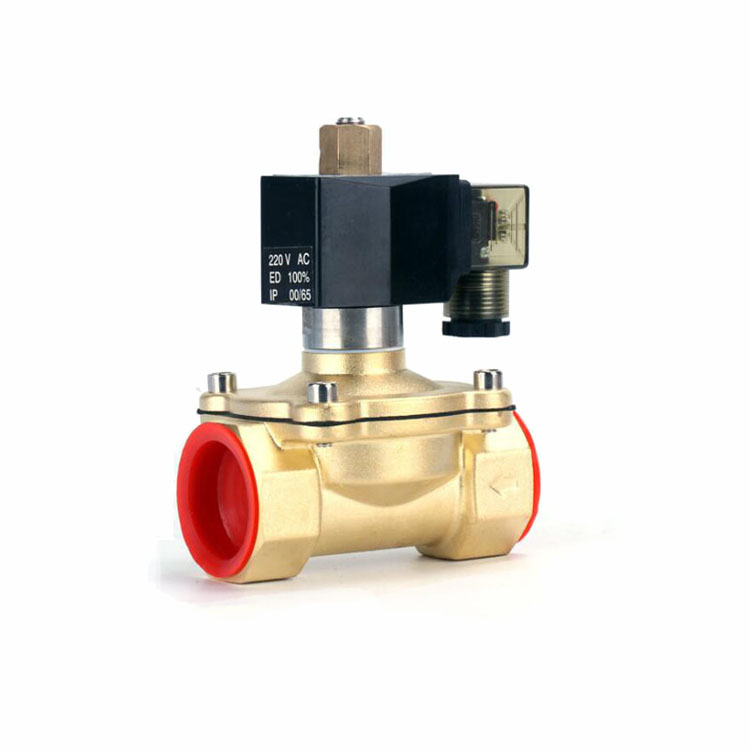

Solenoid valve 2w NO
The 2 Way Brass Normally open type Solenoid Valves provide and on-off control of inherit liquids and gases. Suitable for
commercial and residential applications. This valve type is deal for low pressure fluid applications. Available in sizes from 3/8" - 2" in both Normally Closed and Normally Open operating positions.
*These valves are not intended for use in medical life support, combustion,aerospace, automotive or similar applications.
Characteristic:
1).The direct-acting type diaphragm structure without pressure to open, to extend the using field
2).Using the plate diaphragm structure opening and closing with reliale, then extent the products life
3).Can choose plastic type, explosion-proof energy-saving
Medium: Air,Water,Gas,Oil.ect.
Temperature: NBR Seal:-5℃ to 80℃
EPDM Seal:-5℃to 100℃
VITON Seal:-5℃to 120℃
Pressure: 0-10 bar
Materials: Body: Brass or SS 304/316
Seal: NBR,EPDM,VITON
Port connect: G,NPT,BSP,Flange.
Voltage: AC220V-240V,AC110V,
AC24V,DC24V,DC12V,AC380V
Optionals ： Time controller, Local indicator

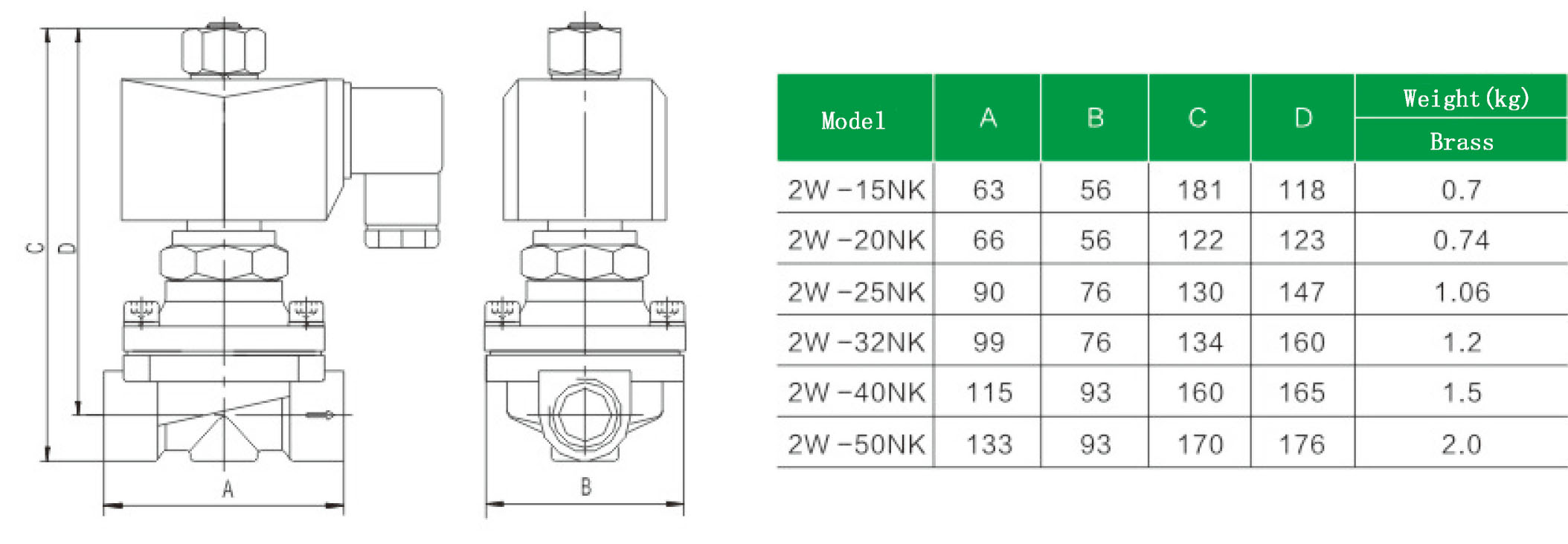

Outline Dimension
Technical Parameters
Model | 2W-10 | 2W-15 | 2W-20 | 2W-25 | 2W-32 | 2W-40 | 2W-50 |
Port Size | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
Orifice(mm) | 16 | 16 | 20 | 25 | 32 | 40 | 50 |
Cv | 4.8 | 4.8 | 7.6 | 12 | 24 | 29 | 48 |
Voltage: | AC220V-240V,AC110V,AC24V,DC24V,DC12V,AC380V |
Working
Pressure | 0-10 bar |
Working
Temperature | NBR:Below 120℃， EPDM:Below 120℃ , VITON: Below 120℃ |
