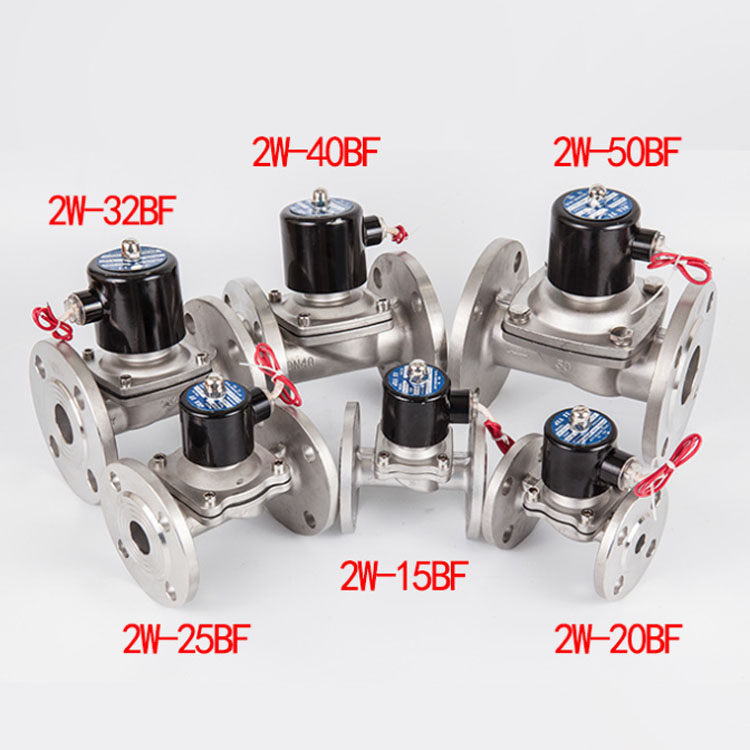

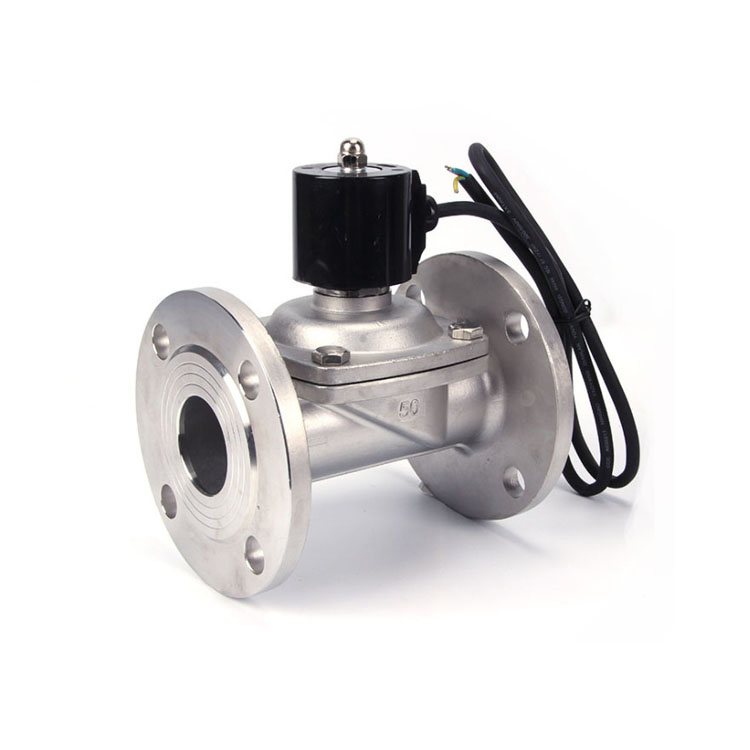

SS Water Solenoid valve 24v

Solenoid valve 2w NO

Characteristic:

1).The direct-acting type diaphragm structure without pressure to open, to extend the using field

2).Using the plate diaphragm structure opening and closing with reliale, then extent the products life

3).Can choose plastic type, explosion-proof energy-saving

Medium: Air,Water,Gas,Oil.ect.

Temperature: NBR Seal:-5℃ to 80℃

EPDM Seal:-5℃to 100℃

VITON Seal:-5℃to 120℃

Pressure: 0-10 bar

Materials: Body: Brass or SS 304/316

Seal: NBR,EPDM,VITON

Port connect: G,NPT,BSP,Flange.

Voltage: AC220V-240V,AC110V,

AC24V,DC24V,DC12V,AC380V

Optionals ： Time controller, Local indicator

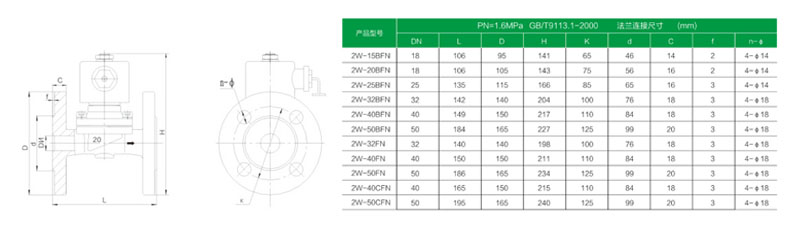

Outline Dimension

Technical Parameters
