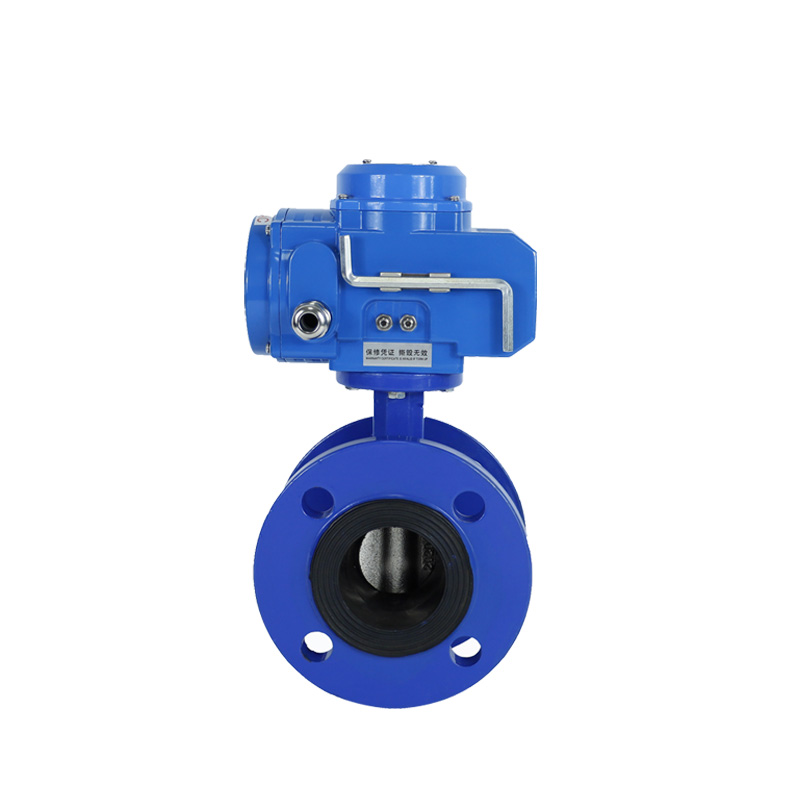

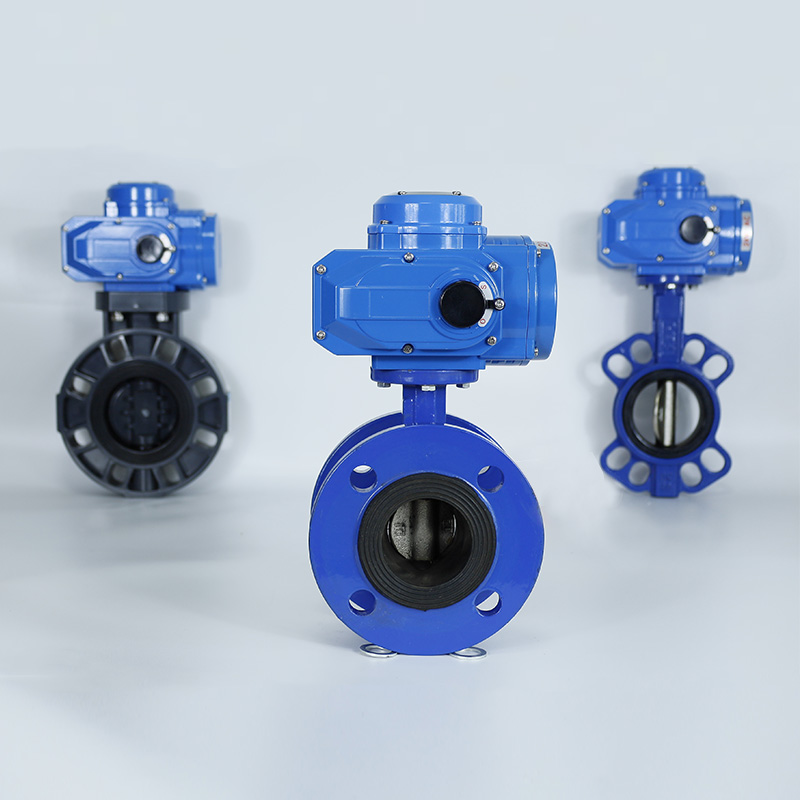

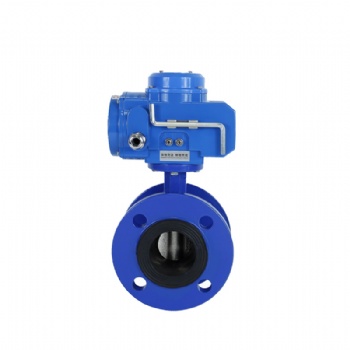

  • Electric flange cast iron butterfly valve
  • Electric flange cast iron butterfly valve
Electric flange cast iron butterfly valve Electric flange cast iron butterfly valve

Electric flange cast iron butterfly valve

 Technical Data
Specifications
Optionals
•  Quarter turn electric actuator
•  ON/OFF Type
•  Actuator working angle 90°
•  Regulation Type
•  Working torques: 30Nm to 2000 Nm.
4444-20 mA modulating positioner
•  Cycle time: 10S-95S(see chart)
1111-5 VDC modulating positioner
•  Protection Class IP65 & IP67
0000-10 VDC modulating positioner
ee(explosion-proof: Exd Ⅱ BT4 IP67 optional)
•  Display unit
Voltage Options:
Typical Applications
•  AC220V,AC24V,AC110V
•  Ball valve: DN15-300
•  DC24V,DC12V,AC380V
•  Butterfly valve: DN50-600

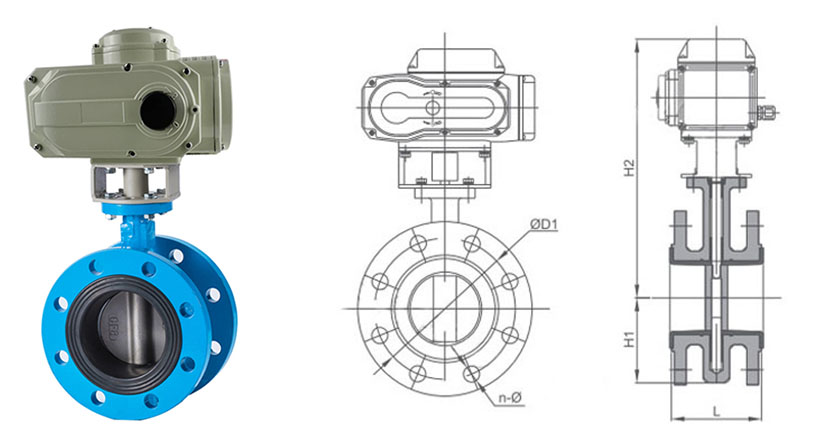

 Drawing and Dimensions
DN
inch
ANSI 150B
DIN PN10
DIN PN16
JIS 10K
H1
H2
L
øD1
øD1
n-ø
øD1
n-ø
øD1
n-ø
50
2
108
121
125
4-ø18
125
4-ø18
120
4-ø18
70
261
65
2-1/2
112
140
145
4-ø18
145
4-ø18
140
4-ø18
78
285
80
3
114
152
160
8-ø18
160
8-ø18
150
8-ø18
87
282
100
4
127
190.5
180
8-ø18
180
8-ø18
175
8-ø18
105
324
125
5
140
215.9
210
8-ø18
210
8-ø18
210
8-ø18
120
344
150
6
140
241.3
240
8-ø22
240
8-ø22
240
8-ø22
134
388
200
8
152
298.4
295
8-ø22
295
8-ø22
290
12-ø22
163
418
250
10
165
361.9
350
12-ø22
355
12-ø22
355
12-ø26
202
471
300
12.14
178
431.8
400
12-ø22
410
12-ø22
400
12-ø26
230
535
350
14
190
476.2
460
16-ø22
470
16-ø22
445
16-ø26
245
583
400
16
216
539.7
515
16-ø26
525
16-ø26
510
16-ø30
305
632
450
18
222
577.8
565
20-ø26
585
20-ø26
565
20-ø30
345
655
500
20
229
635
620
20-ø26
650
20-ø26
620
12-ø33
375
687
ON/OFF Electric Actuators
Model
03
05
10
15
30
60
100
200
Torque NM
30Nm
50Nm
100Nm
150Nm
300Nm
600Nm
1000Nm
2000Nm
Actuator speed
15S/60S
25S/50S
10S/15S/30S/60S
30S/60S
95S
95S
Working current
0.25A
0.25A
0.48A
0.68A
0.8A
1.2A
2A
2A
Motor power
6W/F
10W/F
25W/F
30W/F
40W/F
90W/F
100W/F
120W/F
Voltage
AC220V,AC24V,AC110V,DC24V,DC12V,AC380V 1Ph/3Ph
Modulating Electric Actuators
Model
03E
05E
10E
15E
30E
60E
100E
200E
Torque NM
30Nm
50Nm
100Nm
150Nm
300Nm
600Nm
1000Nm
2000Nm
Actuator speed
15S/60S
25S/50S
10S/15S/30S/60S
30S/60S
95S
95S
Working current
0.25A
0.25A
0.48A
0.68A
0.8A
1.2A
2A
2A
Motor power
6W/F
10W/F
25W/F
30W/F
40W/F
90W/F
100W/F
120W/F
Voltage
AC220V,AC24V,AC110V,DC24V,DC12V,AC380V 1Ph/3Ph
Input signal
4-20mADC,1-5VDC,0-10VDC
Output signal
4-20mADC,0-10VDC


Eight wiring types are available:
A:  Active contact, Limit position switch.
B:  Passive contact.
C:  With potentiometer
D:  Passive indication with potentiometer
E:  With Controller module
F:  DC motor Control circuit.
G: Three-phase 380VAC motor control circuit
H: Three-phase AC 380V with potentiometer
Contact us for the most recent product and technical information.
