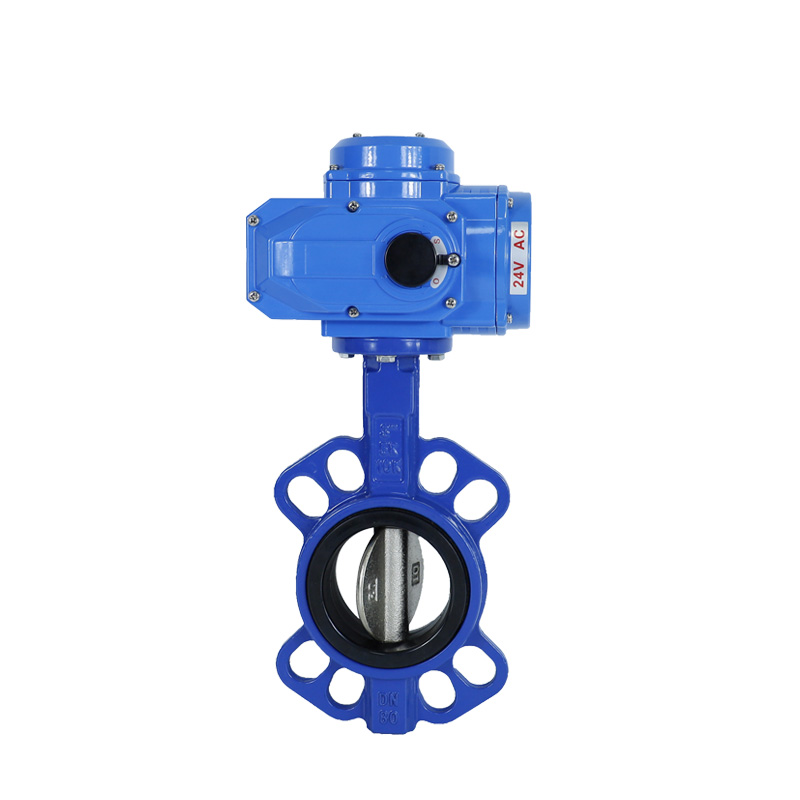

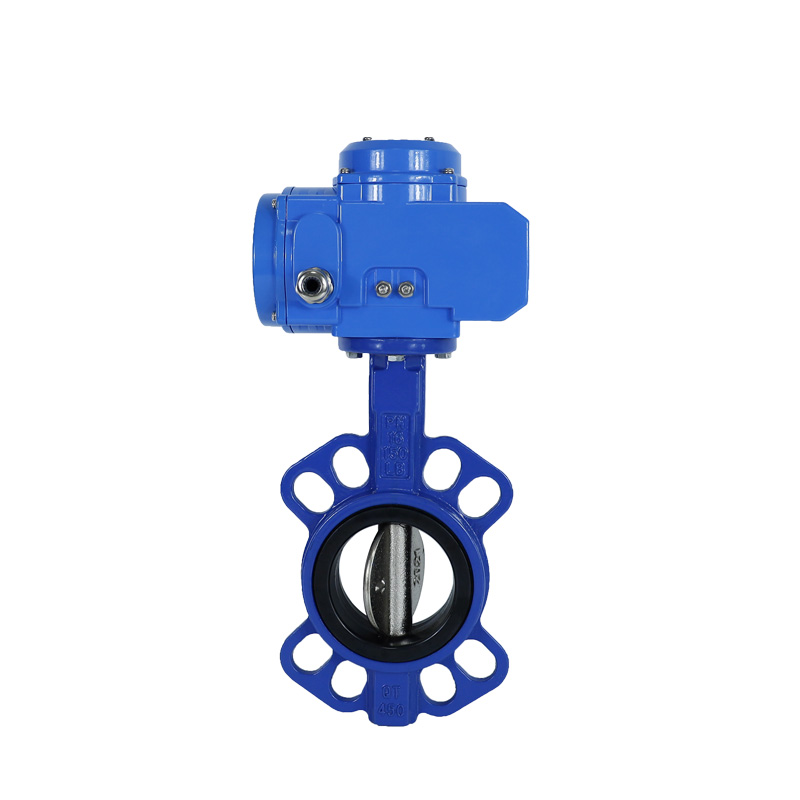

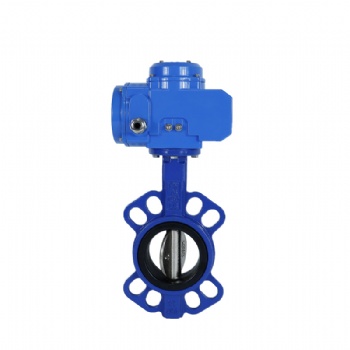

Specifications | Optionals |
• Quarter turn electric actuator | • ON/OFF Type |
• Actuator working angle 90° | • Regulation Type |
• Working torques: 30Nm to 2000 Nm. | 4444-20 mA modulating positioner |
• Cycle time: 10S-95S(see chart) | 1111-5 VDC modulating positioner |
• Protection Class IP65 & IP67 | 0000-10 VDC modulating positioner |
ee(explosion-proof: Exd Ⅱ BT4 IP67 optional) | • Display unit |
Voltage Options: | Typical Applications |
• AC220V,AC24V,AC110V | • Ball valve: DN15-300 |
• DC24V,DC12V,AC380V | • Butterfly valve: DN50-600 |

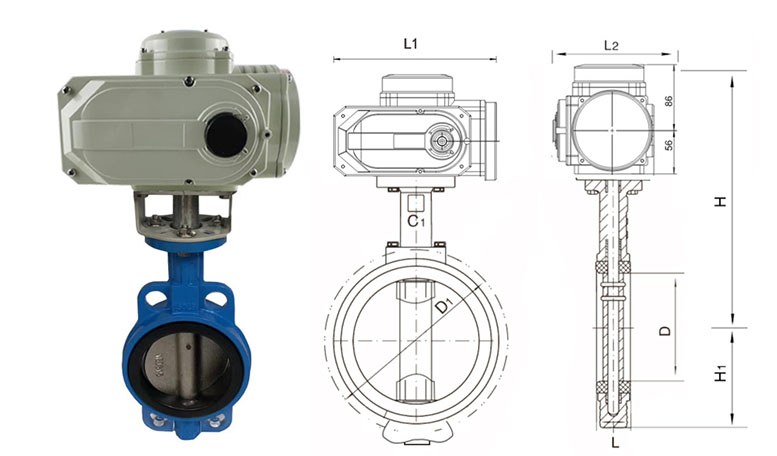

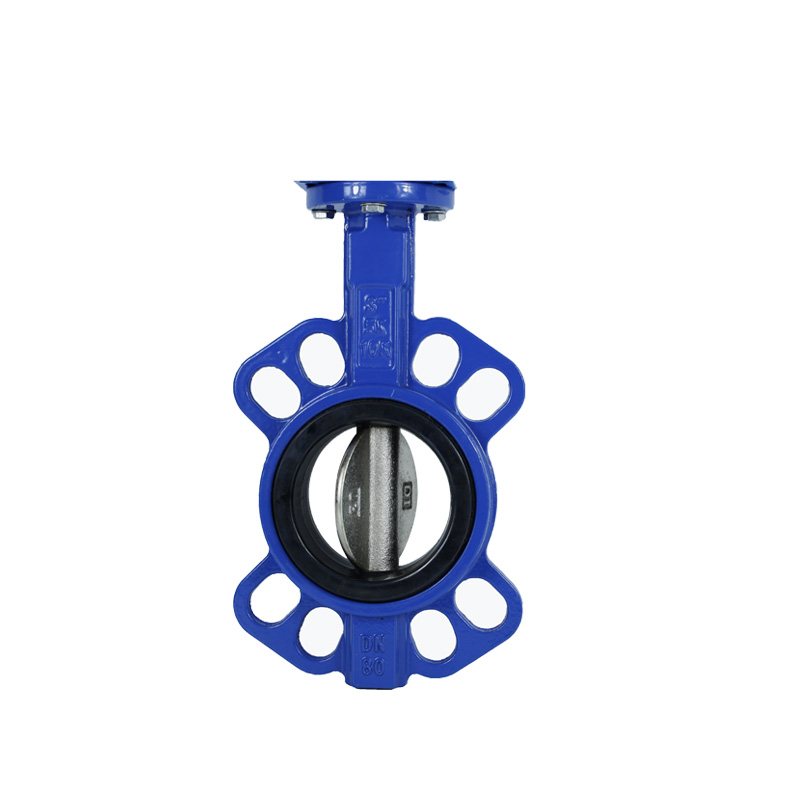

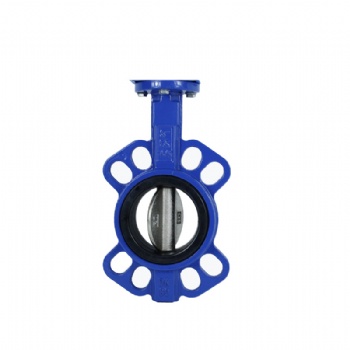

DN (mm) | L | L1 | L2 | D | D1 | n-ød | Actuator |
50 | 42 | 178 | 121 | 52.9 | 120 | 4-ø23 | 05 Actuator |
65 | 44.7 | 178 | 121 | 64.5 | 136.2 | 4-ø26.5 | 05 Actuator |
80 | 45.2 | 210 | 131 | 78.8 | 160 | 8-ø18 | 05 Actuator |
100 | 52.1 | 210 | 131 | 100.4 | 185 | 4-ø24.5 | 10 Actuator |
125 | 54.4 | 210 | 131 | 123.3 | 215 | 4-ø23 | 15 Actuator |
150 | 55.8 | 309 | 160 | 155.6 | 238 | 4-ø25 | 15 Actuator |
200 | 60.6 | 309 | 160 | 202.5 | 295 | 4-ø25 | 30 Actuator |
250 | 65.6 | 309 | 160 | 250.5 | 357 | 4-ø29 | 60 Actuator |
300 | 76.5 | 309 | 177 | 301.6 | 407 | 4-ø29 | 60 Actuator |
350 | 76.5 | 309 | 177 | 333.3 | 467 | 4-ø30 | 100 Actuator |
400 | 86.5 | 309 | 177 | 389.6 | 515 | 4-ø30 | 100 Actuator |
450 | 105.6 | 309 | 177 | 440.51 | 565 | 4-ø30 | 200 Actuator |
500 | 131.8 | 309 | 177 | 491.5 | 620 | 4-ø33 | 400 Actuator |
600 | 152 | 309 | 177 | 592.5 | 725 | 4-ø36 | 600 Actuator |
Model | 03 | 05 | 10 | 15 | 30 | 60 | 100 | 200 |
Torque NM | 30Nm | 50Nm | 100Nm | 150Nm | 300Nm | 600Nm | 1000Nm | 2000Nm |
Actuator speed | 15S/60S | 25S/50S | 10S/15S/30S/60S | 30S/60S | 95S | 95S | ||
Working current | 0.25A | 0.25A | 0.48A | 0.68A | 0.8A | 1.2A | 2A | 2A |
Motor power | 6W/F | 10W/F | 25W/F | 30W/F | 40W/F | 90W/F | 100W/F | 120W/F |
Voltage | AC220V,AC24V,AC110V,DC24V,DC12V,AC380V 1Ph/3Ph | |||||||
Model | 03E | 05E | 10E | 15E | 30E | 60E | 100E | 200E |
Torque NM | 30Nm | 50Nm | 100Nm | 150Nm | 300Nm | 600Nm | 1000Nm | 2000Nm |
Actuator speed | 15S/60S | 25S/50S | 10S/15S/30S/60S | 30S/60S | 95S | 95S | ||
Working current | 0.25A | 0.25A | 0.48A | 0.68A | 0.8A | 1.2A | 2A | 2A |
Motor power | 6W/F | 10W/F | 25W/F | 30W/F | 40W/F | 90W/F | 100W/F | 120W/F |
Voltage | AC220V,AC24V,AC110V,DC24V,DC12V,AC380V 1Ph/3Ph | |||||||
Input signal | 4-20mADC,1-5VDC,0-10VDC | |||||||
Output signal | 4-20mADC,0-10VDC | |||||||
