  • JIS ANSI wcb gate valve

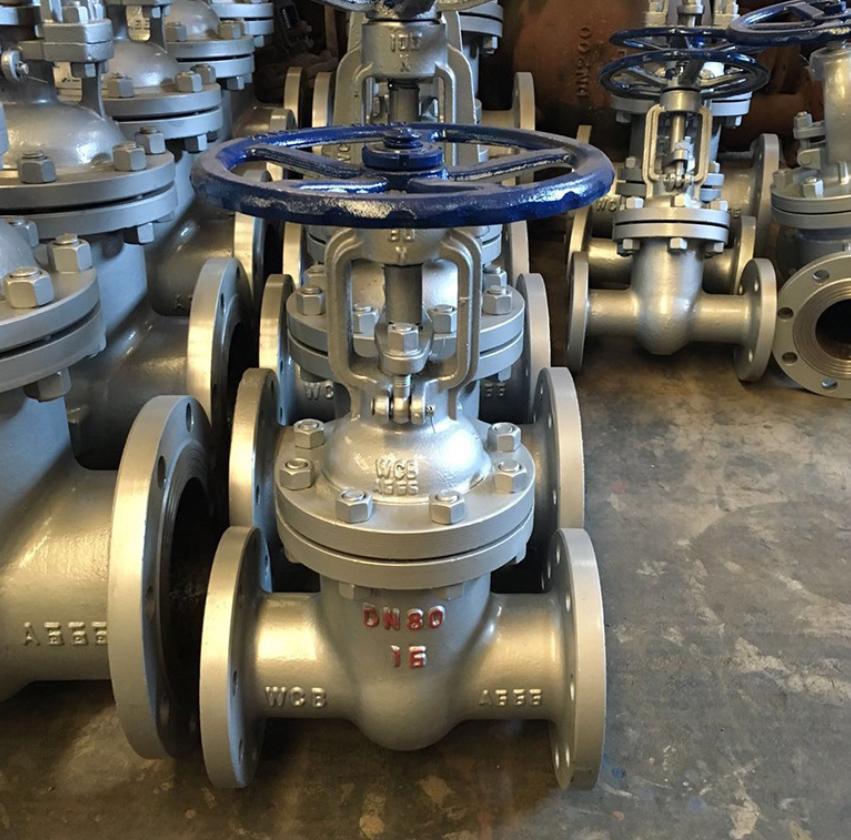

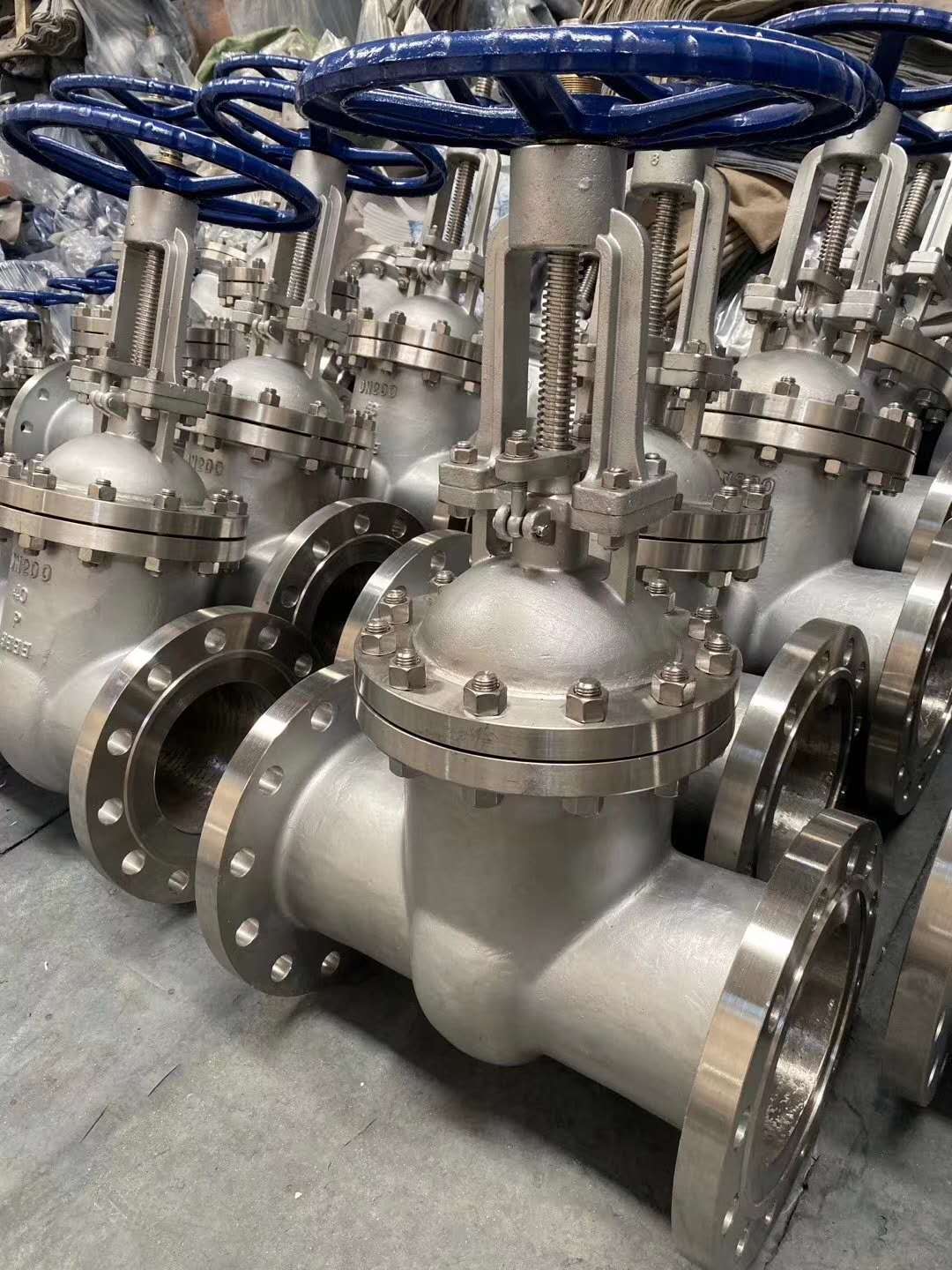

JIS ANSI wcb gate valve

Features
GB-PN16/40
*1/2"-12"(DN15-DN300)
*Working Pressure:PN16/40)
*Working Temperature:-20℃-180℃
*Rising stem
*Design:GB/T 12234
*Flange Dimension:JB/T 79.1
*Face to Face :12221
*Inspection&testing:GB/T 13927 .JB/T 9092
JIS-10K
*1/2"-12"(DN15-DN300)
*Working Pressure:10k/20k
*Working Temperature:-20℃-180℃
*Rising stem
*Design:AMSE B16.34
*Flange Dimension:JIS 2220
*Face to Face :JIS B2002
*Inspection&testing:JIS B2003
Class 150/300#
*1/2"-12"(DN15-DN300)
*Working Pressure:PN15/40)
*Working Temperature:-20℃-180℃
*Rising stem
*Design:AMSE B16.34
*Flange Dimension:AMSE B 16.5
*Face to Face :AMSE B 16.10
*Inspection&testing:API 595
DIN PN16/40
*1/2"-12"(DN15-DN300)
*Working Pressure:PN15/40)
*Working Temperature:-20℃-180℃
*Rising stem
*Design:DIN3352,EN12516-1
*Flange Dimension:DIN 2543-2545,EN1092-1 PN10-40
*Face to Face :AMSE B 16.10
*Inspection&testing:DIN3230.EN12266-1

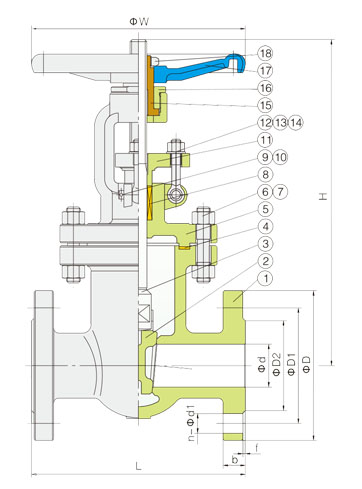

Drawing

Materials
No.
PARTS
Materials
NO.
Parts
Materials
1
BODY
WCB,CF8,CF8M
10
SPLIT PIN
SS304
2
DISC
WCB,CF8,CF8M
11
GLAND
WCB,CF8,CF8M
3
STEM
SS304,SS316
12
EYE BOLTS
SS304
4
GASKET
PTFE/304+Graphite
13
FLAT PAD
SS304
5
BONNET
WCB,CF8,CF8M
14
NUT
SS304
6
BOLT
SS304
15
STEM NUT
BRONZE
7
NUT
SS304
16
BONNET NUT
SS304
8
PACKING
PTFE
17
HANDWEEL
FCD/WCB
9
CLEVIS PIN WITH HEAD
SS304
18
ROUND NUT
SS304
Dimensions(mm)
SIZE
d
øD(PCD/BCD)
H
W
GB PN16
150LB
300LB
DIN PN16
JIS10K
JIS20K
1/2"
DN15
DN15
65
60
67
65
70
70
178
120
3/4"
DN20
DN20
75
70
83
75
75
75
194
140
1"
DN25
DN25
85
80
89
85
90
90
223
140
1-1/4"
DN32
DN32
100
89
98
100
100
100
266
160
1-1/2"
DN40
DN40
110
98
114
110
105
105
295
160
2"
DN50
DN50
125
121
127
125
120
120
336
200
2-1/2"
DN65
DN65
145
140
150
145
140
140
385
200
3"
DN80
DN80
160
152
168
160
150
160
433
250
4"
DN100
DN100
180
190
200
180
175
185
506
300
5"
DN125
DN125
210
216
235
210
210
225
612
300
6"
DN150
DN150
240
241
270
240
240
260
686
350
8"
DN200
DN200
295
298
330
295
290
305
825
350
10"
DN250
DN250
350
362
387
350
355
380
972
400
12"
DN300
DN300
400
431
450
400
400
430
1147
450
