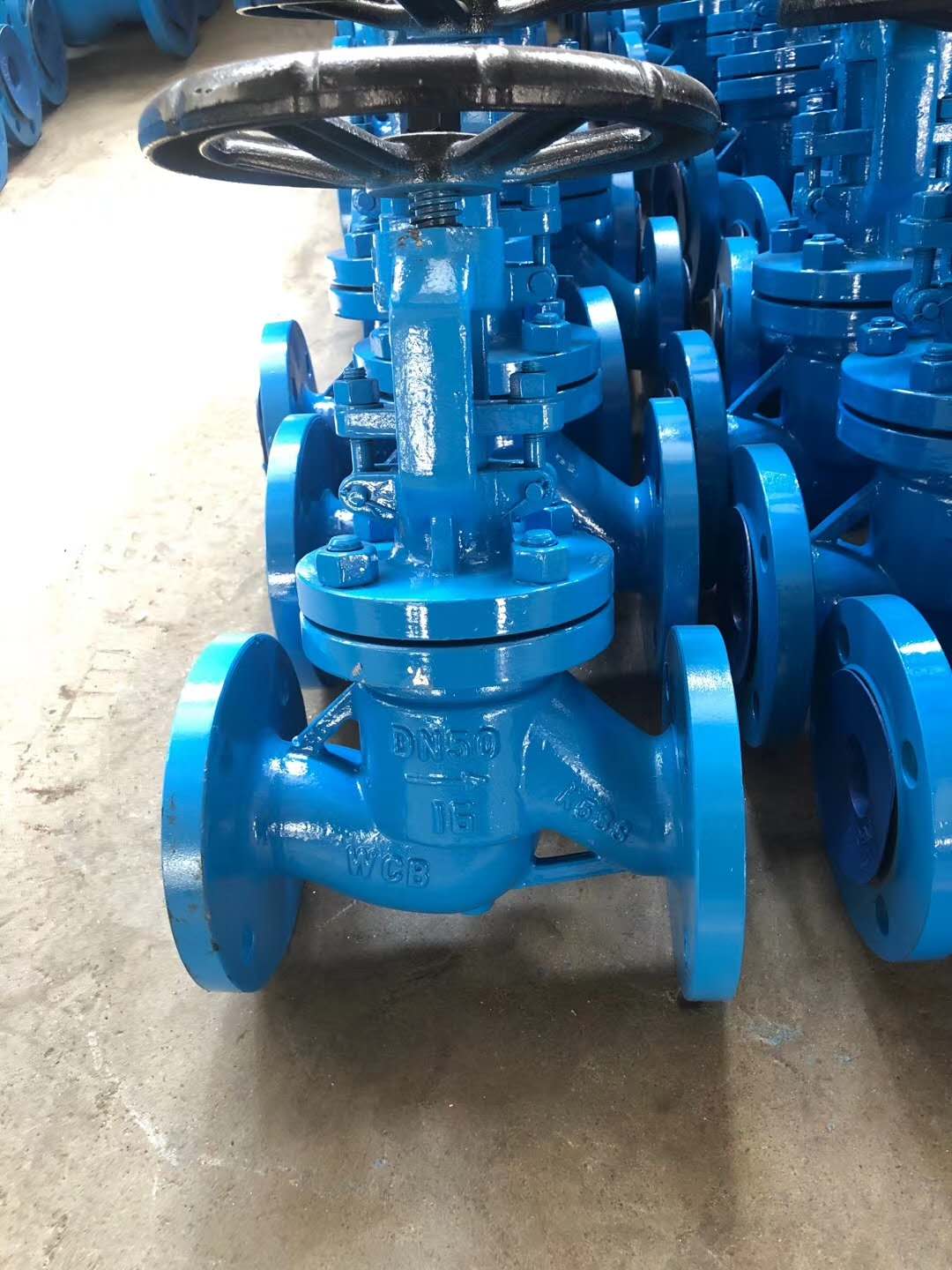

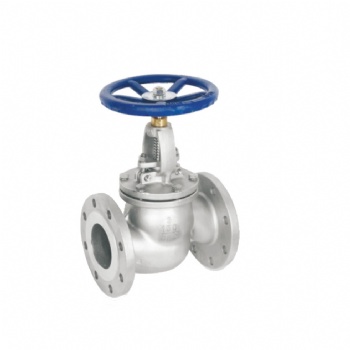

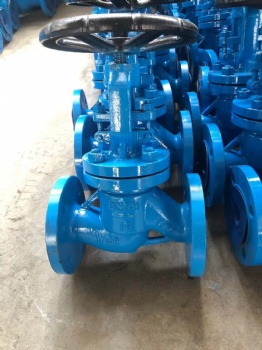

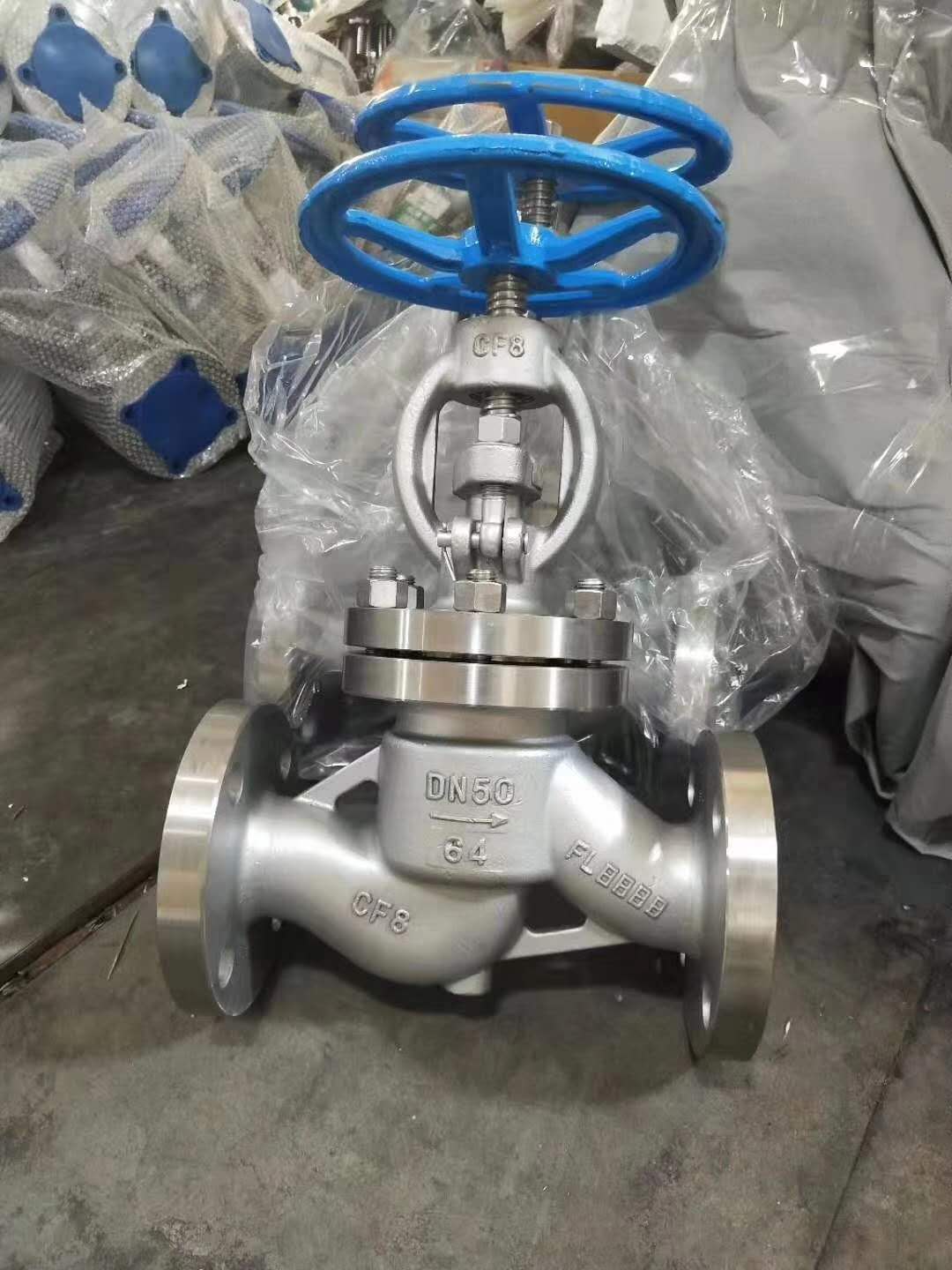

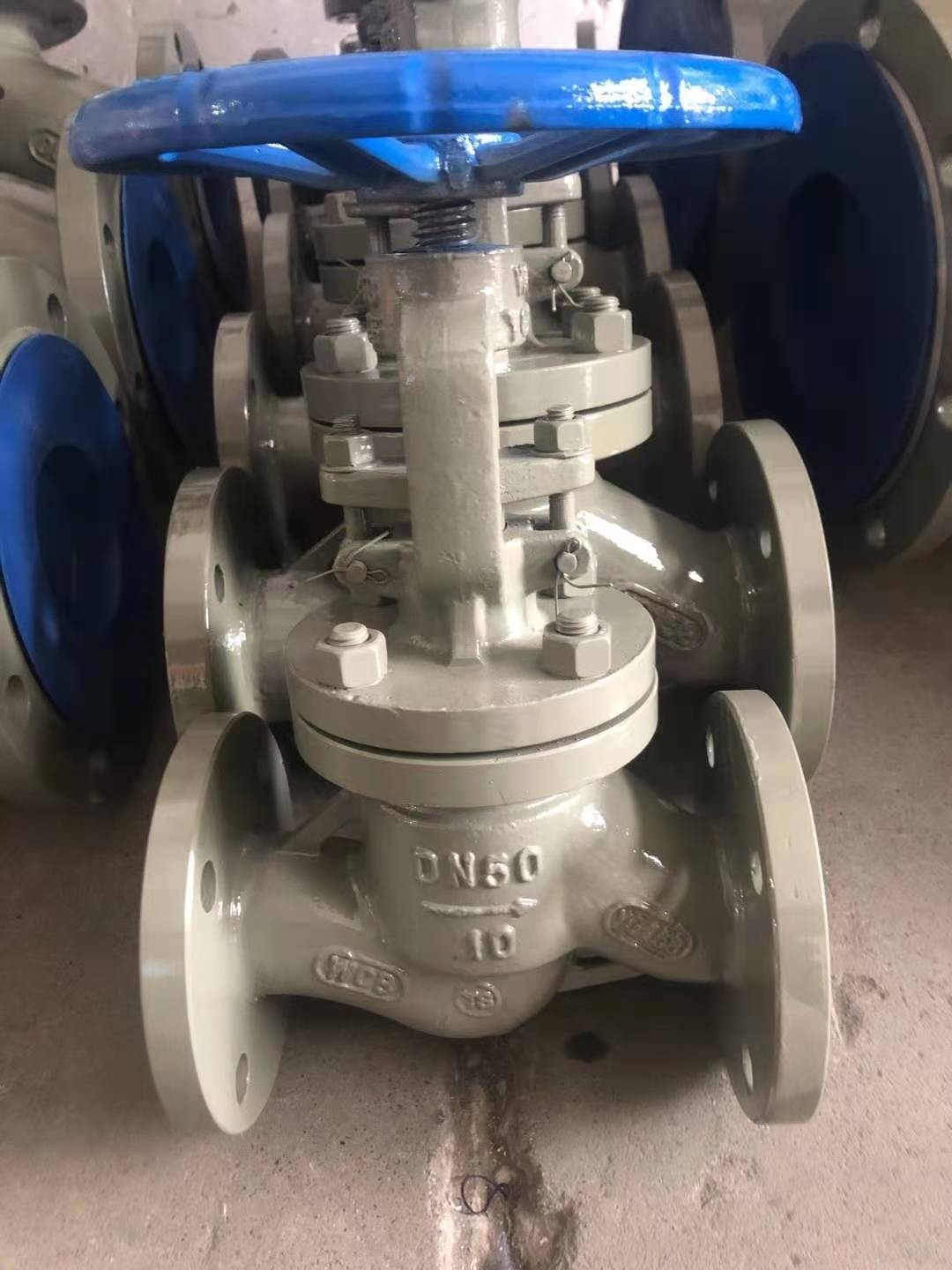

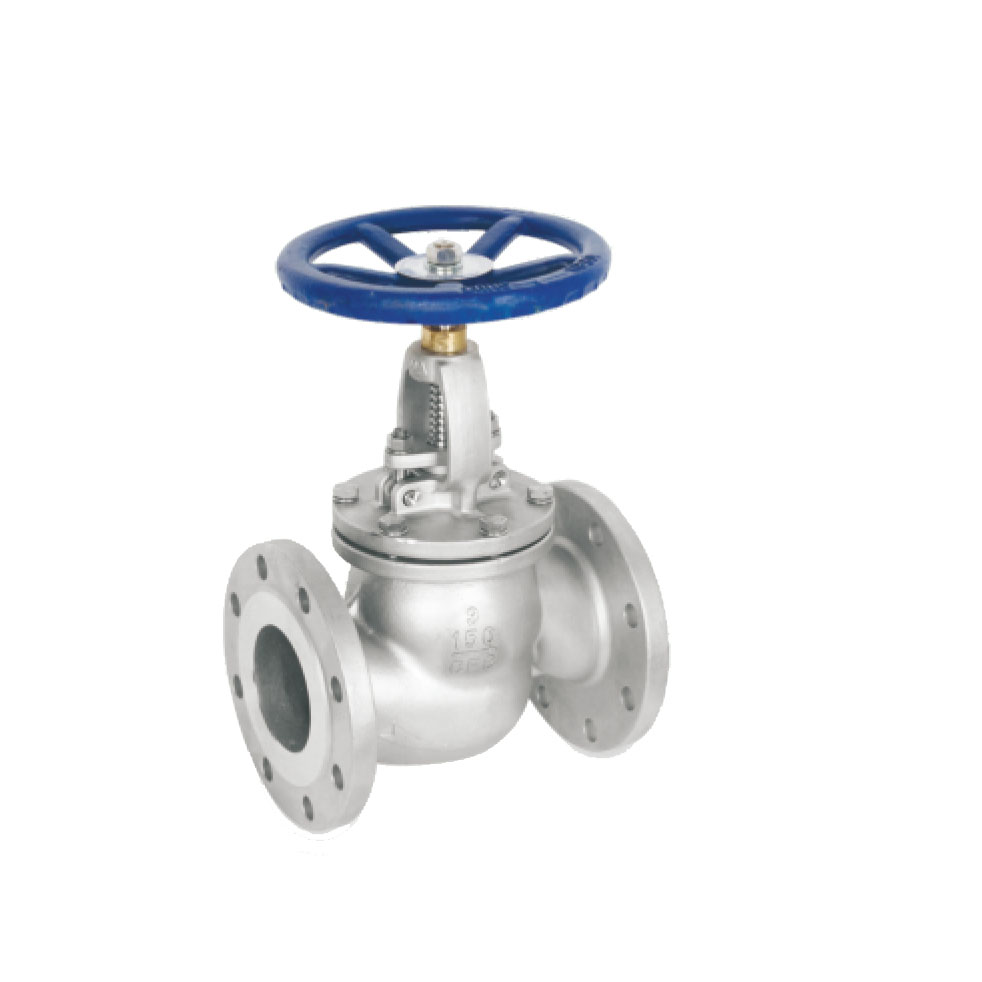

Features
GB-PN16/40
*1/2"-12"(DN15-DN300)
*Working Pressure:PN15/40)
*Working Temperature:-20℃-180℃
*Rising stem
*Design:GB/T 12235
*Flange Dimension:JB/T 79.1
*Face to Face :12221
*Inspection&testing:GB/T 13927 ,JB/T 9092
JIS-10K
*1/2"-12"(DN15-DN300)
*Working Pressure:10K/20K
*Working Temperature:-20℃-180℃
*Rising stem
*Design:AMSE B16.5
*Flange Dimension:JIS B2220
*Face to Face:JIS B2002
*Inspection&testing:JIS B2003
Class 150/300#
*1/2"-12"(DN15-DN300)
*Working Pressure:ANSI CLASS150/300
*Working Temperature:-20℃-180℃
*Rising stem
*Design:AMSE B 16.34
*Flange Dimension:AMSE B 16.5
*Face to Face :AMSE B 16.10
*Inspection&testing:API598
DIN PN16/40
*1/2"-12"(DN15-DN300)
*Working Pressure:1/2"-2"PN40,2-1/2"-12" PN16
*Working Temperature:-20℃-180℃
*Rising stem
*Design:DIN 3356,EN12516-1
*Flange Dimension:DIN2543-2545,EN1092-1 PN10-PN40
*Inspection&testing:DIN3230,EN12266-1

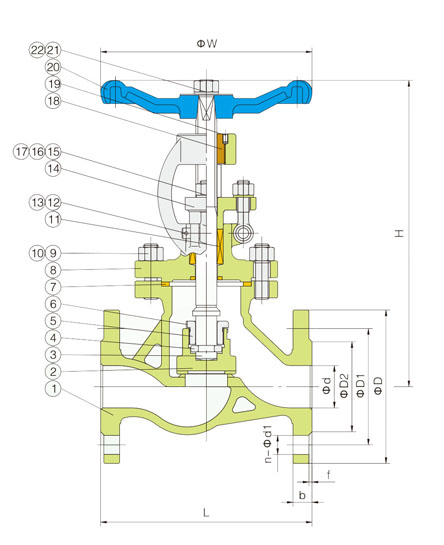

Drawing
Materials
No.
PARTS
Materials
NO.
Parts
Materials
1
BODY
WCB,CF8,CF8M
12
CLEVIS PIN WITH HEAD
SS304
2
DISC
WCB,CF8,CF8M
13
SPLIT PIN
Q235A,304
3
STEM
SS304,SS316
14
GLAND
WCB,CF8,CF8M
4
OPEN RING
SS304,SS316
15
EYE BOLTS
35CrMo,304
5
DISC NUT
SS304,SS316
16
FLAT PAD
65Mn,304
6
THRUST WASHER
Q235A,304,316
17
NUT
SS304
7
GASKET
PTFE/304+Graphite
18
STEM NUT
Bronze
8
BONNET
WCB,CF8,CF8M
19
SCREWS
WCB,304
9
BOLT
35CrMo,304
20
HANDWHEEL
FCD/WCB
10
NUT
304
21
FLAT PAD
304
11
PACKING
PTFE
22
NUT
304
Dimensions(mm)
SIZE
d
øD(PCD/BCD)
H
W
GB PN16
150LB
300LB
DIN PN16
JIS10K
JIS20K
1/2"
DN15
DN15
65
60
67
65
70
70
178
120
3/4"
DN20
DN20
75
70
83
75
75
75
182
140
1"
DN25
DN25
85
80
89
85
90
90
201
140
1-1/4"
DN32
DN32
100
89
98
100
100
100
238
160
1-1/2"
DN40
DN40
110
98
114
110
105
105
249
160
2"
DN50
DN50
125
121
127
125
120
120
263
200
2-1/2"
DN65
DN65
145
140
150
145
140
140
312
200
3"
DN80
DN80
160
152
168
160
150
160
336
250
4"
DN100
DN100
180
190
200
180
175
185
388
300
5"
DN125
DN125
210
216
235
210
210
225
467
350
6"
DN150
DN150
240
241
270
240
240
260
529
400
8"
DN200
DN200
295
298
330
295
290
305
667
450
10"
DN250
DN250
350
362
387
350
355
380
825
500
12"
DN300
DN300
400
431
450
400
400
430
947
600
