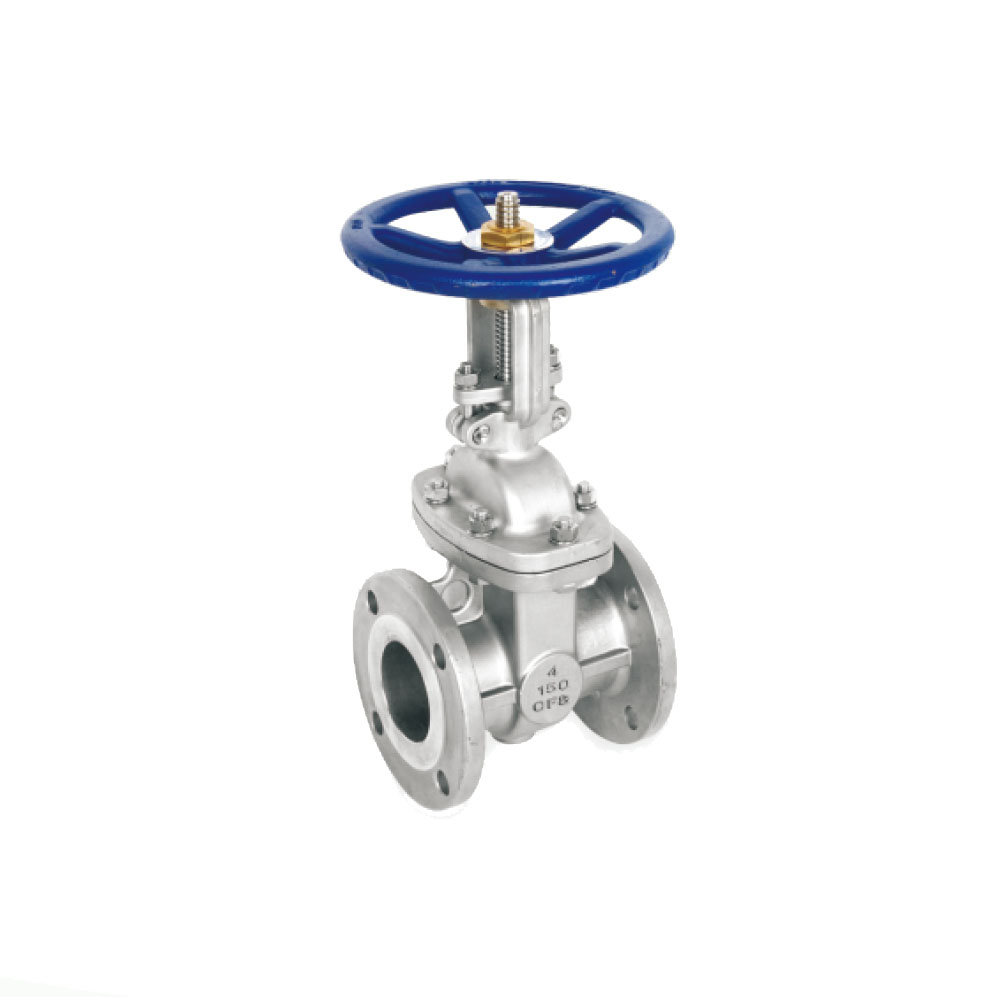

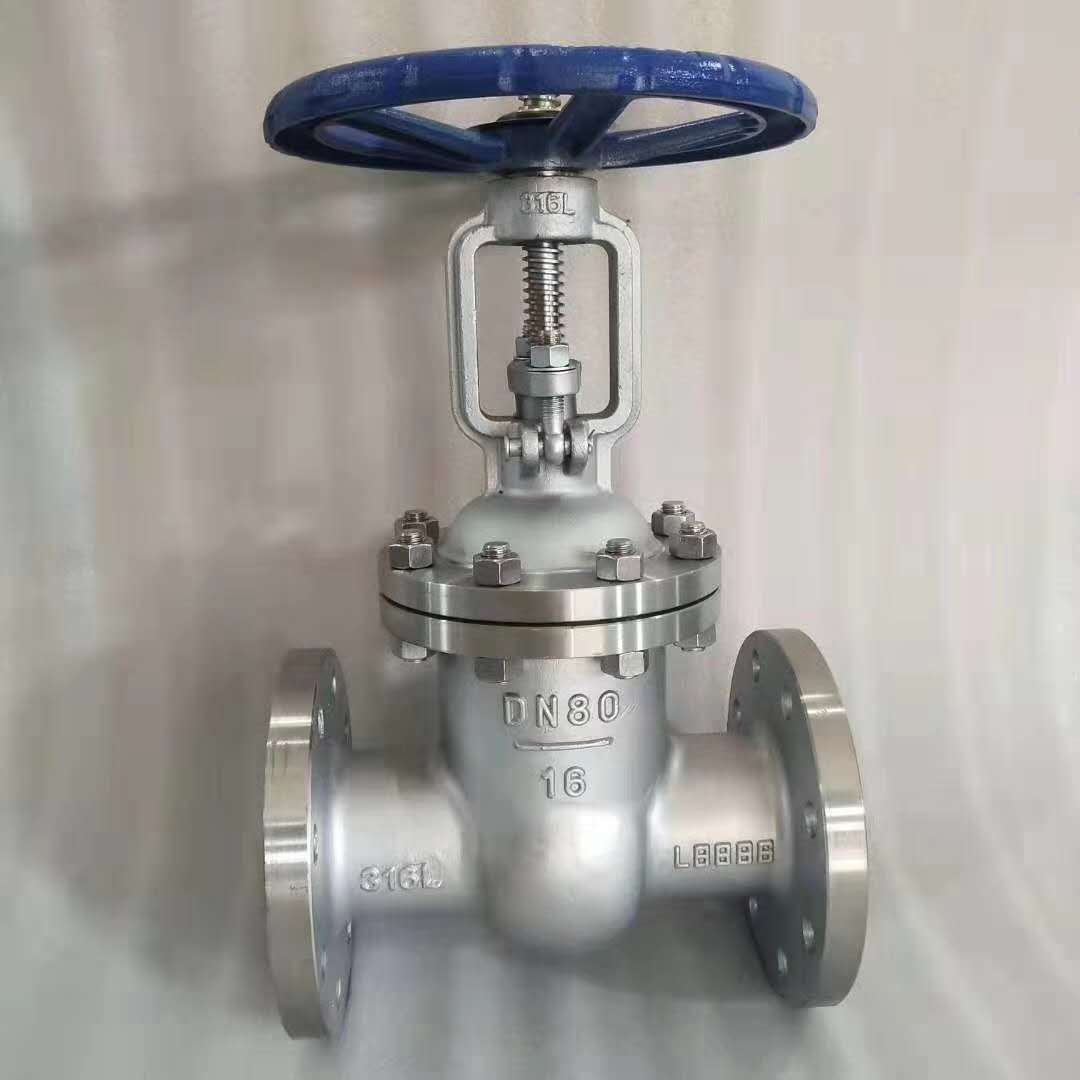

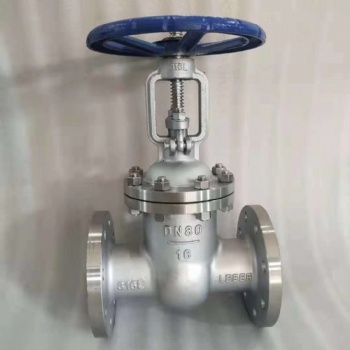

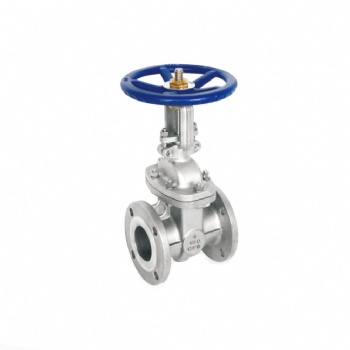

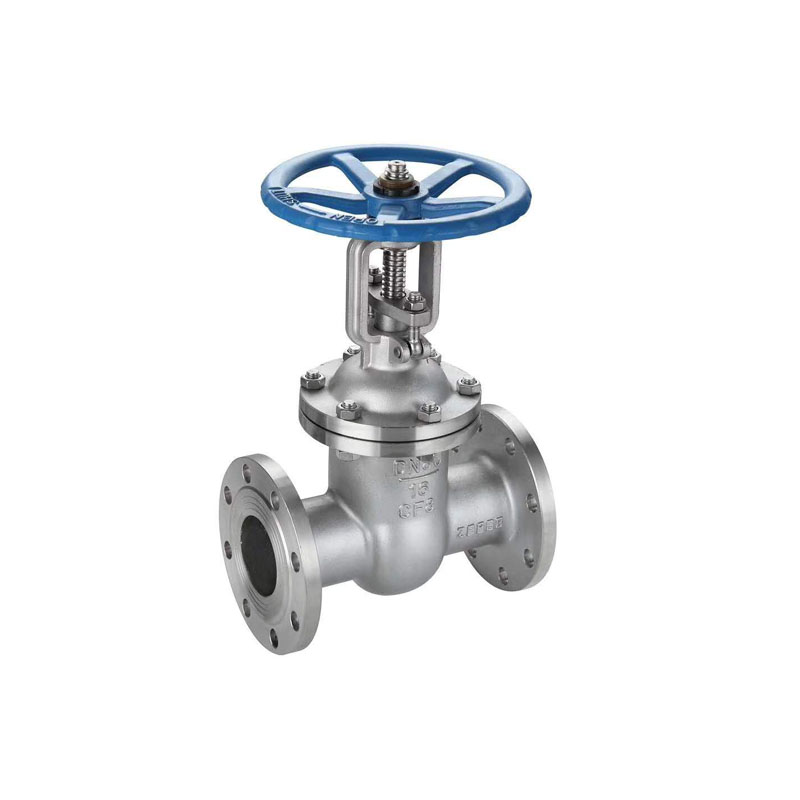

GB-PN16/40 *1/2"-12"(DN15-DN300) *Working Pressure:PN16/40) *Working Temperature:-20℃-180℃ *Rising stem *Design:GB/T 12234 *Flange Dimension:JB/T 79.1 *Face to Face :12221 *Inspection&testing:GB/T 13927 .JB/T 9092 | JIS-10K *1/2"-12"(DN15-DN300) *Working Pressure:10k/20k *Working Temperature:-20℃-180℃ *Rising stem *Design:AMSE B16.34 *Flange Dimension:JIS 2220 *Face to Face :JIS B2002 *Inspection&testing:JIS B2003 |
Class 150/300# *1/2"-12"(DN15-DN300) *Working Pressure:PN15/40) *Working Temperature:-20℃-180℃ *Rising stem *Design:AMSE B16.34 *Flange Dimension:AMSE B 16.5 *Face to Face :AMSE B 16.10 *Inspection&testing:API 595 | DIN PN16/40 *1/2"-12"(DN15-DN300) *Working Pressure:PN15/40) *Working Temperature:-20℃-180℃ *Rising stem *Design:DIN3352,EN12516-1 *Flange Dimension:DIN 2543-2545,EN1092-1 PN10-40 *Face to Face :AMSE B 16.10 *Inspection&testing:DIN3230.EN12266-1 |
No. | PARTS | Materials | NO. | Parts | Materials |
1 | BODY | WCB,CF8,CF8M | 10 | SPLIT PIN | SS304 |
2 | DISC | WCB,CF8,CF8M | 11 | GLAND | WCB,CF8,CF8M |
3 | STEM | SS304,SS316 | 12 | EYE BOLTS | SS304 |
4 | GASKET | PTFE/304+Graphite | 13 | FLAT PAD | SS304 |
5 | BONNET | WCB,CF8,CF8M | 14 | NUT | SS304 |
6 | BOLT | SS304 | 15 | STEM NUT | BRONZE |
7 | NUT | SS304 | 16 | BONNET NUT | SS304 |
8 | PACKING | PTFE | 17 | HANDWEEL | FCD/WCB |
9 | CLEVIS PIN WITH HEAD | SS304 | 18 | ROUND NUT | SS304 |
SIZE | d | øD(PCD/BCD) | H | W | ||||||
GB PN16 | 150LB | 300LB | DIN PN16 | JIS10K | JIS20K | |||||
1/2" | DN15 | DN15 | 65 | 60 | 67 | 65 | 70 | 70 | 178 | 120 |
3/4" | DN20 | DN20 | 75 | 70 | 83 | 75 | 75 | 75 | 194 | 140 |
1" | DN25 | DN25 | 85 | 80 | 89 | 85 | 90 | 90 | 223 | 140 |
1-1/4" | DN32 | DN32 | 100 | 89 | 98 | 100 | 100 | 100 | 266 | 160 |
1-1/2" | DN40 | DN40 | 110 | 98 | 114 | 110 | 105 | 105 | 295 | 160 |
2" | DN50 | DN50 | 125 | 121 | 127 | 125 | 120 | 120 | 336 | 200 |
2-1/2" | DN65 | DN65 | 145 | 140 | 150 | 145 | 140 | 140 | 385 | 200 |
3" | DN80 | DN80 | 160 | 152 | 168 | 160 | 150 | 160 | 433 | 250 |
4" | DN100 | DN100 | 180 | 190 | 200 | 180 | 175 | 185 | 506 | 300 |
5" | DN125 | DN125 | 210 | 216 | 235 | 210 | 210 | 225 | 612 | 300 |
6" | DN150 | DN150 | 240 | 241 | 270 | 240 | 240 | 260 | 686 | 350 |
8" | DN200 | DN200 | 295 | 298 | 330 | 295 | 290 | 305 | 825 | 350 |
10" | DN250 | DN250 | 350 | 362 | 387 | 350 | 355 | 380 | 972 | 400 |
12" | DN300 | DN300 | 400 | 431 | 450 | 400 | 400 | 430 | 1147 | 450 |
