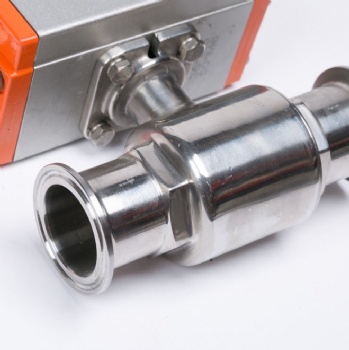

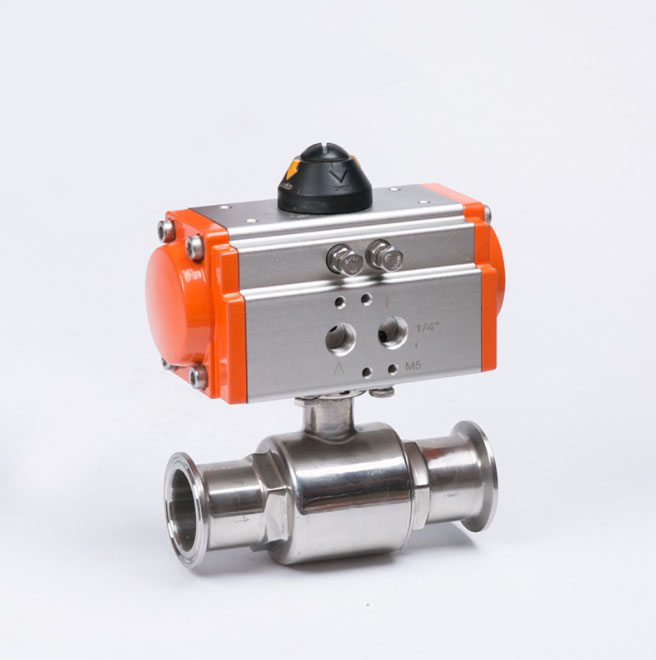

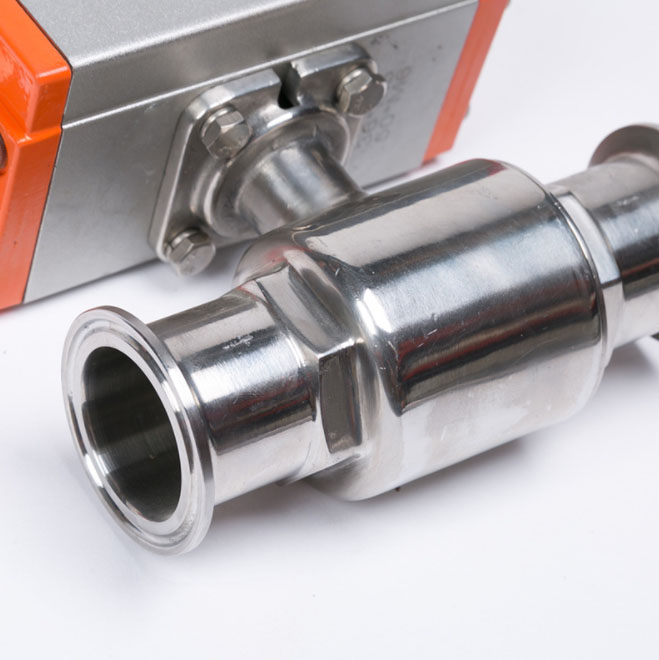

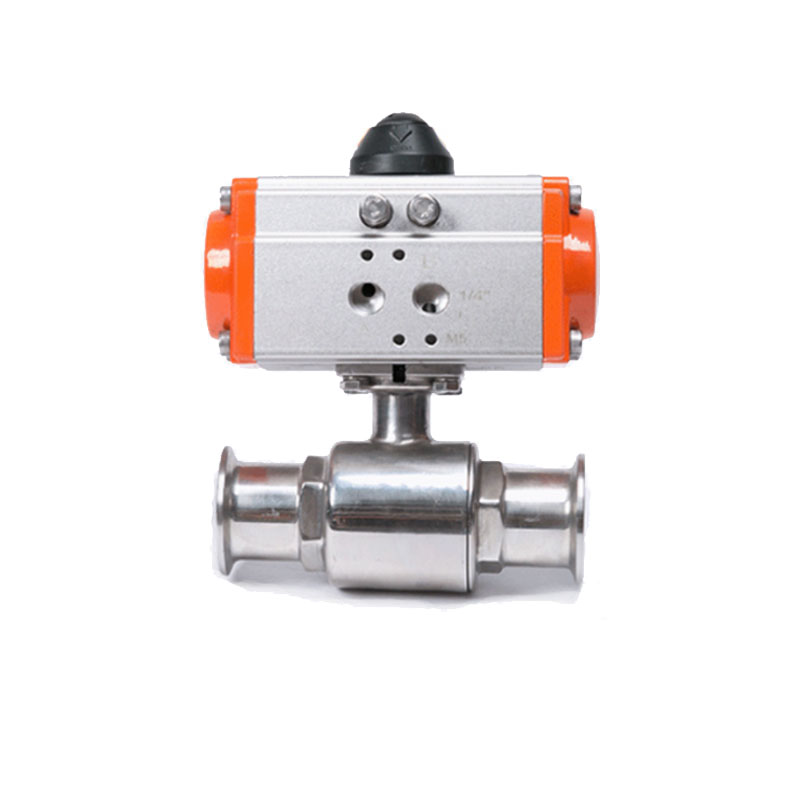

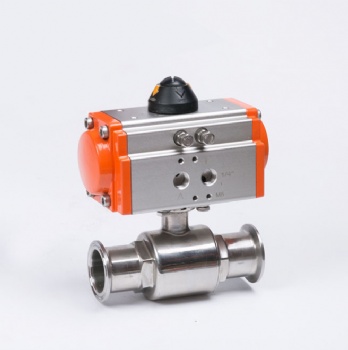

No. | Description | QTY | Meterial | Protection | Optional Meterial |
1 | Indicator screw | 1 | Plastic | ||
2 | Indicator | 1 | Plastic | ||
3 | Spring clip | 1 | Stainless Steel | ||
4 | Thrust washer | 1 | Stainless Steel | ||
5 | Outside washer | 1 | Engineering Plastics | ||
6 | Body | 1 | Extruded alluminum ally | Hard anodized etc | |
7 | Bearing(pinoion top) | 1 | Engineering Plastics | ||
8 | Inside washer | 1 | Engineering Plastics | ||
9 | O-ring(pinoion top) | 1 | NBR | Viton/Silicone | |
10 | Cam | 1 | Alloy steel | ||
11 | Pinion | 1 | Alloy steel | Nickel plated | Stainless Steel |
12 | O-ring(pinoion bottom) | 1 | Engineering Plastics | ||
13 | Bearing(pinoion bottom) | 1 | NBR | Viton/Silicone | |
14 | Plug | 2 | NBY | Viton/Silicone | |
15 | O-ring(Adjust screw) | 2 | NBY | Viton/Silicone | |
16 | Adjusting screw washer | 2 | Stainless Steel | ||
17 | Nut(Adjust screw) | 2 | Stainless Steel | ||
18 | Adjust screw | 2 | Stainless Steel | ||
19 | Piston | 2 | Cast alluminum/casting | Anodized/Zinc galvanized | Stainless Steel |
20 | Guide(Piston) | 2 | Engineering Plastics | ||
21 | Bearing(Piston) | 2 | Engineering Plastics | ||
22 | O-ring(Piston) | 2 | NBY | Viton/Silicone | |
23 | Spring | 0-12 | Sping steel | Dip coating | |
24 | O-ring(End cap) | 2 | NBY | Viton/Silicone | |
25 | End cap | 2 | Cast alluminum | Powder polyster painted etc | |
26 | Cap screw | 8 | Stainless Steel | ||
27 | Stop screw | 2 | Stainless Steel | ||
28 | Nut(Stop screw) | 2 | Stainless Steel |
Size: | DN15-DN100 | Pneumatic Actuator: | Double acting&Single acting |
Temperature: | ≤120℃ | Limit switch: | ON-OFF (Two-way& Three-way) |
Medium: | food,pharmacy,cosmetics,clean steam,alcohol, beverage, etc. | Solenoid valve: | AC220V,AC24V,DC24V,DC12V AC380V |
Working Pressure: | PN16 | Filters: | 0.1-1.6(mpa) |
Connections: | clamp |

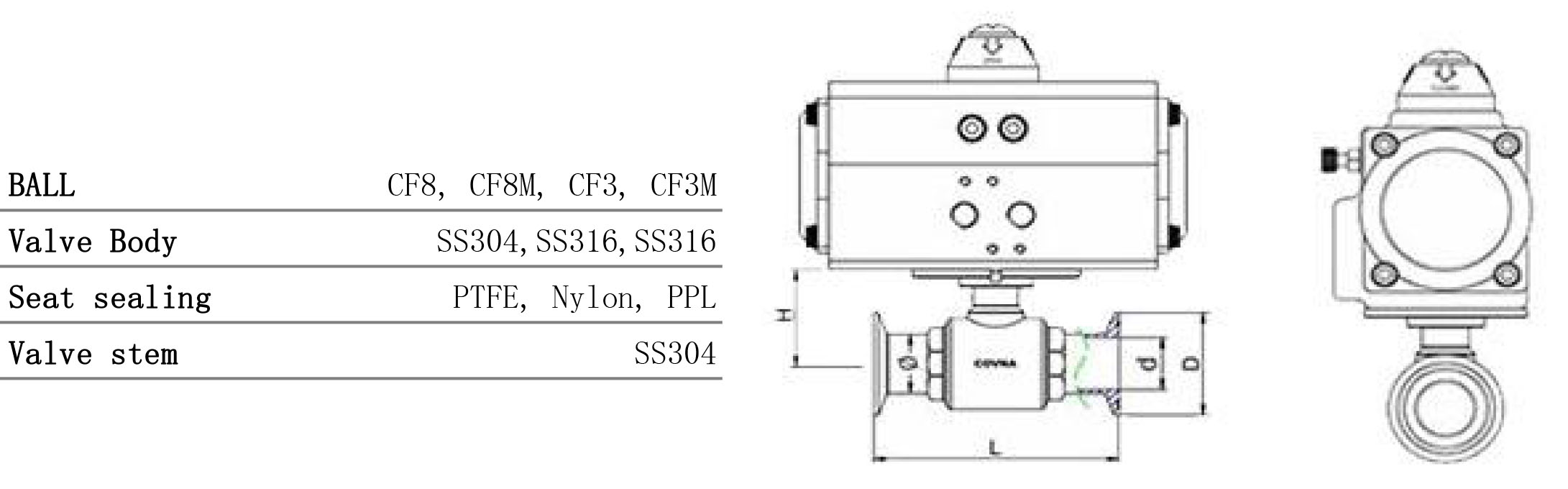

SIZE | φ | d | D | L | H | Actuator | |
in | φ | ||||||
1/2" | φ12.7 | 16 | 25.4 | 75 | 27 | AT52 | |
3/4" | φ19 | 19.05 | 16 | 50.5 | 103 | 38 | AT52 |
1" | φ25 | 25.4 | 22 | 50.5 | 116 | 46.5 | AT52 |
1-1/4" | φ32 | 31.8 | 29 | 50.5 | 122.5 | 49 | AT52 |
1-1/2" | φ38 | 38.1 | 35 | 50.5 | 136 | 53.5 | AT63 |
2" | φ51 | 50.8 | 48 | 64 | 161 | 68 | AT75 |
2-1/2" | φ63 | 63.5 | 59 | 77.5 | 178 | 68.5 | AT83 |
3" | φ76 | 76.5 | 72 | 91 | 200 | 78 | AT92 |
4" | φ102 | 101.6 | 97 | 119 | 249 | 103.5 | AT125 |
