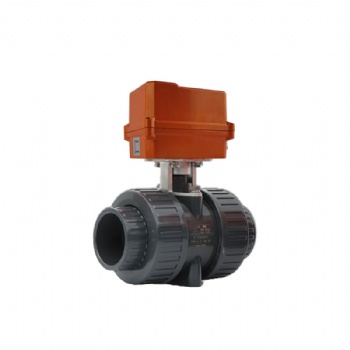

  • UPVC electric motor valve

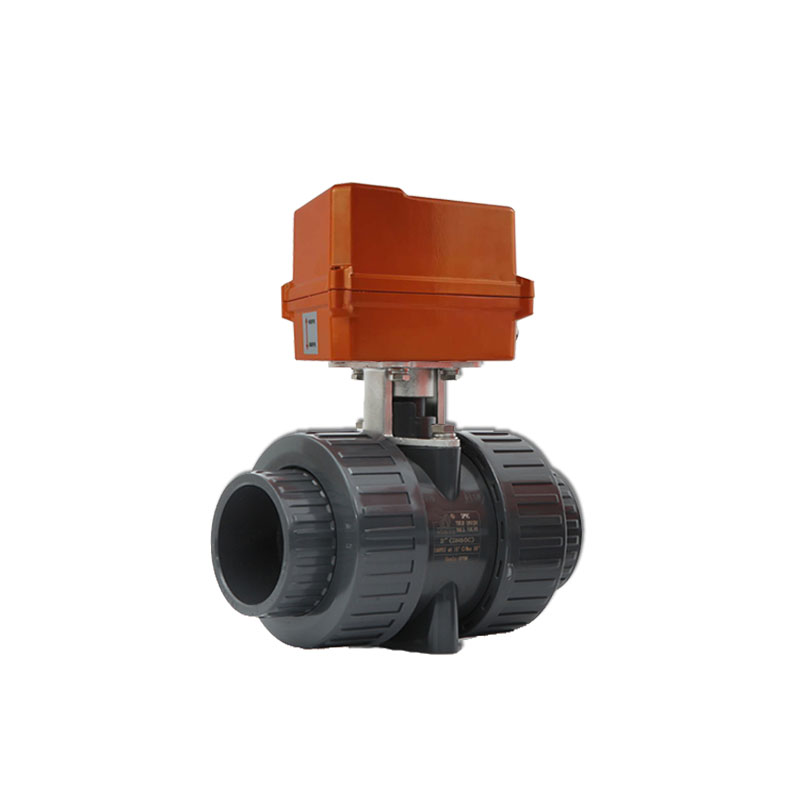

  • UPVC electric motor valve

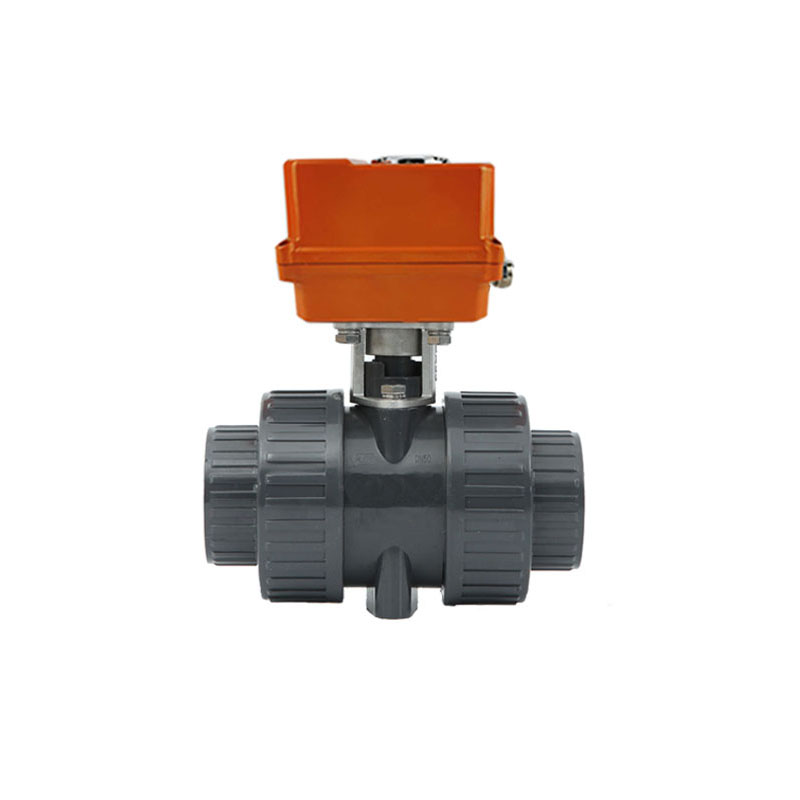

  • UPVC electric motor valve
UPVC electric motor valve UPVC electric motor valve UPVC electric motor valve

UPVC electric motor valve

 Technical Data
Specifications
Optionals

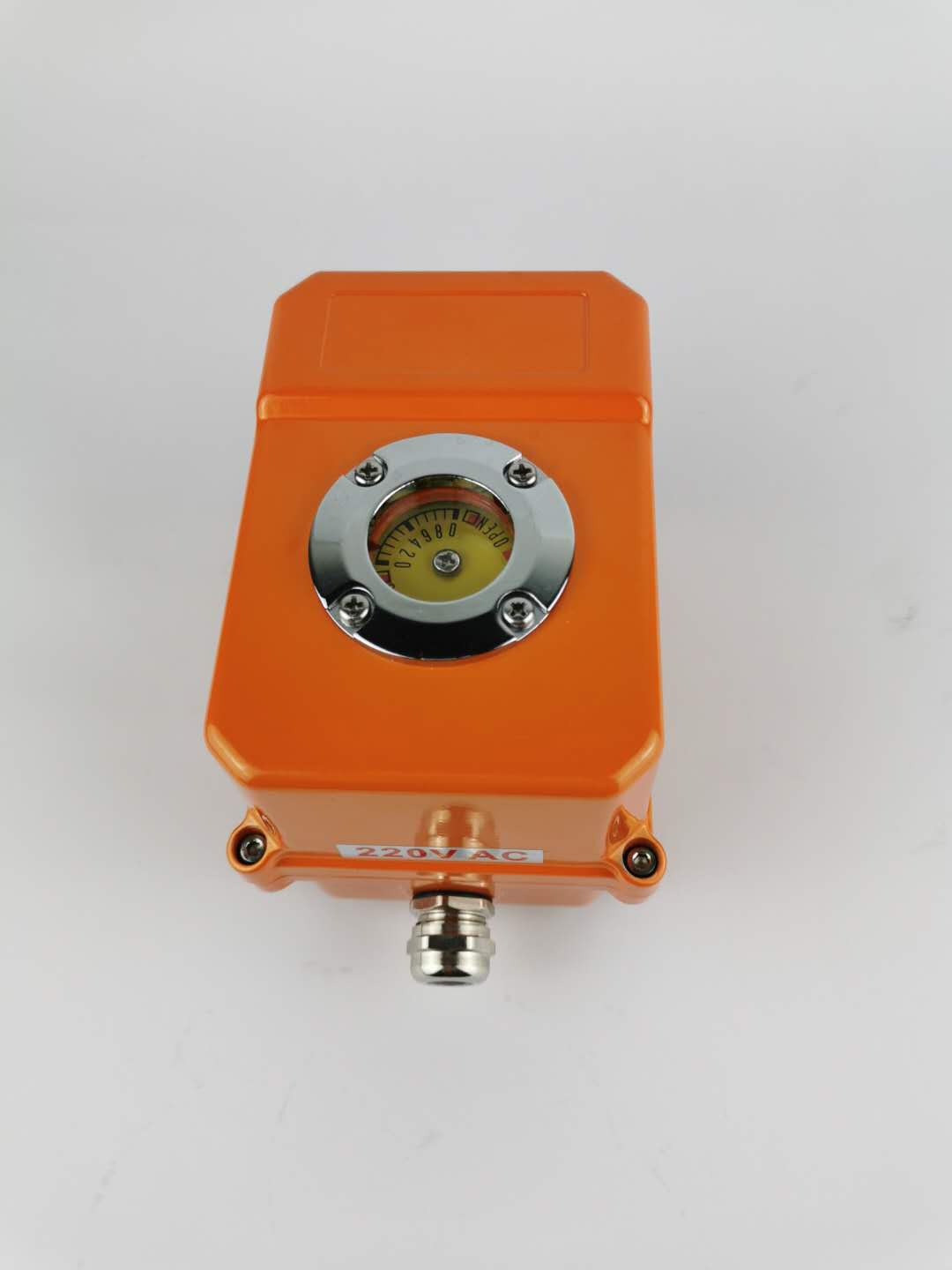

•  Quarter turn electric actuator
•  ON/OFF Type
•  Actuator working angle 90°
•  Regulation Type
•  Working torques: 30Nm to 2000 Nm.
4444-20 mA modulating positioner
•  Cycle time: 10S-95S(see chart)
1111-5 VDC modulating positioner
•  Protection Class IP65 & IP67
0000-10 VDC modulating positioner
ee(explosion-proof: Exd Ⅱ BT4 IP67 optional)
•  Display unit
Voltage Options:
Typical Applications
•  AC220V,AC24V,AC110V
•  Ball valve: DN15-300
•  DC24V,DC12V,AC380V
•  Butterfly valve: DN50-600

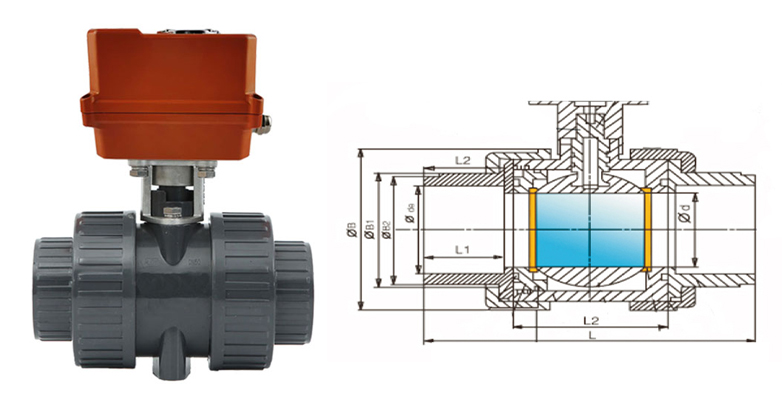

 Drawing and Dimensions
DN
inch
DIN
ANSI
JIS
Thd/in
(BSPT)
L
L2
B1
B2
15
1/2
ø20
ø21.3
22

112
47
34
32
20
3/4
ø25
ø26.7
26
14
131.1
54
40
37
25
1
ø32
ø33.4
32
14
142.6
62
47
45
32
1-1/4
ø40
ø42.2
38
11.5
167
69
57
55
40
1-1/2
ø50
ø48.3
48
11.5
174.7
80
64
61
50
2
ø63
ø60.3
60
11.5
204
85
77
75
65
2-1/2
ø75
ø73
76
11.5
275
124
97
90
80
3
ø90
ø88.9
89
8
299.7
124
116
112
100
4
ø110
ø114.3
114
8
325.5
139
137
131
125
5
ø140
ø141.3
140





150
6
ø160
ø168.3
165





200
10
ø225
ø219
216





ON/OFF Electric Actuators
Model
03
05
10
15
30
60
100
200
Torque NM
30Nm
50Nm
100Nm
150Nm
300Nm
600Nm
1000Nm
2000Nm
Actuator speed
15S/60S
25S/50S
10S/15S/30S/60S
30S/60S
95S
95S
Working current
0.25A
0.25A
0.48A
0.68A
0.8A
1.2A
2A
2A
Motor power
6W/F
10W/F
25W/F
30W/F
40W/F
90W/F
100W/F
120W/F
Voltage
AC220V,AC24V,AC110V,DC24V,DC12V,AC380V 1Ph/3Ph
Modulating Electric Actuators
Model
03E
05E
10E
15E
30E
60E
100E
200E
Torque NM
30Nm
50Nm
100Nm
150Nm
300Nm
600Nm
1000Nm
2000Nm
Actuator speed
15S/60S
25S/50S
10S/15S/30S/60S
30S/60S
95S
95S
Working current
0.25A
0.25A
0.48A
0.68A
0.8A
1.2A
2A
2A
Motor power
6W/F
10W/F
25W/F
30W/F
40W/F
90W/F
100W/F
120W/F
Voltage
AC220V,AC24V,AC110V,DC24V,DC12V,AC380V 1Ph/3Ph
Input signal
4-20mADC,1-5VDC,0-10VDC
Output signal
4-20mADC,0-10VDC

Eight wiring types are available:
A: with limit position switch style (standard)
B: with neutral position switch style ( passive contact)
C: with potentiometer style
D: both potentiometer and neutral position switch style
E: with control module style ( Modulating Applications)
F: DC motor control circuit style
G: Three-phase current 380V control circuits style
H: Three-phase current 380V, both neutral position switch and potentiometer style
Contact us for the most recent product and technical information.
