Mini PVC electric butterfly valve Mini PVC electric butterfly valve

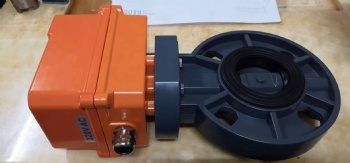

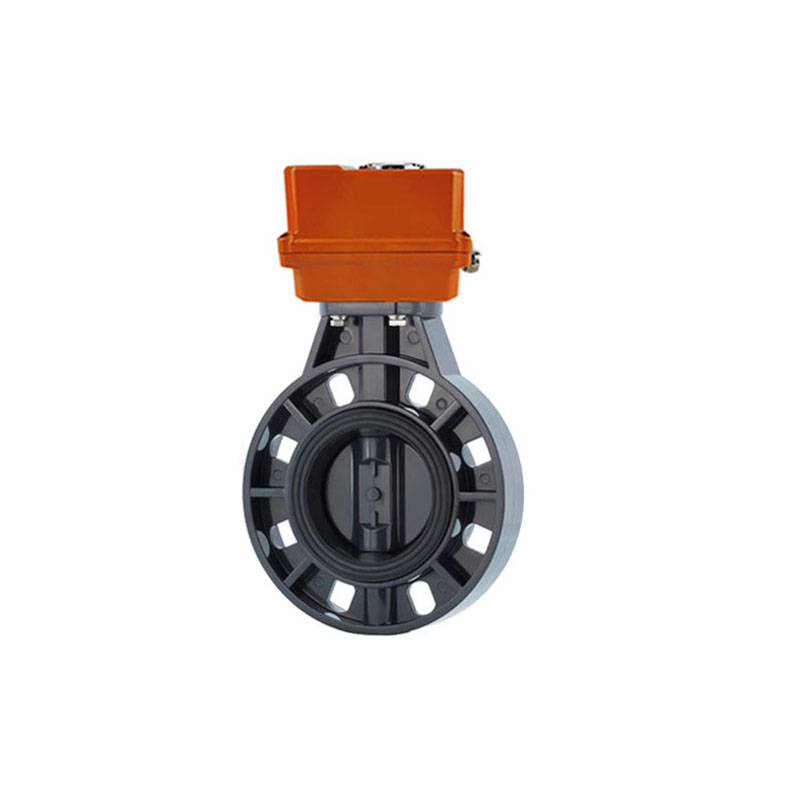

Mini PVC electric butterfly valve

 Technical Data
Specifications
Optionals
•  Quarter turn electric actuator
•  ON/OFF Type
•  Actuator working angle 90°
•  Regulation Type
•  Working torques: 30Nm to 2000 Nm.
4444-20 mA modulating positioner
•  Cycle time: 10S-95S(see chart)
1111-5 VDC modulating positioner
•  Protection Class IP65 & IP67
0000-10 VDC modulating positioner
ee(explosion-proof: Exd Ⅱ BT4 IP67 optional)
•  Display unit
Voltage Options:
Typical Applications
•  AC220V,AC24V,AC110V
•  Ball valve: DN15-300
•  DC24V,DC12V,AC380V
•  Butterfly valve: DN50-600

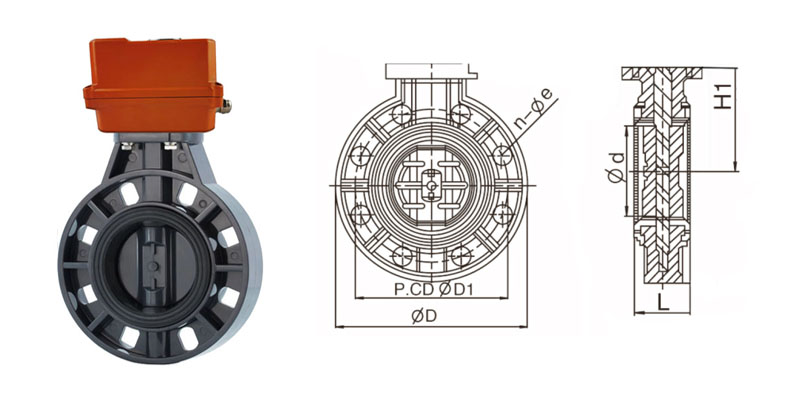

 Drawing and Dimensions
SIZE
in
2"
2'/2"
3"
4"
5"
6"
8"
DN
65
65
80
100
125
150
200
øD
160
180
196
228
258
287
344
P.C.D. øD1
DIN
125
145
160
180
210
240
295
ANSI
121
140
152
191
216
241
298
JIS
120
140
150
175
210
240
290
ød
48
63
78
98
122
146
199
L
43
46
49
54
64
70
88
ø1
124
124
124
124
170
170
170
L1
190
190
240
240
310
310
310
W
55
55
55
55
72
72
72
H1
100
112
120
140
168
181
215
H2
186
198
215
237
266
282
323
H
266
278
295
380
352
382
452
n-øe
DIN
4-19
4-19
8-19
8-19
8-19
8-23
8-23
ANSI
4-19
4-19
4-19
8-19
8-19
8-23
8-23
JIS
4-19
4-19
8-19
8-19
8-19
8-23
8-23
PIS
150
150
150
150
150
150
100
Mpa
1
1
1
1
1
1
0.6
ON/OFF Electric Actuators
Model
03
05
10
15
30
60
100
200
Torque NM
30Nm
50Nm
100Nm
150Nm
300Nm
600Nm
1000Nm
2000Nm
Actuator speed
15S/60S
25S/50S
10S/15S/30S/60S
30S/60S
95S
95S
Working current
0.25A
0.25A
0.48A
0.68A
0.8A
1.2A
2A
2A
Motor power
6W/F
10W/F
25W/F
30W/F
40W/F
90W/F
100W/F
120W/F
Voltage
AC220V,AC24V,AC110V,DC24V,DC12V,AC380V 1Ph/3Ph
Modulating Electric Actuators
Model
03E
05E
10E
15E
30E
60E
100E
200E
Torque NM
30Nm
50Nm
100Nm
150Nm
300Nm
600Nm
1000Nm
2000Nm
Actuator speed
15S/60S
25S/50S
10S/15S/30S/60S
30S/60S
95S
95S
Working current
0.25A
0.25A
0.48A
0.68A
0.8A
1.2A
2A
2A
Motor power
6W/F
10W/F
25W/F
30W/F
40W/F
90W/F
100W/F
120W/F
Voltage
AC220V,AC24V,AC110V,DC24V,DC12V,AC380V 1Ph/3Ph
Input signal
4-20mADC,1-5VDC,0-10VDC
Output signal
4-20mADC,0-10VDC

Eight wiring types are available:
A: with limit position switch style (standard)
B: with neutral position switch style ( passive contact)
C: with potentiometer style
D: both potentiometer and neutral position switch style
E: with control module style ( Modulating Applications)
F: DC motor control circuit style
G: Three-phase current 380V control circuits style
H: Three-phase current 380V, both neutral position switch and potentiometer style
Contact us for the most recent product and technical information.
