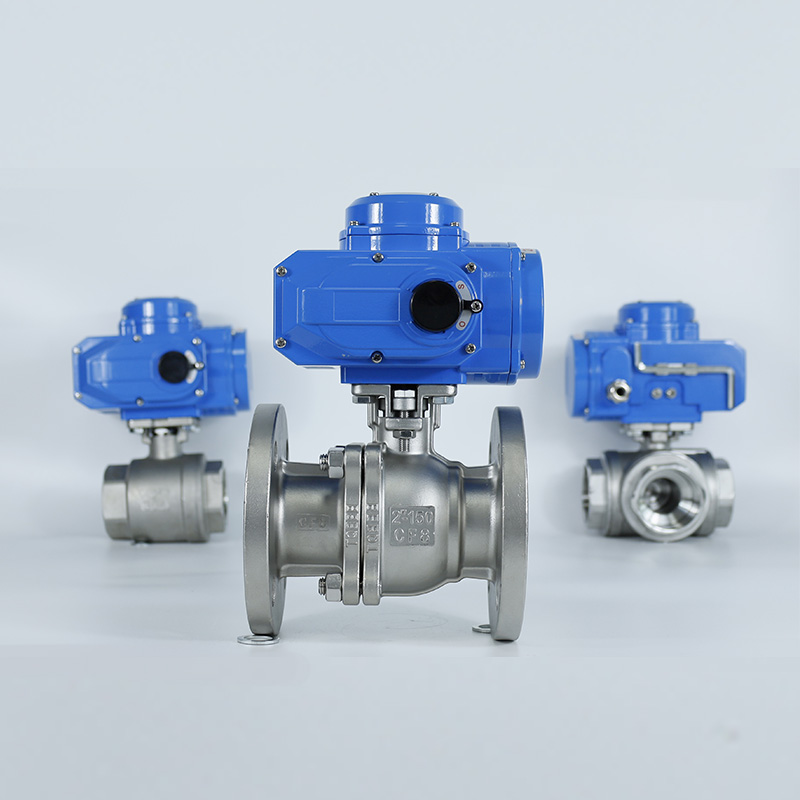

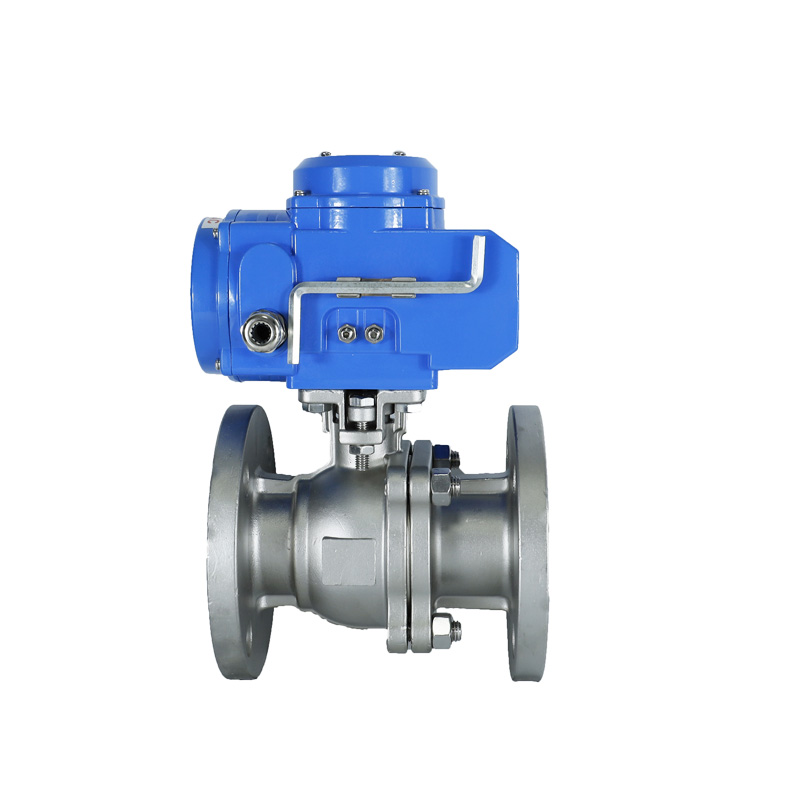

Specifications | Optionals |
• Quarter turn electric actuator | • ON/OFF Type |
• Actuator working angle 90° | • Regulation Type |
• Working torques: 30Nm to 2000 Nm. | 4444-20 mA modulating positioner |
• Cycle time: 10S-95S(see chart) | 1111-5 VDC modulating positioner |
• Protection Class IP65 & IP67 | 0000-10 VDC modulating positioner |
ee(explosion-proof: Exd Ⅱ BT4 IP67 optional) | • Display unit |
Voltage Options: | Typical Applications |
• AC220V,AC24V,AC110V | • Ball valve: DN15-300 |
• DC24V,DC12V,AC380V | • Butterfly valve: DN50-600 |

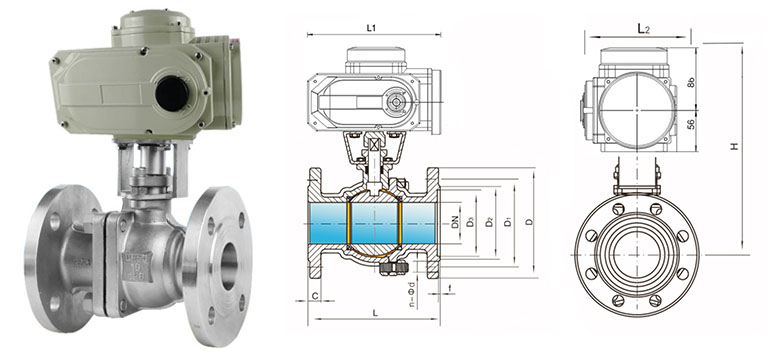

DN (mm) | L | L1 | L2 | H | D | D1(PCD) | D2 | C | f | n-ød | ||
DIN | JIS | ANSI | ||||||||||
15 | 130 | 178 | 121 | 204 | 95 | 65 | 70 | 60 | 46 | 14 | 2 | 4-ø14 |
20 | 140 | 178 | 121 | 209 | 105 | 75 | 75 | 70 | 56 | 16 | 2 | 4-ø14 |
25 | 150 | 178 | 121 | 214 | 115 | 85 | 90 | 80 | 65 | 16 | 2 | 4-ø14 |
32 | 165 | 178 | 121 | 257 | 140 | 100 | 100 | 89 | 76 | 18 | 2 | 4-ø18 |
40 | 180 | 210 | 131 | 274 | 150 | 110 | 105 | 98 | 84 | 18 | 3 | 4-ø18 |
50 | 200 | 210 | 131 | 290 | 165 | 125 | 120 | 121 | 99 | 20 | 3 | 4-ø18 |
65 | 220 | 210 | 131 | 310 | 185 | 145 | 140 | 140 | 118 | 20 | 3 | 4-ø18 |
80 | 250 | 309 | 160 | 346 | 200 | 160 | 150 | 152 | 132 | 20 | 3 | 8-ø18 |
100 | 280 | 309 | 160 | 378 | 220 | 180 | 175 | 190 | 156 | 22 | 3 | 8-ø18 |
125 | 320 | 309 | 160 | 425 | 250 | 210 | 210 | 216 | 184 | 22 | 3 | 8-ø18 |
150 | 360 | 309 | 177 | 468 | 285 | 240 | 240 | 241 | 211 | 24 | 3 | 8-ø22 |
200 | 400 | 309 | 177 | 583 | 340 | 295 | 290 | 298 | 266 | 24 | 3 | 12-ø22 |
Model | 03 | 05 | 10 | 15 | 30 | 60 | 100 | 200 |
Torque NM | 30Nm | 50Nm | 100Nm | 150Nm | 300Nm | 600Nm | 1000Nm | 2000Nm |
Actuator speed | 15S/60S | 25S/50S | 10S/15S/30S/60S | 30S/60S | 95S | 95S | ||
Working current | 0.25A | 0.25A | 0.48A | 0.68A | 0.8A | 1.2A | 2A | 2A |
Motor power | 6W/F | 10W/F | 25W/F | 30W/F | 40W/F | 90W/F | 100W/F | 120W/F |
Voltage | AC220V,AC24V,AC110V,DC24V,DC12V,AC380V 1Ph/3Ph | |||||||
Model | 03E | 05E | 10E | 15E | 30E | 60E | 100E | 200E |
Torque NM | 30Nm | 50Nm | 100Nm | 150Nm | 300Nm | 600Nm | 1000Nm | 2000Nm |
Actuator speed | 15S/60S | 25S/50S | 10S/15S/30S/60S | 30S/60S | 95S | 95S | ||
Working current | 0.25A | 0.25A | 0.48A | 0.68A | 0.8A | 1.2A | 2A | 2A |
Motor power | 6W/F | 10W/F | 25W/F | 30W/F | 40W/F | 90W/F | 100W/F | 120W/F |
Voltage | AC220V,AC24V,AC110V,DC24V,DC12V,AC380V 1Ph/3Ph | |||||||
Input signal | 4-20mADC,1-5VDC,0-10VDC | |||||||
Output signal | 4-20mADC,0-10VDC | |||||||
