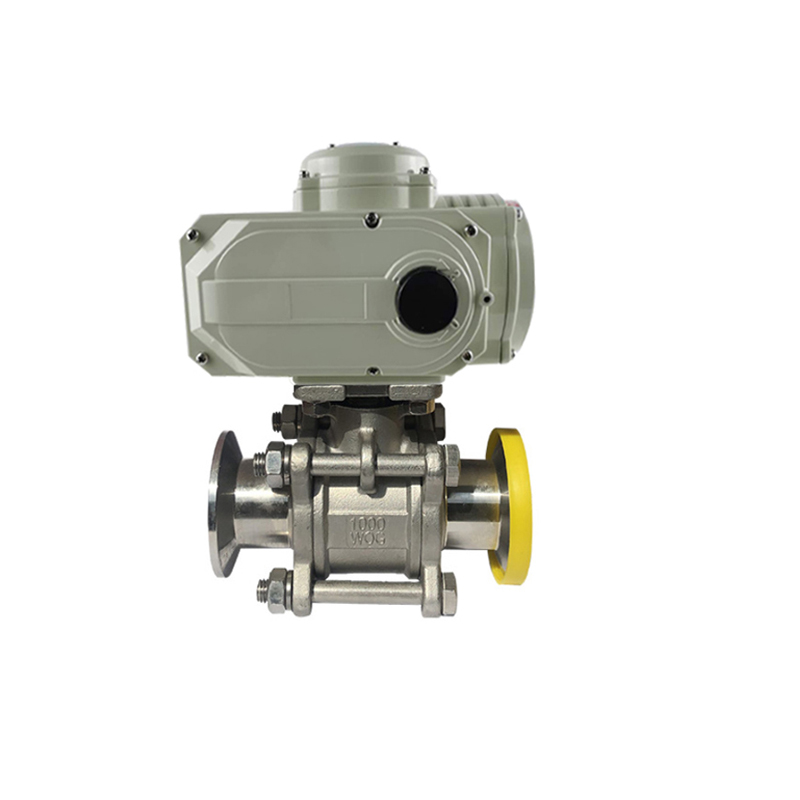

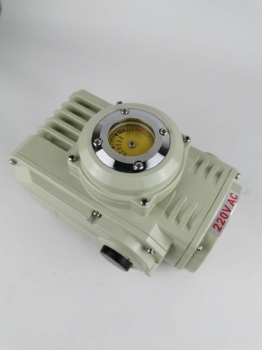

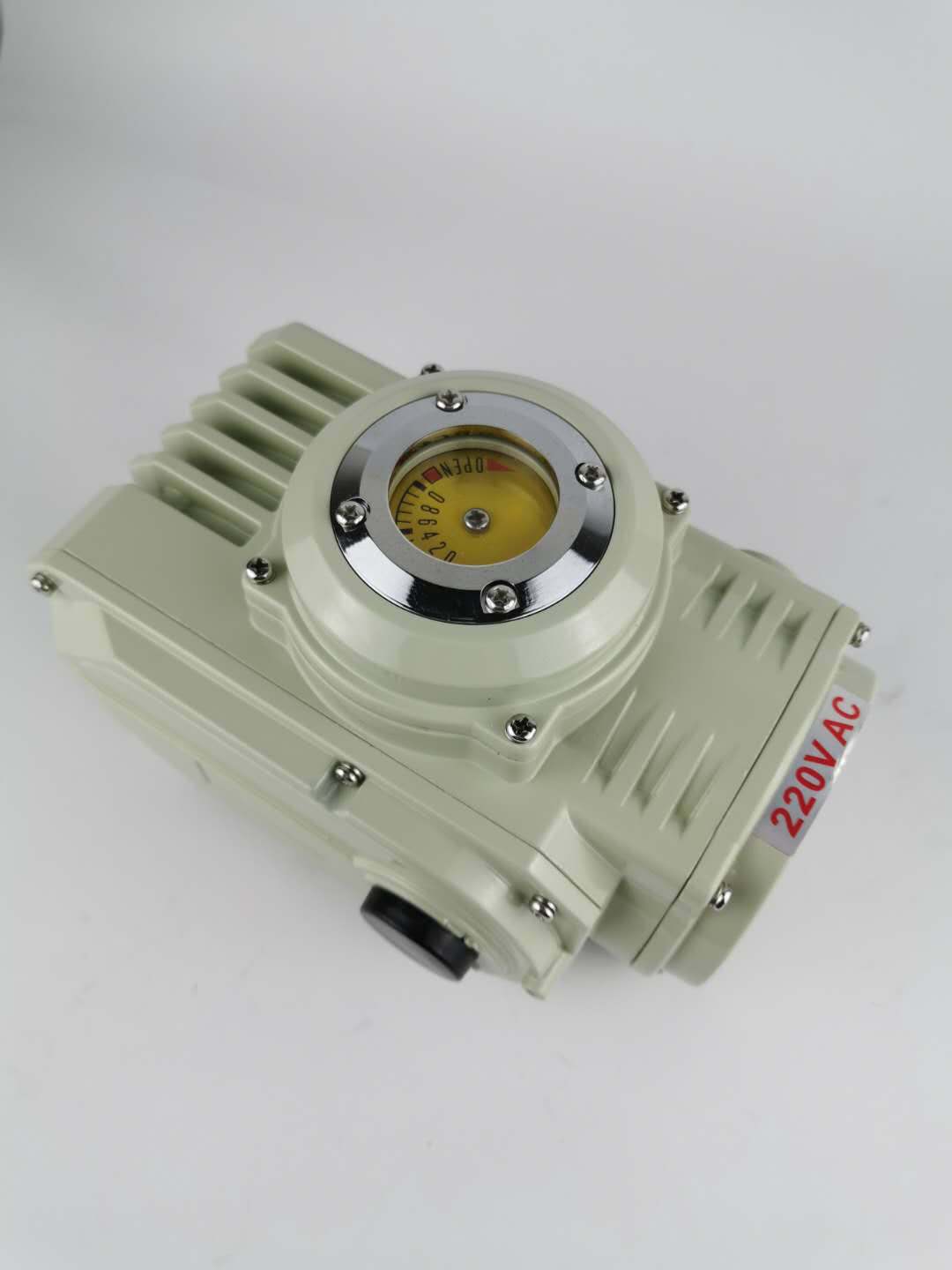

Specifications | Optionals |
• Quarter turn electric actuator | • ON/OFF Type |
• Actuator working angle 90° | • Regulation Type |
• Working torques: 30Nm to 2000 Nm. | 4444-20 mA modulating positioner |
• Cycle time: 10S-95S(see chart) | 1111-5 VDC modulating positioner |
• Protection Class IP65 & IP67 | 0000-10 VDC modulating positioner |
ee(explosion-proof: Exd Ⅱ BT4 IP67 optional) | • Display unit |
Voltage Options: | Typical Applications |
• AC220V,AC24V,AC110V | • Ball valve: DN15-300 |
• DC24V,DC12V,AC380V | • Butterfly valve: DN50-600 |

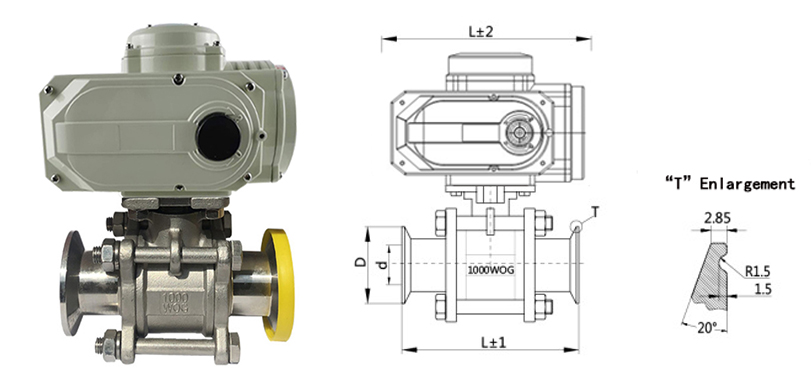

No. | In | d（φ） | D（φ） | L1 | L2 | Actuator |
1 | 1/2" | 9.4 | 25.5 | 91 | 168 | 05 Actuator |
2 | 3/4" | 16 | 50.5 | 104 | 168 | 05 Actuator |
3 | 1" | 22 | 50.5 | 115 | 168 | 05 Actuator |
4 | 1-1/4" | 28 | 50.5 | 125 | 216 | 10 Actuator |
5 | 1-1/2" | 35 | 50.5 | 140 | 216 | 10 Actuator |
6 | 2" | 47 | 64 | 156 | 216 | 10 Actuator |
7 | 2-1/2" | 60 | 77.5 | 199 | 216 | 10 Actuator |
8 | 3" | 72 | 91 | 230 | 300 | 30 Actuator |
9 | 4" | 95 | 119 | 242 | 300 | 30 Actuator |
Model | 03 | 05 | 10 | 15 | 30 | 60 | 100 | 200 |
Torque NM | 30Nm | 50Nm | 100Nm | 150Nm | 300Nm | 600Nm | 1000Nm | 2000Nm |
Actuator speed | 15S/60S | 25S/50S | 10S/15S/30S/60S | 30S/60S | 95S | 95S | ||
Working current | 0.25A | 0.25A | 0.48A | 0.68A | 0.8A | 1.2A | 2A | 2A |
Motor power | 6W/F | 10W/F | 25W/F | 30W/F | 40W/F | 90W/F | 100W/F | 120W/F |
Voltage | AC220V,AC24V,AC110V,DC24V,DC12V,AC380V 1Ph/3Ph | |||||||
Model | 03E | 05E | 10E | 15E | 30E | 60E | 100E | 200E |
Torque NM | 30Nm | 50Nm | 100Nm | 150Nm | 300Nm | 600Nm | 1000Nm | 2000Nm |
Actuator speed | 15S/60S | 25S/50S | 10S/15S/30S/60S | 30S/60S | 95S | 95S | ||
Working current | 0.25A | 0.25A | 0.48A | 0.68A | 0.8A | 1.2A | 2A | 2A |
Motor power | 6W/F | 10W/F | 25W/F | 30W/F | 40W/F | 90W/F | 100W/F | 120W/F |
Voltage | AC220V,AC24V,AC110V,DC24V,DC12V,AC380V 1Ph/3Ph | |||||||
Input signal | 4-20mADC,1-5VDC,0-10VDC | |||||||
Output signal | 4-20mADC,0-10VDC | |||||||
