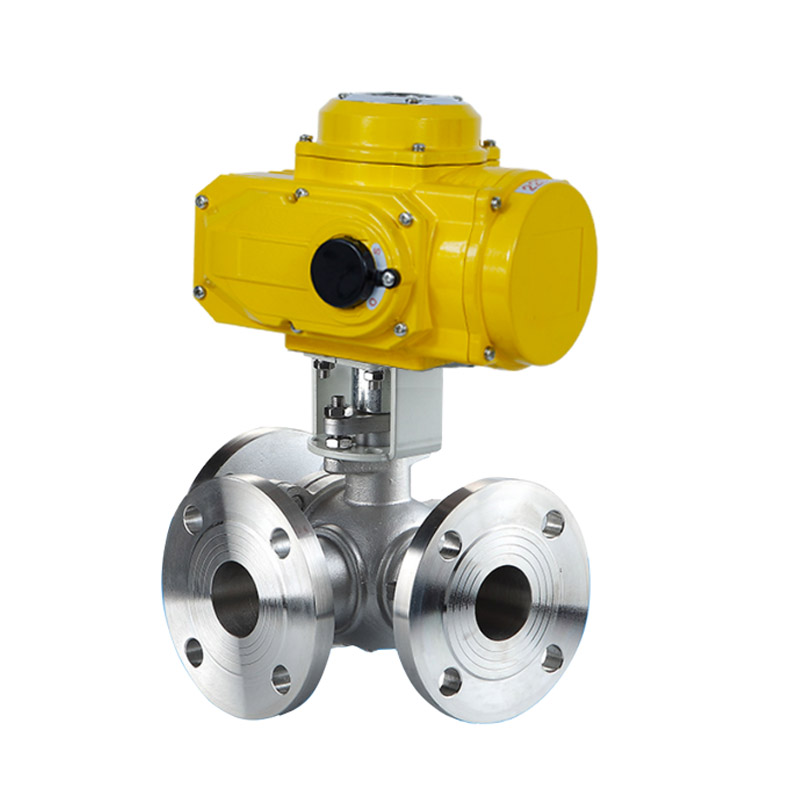

Electric 3way flange ball valve

 Technical Data
Specifications
Optionals
•  Quarter turn electric actuator
•  ON/OFF Type
•  Actuator working angle 90°
•  Regulation Type
•  Working torques: 30Nm to 2000 Nm.
4444-20 mA modulating positioner
•  Cycle time: 10S-95S(see chart)
1111-5 VDC modulating positioner
•  Protection Class IP65 & IP67
0000-10 VDC modulating positioner
ee(explosion-proof: Exd Ⅱ BT4 IP67 optional)
•  Display unit
Voltage Options:
Typical Applications
•  AC220V,AC24V,AC110V
•  Ball valve: DN15-300
•  DC24V,DC12V,AC380V
•  Butterfly valve: DN50-600

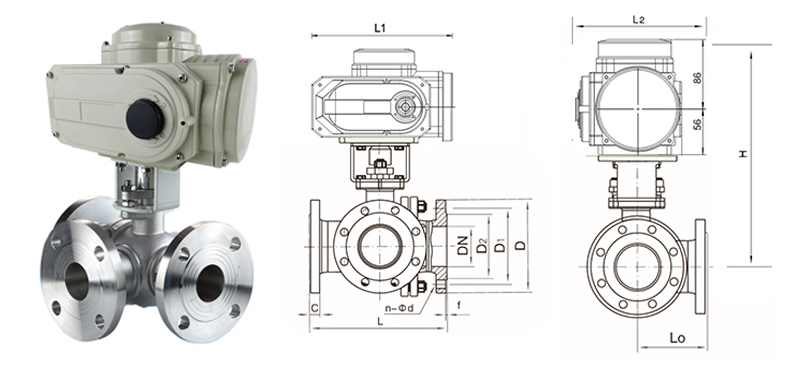

 Drawing and Dimensions
DN
(mm)
in
L
L0
L1
L2
H
D
D1(PCD)
D2
C
f
n-ød
JIS
DIN
ANSI
15
1/2
150
72
178
121
204
95
70
65
60
46
14
2
4-ø14
20
3/4
160
80
178
121
240
105
75
75
70
56
16
2
4-ø14
25
1
180
90
178
121
257
115
90
85
80
65
16
2
4-ø14
32
1-1/4
200
100
178
121
277
140
100
100
89
76
18
3
4-ø18
40
1-1/2
220
110
210
131
292
150
105
110
98
84
18
3
4-ø18
50
2
240
120
210
131
325
165
120
125
121
99
20
3
4-ø18
65
2-1/2
260
130
210
131
357
185
140
145
140
118
20
3
4-ø18
80
3
280
140
309
160
368
200
150
160
152
132
20
3
8-ø18
100
4
320
160
309
160
410
220
175
180
190
156
22
3
8-ø18
125
5
380
190
309
160
470
250
210
210
216
184
22
3
8-ø18
150
6
440
220
309
177
556
285
240
240
241
211
24
3
8-ø22
200
8
550
260
309
177
648
340
290
295
298
266
24
3
8-ø22
ON/OFF Electric Actuators
Model
03
05
10
15
30
60
100
200
Torque NM
30Nm
50Nm
100Nm
150Nm
300Nm
600Nm
1000Nm
2000Nm
Actuator speed
15S/60S
25S/50S
10S/15S/30S/60S
30S/60S
95S
95S
Working current
0.25A
0.25A
0.48A
0.68A
0.8A
1.2A
2A
2A
Motor power
6W/F
10W/F
25W/F
30W/F
40W/F
90W/F
100W/F
120W/F
Voltage
AC220V,AC24V,AC110V,DC24V,DC12V,AC380V 1Ph/3Ph
Modulating Electric Actuators
Model
03E
05E
10E
15E
30E
60E
100E
200E
Torque NM
30Nm
50Nm
100Nm
150Nm
300Nm
600Nm
1000Nm
2000Nm
Actuator speed
15S/60S
25S/50S
10S/15S/30S/60S
30S/60S
95S
95S
Working current
0.25A
0.25A
0.48A
0.68A
0.8A
1.2A
2A
2A
Motor power
6W/F
10W/F
25W/F
30W/F
40W/F
90W/F
100W/F
120W/F
Voltage
AC220V,AC24V,AC110V,DC24V,DC12V,AC380V 1Ph/3Ph
Input signal
4-20mADC,1-5VDC,0-10VDC
Output signal
4-20mADC,0-10VDC

Eight wiring types are available:
A: with limit position switch style (standard)
B: with neutral position switch style ( passive contact)
C: with potentiometer style
D: both potentiometer and neutral position switch style
E: with control module style ( Modulating Applications)
F: DC motor control circuit style
G: Three-phase current 380V control circuits style
H: Three-phase current 380V, both neutral position switch and potentiometer style
Contact us for the most recent product and technical information.
