  • Electric V type Flange Ball Valve
  • Electric V type Flange Ball Valve
Electric V type Flange Ball Valve Electric V type Flange Ball Valve

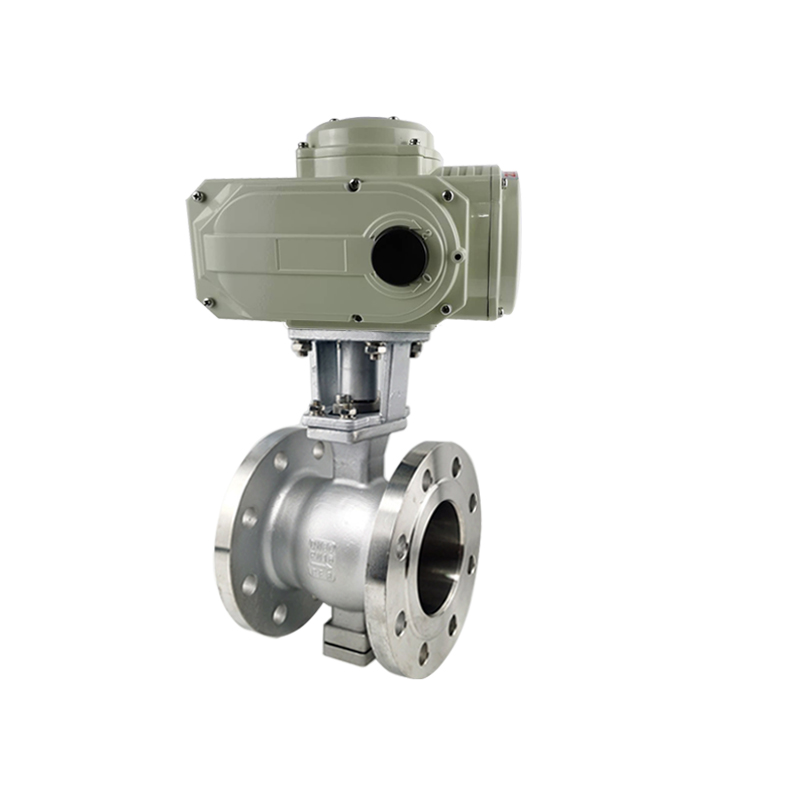

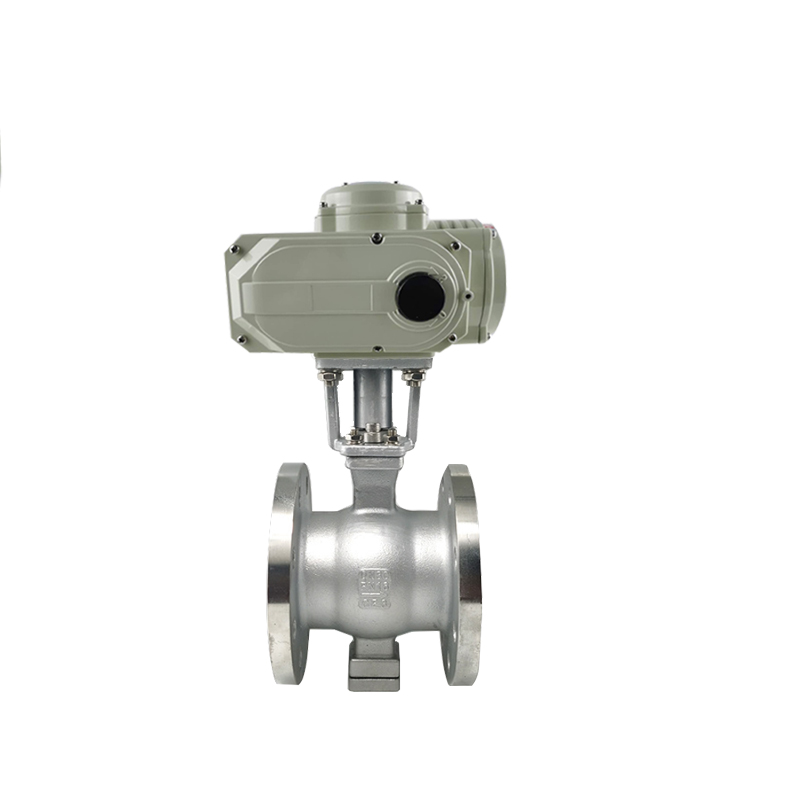

Electric V type Flange Ball Valve

 Technical Data
Specifications
Optionals
•  Quarter turn electric actuator
•  ON/OFF Type
•  Actuator working angle 90°
•  Regulation Type
•  Working torques: 30Nm to 2000 Nm.
4444-20 mA modulating positioner
•  Cycle time: 10S-95S(see chart)
1111-5 VDC modulating positioner
•  Protection Class IP65 & IP67
0000-10 VDC modulating positioner
ee(explosion-proof: Exd Ⅱ BT4 IP67 optional)
•  Display unit
Voltage Options:
Typical Applications
•  AC220V,AC24V,AC110V
•  Ball valve: DN15-300
•  DC24V,DC12V,AC380V
•  Butterfly valve: DN50-600

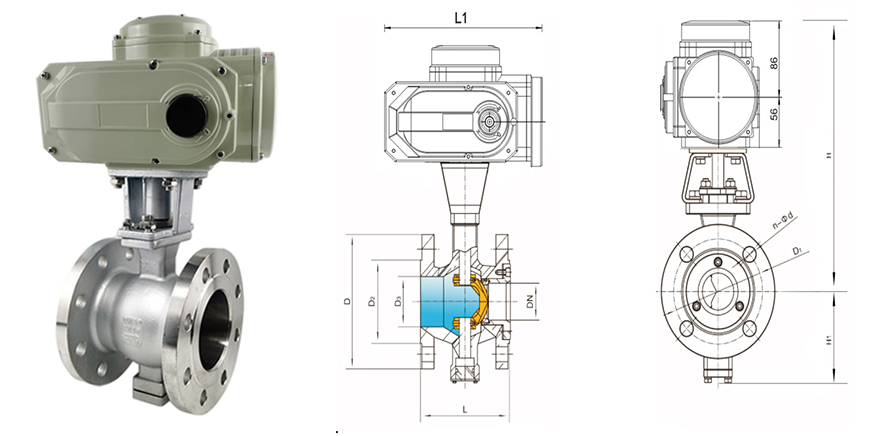

 Drawing and Dimensions
DN (mm)
L
L1
H
H1
D
D2
D3
D1 (PCD)
n-ød
Actuator
JIS
DIN
ANSI
25
102
178
260
87
115
65
38
90
85
80
4-ø14
05 Actuator
32
105
210
267
87
140
76
42
100
100
89
4-ø18
10 Actuator
40
114
210
292
87
150
84
50
105
110
98
4-ø18
15 Actuator
50
124
210
292
97
165
99
60
120
125
121
4-ø18
15 Actuator
65
145
309
327
112
185
118
75
140
145
140
4-ø18
30 Actuator
80
165
309
359
112
200
132
94
150
160
152
8-ø18
30 Actuator
100
194
309
395
122
220
156
110
175
180
190
8-ø18
30 Actuator
125
213
309
399
142
250
184
135
210
210
216
8-ø18
60 Actuator
150
229
309
461
165
285
211
165
240
240
241
8-ø22
100 Actuator
200
243
309
509
195
340
266
210
290
295
298
12-ø22
200 Actuator
250
297
309
603
237
405
319
260
355
350
362
12-ø26
400 Actuator
300
334
309
790
287
460
370
310
400
400
431
12-ø26
400 Actuator
350
414
309
828
338
520
429
360
445
460
476
16-ø26
400 Actuator
400
490
309
1063
390
580
480
410
510
515
540
16-ø30
400 Actuator
500
600
309
-
510
715
609
510
620
650
635
16-ø33
400 Actuator
ON/OFF Electric Actuators
Model
03
05
10
15
30
60
100
200
Torque NM
30Nm
50Nm
100Nm
150Nm
300Nm
600Nm
1000Nm
2000Nm
Actuator speed
15S/60S
25S/50S
10S/15S/30S/60S
30S/60S
95S
95S
Working current
0.25A
0.25A
0.48A
0.68A
0.8A
1.2A
2A
2A
Motor power
6W/F
10W/F
25W/F
30W/F
40W/F
90W/F
100W/F
120W/F
Voltage
AC220V,AC24V,AC110V,DC24V,DC12V,AC380V 1Ph/3Ph
Modulating Electric Actuators
Model
03E
05E
10E
15E
30E
60E
100E
200E
Torque NM
30Nm
50Nm
100Nm
150Nm
300Nm
600Nm
1000Nm
2000Nm
Actuator speed
15S/60S
25S/50S
10S/15S/30S/60S
30S/60S
95S
95S
Working current
0.25A
0.25A
0.48A
0.68A
0.8A
1.2A
2A
2A
Motor power
6W/F
10W/F
25W/F
30W/F
40W/F
90W/F
100W/F
120W/F
Voltage
AC220V,AC24V,AC110V,DC24V,DC12V,AC380V 1Ph/3Ph
Input signal
4-20mADC,1-5VDC,0-10VDC
Output signal
4-20mADC,0-10VDC


Eight wiring types are available:
A:  Active contact, Limit position switch.
B:  Passive contact.
C:  With potentiometer
D:  Passive indication with potentiometer
E:  With Controller module
F:  DC motor Control circuit.
G: Three-phase 380VAC motor control circuit
H: Three-phase AC 380V with potentiometer
Contact us for the most recent product and technical information.
