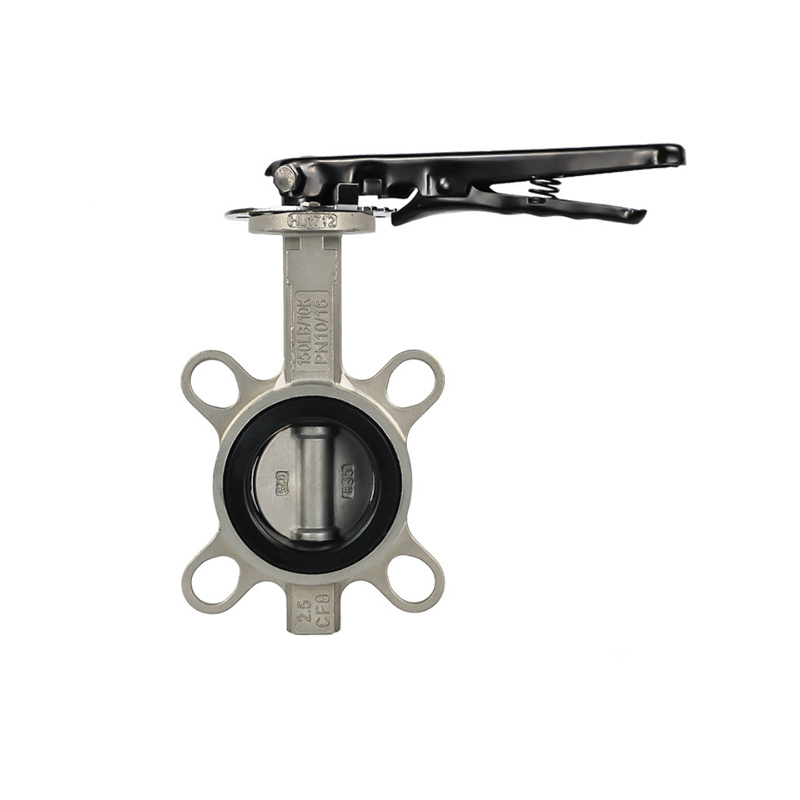

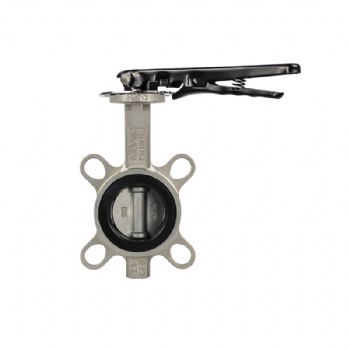

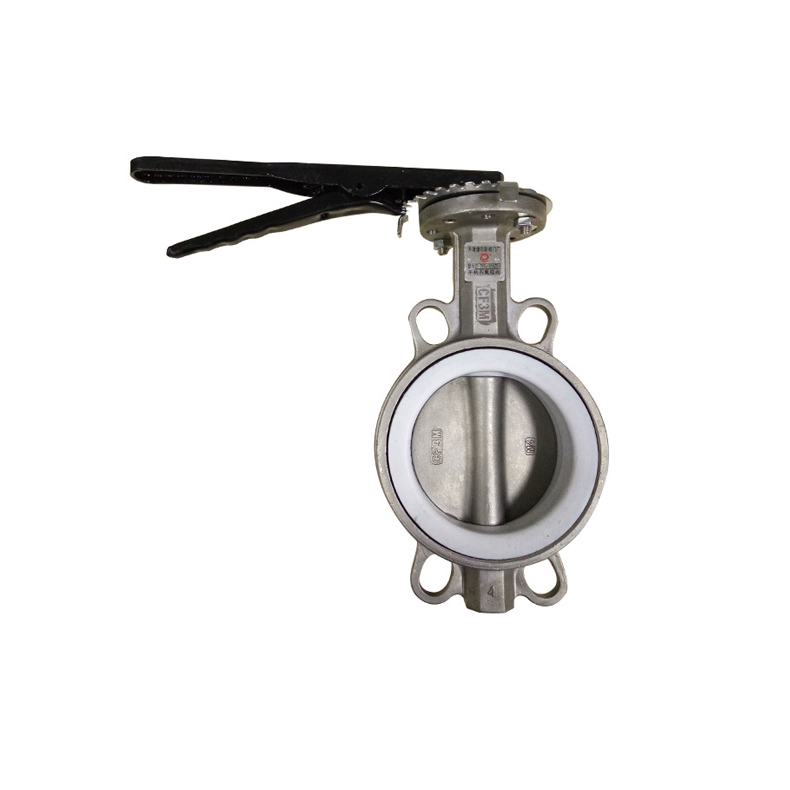

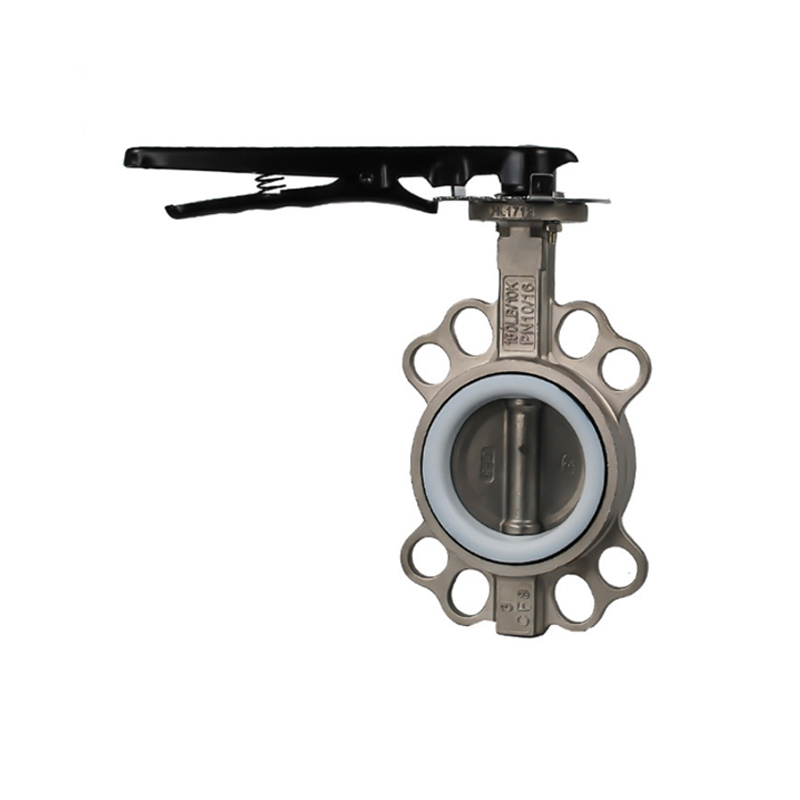

Manual butterfly valve

SS wafer butterfly valve

EMAIL INQUIRY

Features

This product is made of stainless steel valve body, PTFE seal, carbon steel valve plate, stainless steel valve plate and valve stem. It is suitable for flow regulation and medium cut-off of food, medicine, chemical industry, petroleum, electric power, light industry, papermaking, water supply and gas pipelines whose temperature is ≤120℃.

Technical date and materials

Valve Body	SS	SIZE	DN40-300
valve disc	SS	Working pressure	PN10/PN16
valve seat	PTFE	Medium	Water,Natural gas, Oil
Stem	SS

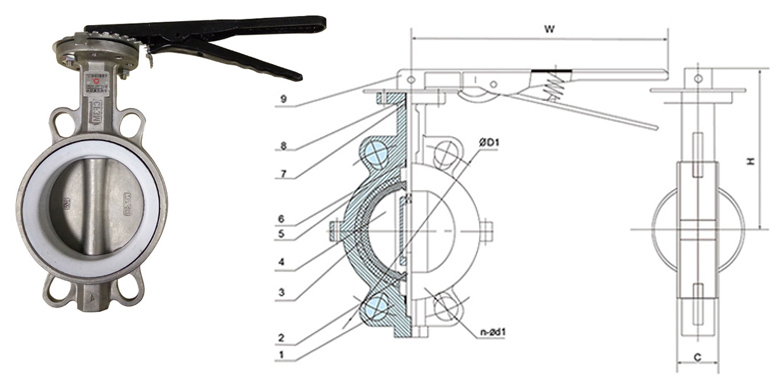

Dimensions(mm)

DN (mm)	SIZE	C	H	W	ANSI 150		DIN PN10/16
DN (mm)	SIZE	C	H	W	D1	n-d1	D1	n-d1
40	1-1/2	40	150	270	98.5	4-15	110	4-18
50	2"	43	167	270	120.5	4-19	125	4-18
65	2-1/2"	46	170	270	139.5	4-19	145	4-18
80	3"	46	170	270	152.5	4-19	160	4-18
100	4"	52	181	270	190.5	4-19	180	4-18
125	5"	56	205	270	216	4-22	210	4-18
150	6"	56	219	270	241.5	4-22	240	4-23
200	8"	60	268	360	298.5	4-22	295	8-23
250	10"	68	284	500	362	4-25	355	12-23
300	12"	78	337	500	432	4-25	410	12-23
