PVC/CPVC/PPH True union ball valve

Product description
Materials:UPVC,CPVC,PPH
SIZE: 1/2"-4"
Connection: Solvent socket,Thread
Standard:ANSI,DIN,JIS
Pressure:150PSI
Temp: UPVC(0-45℃);CPVC.PPH(0-95℃)
Body color:UPVC(Dark Gray),CPVC(LightGray),PPH(Beige)

Main parts and Materials
Handle
ABS
Stem
PP,PVC,CPVC
Stem O'ring
EPDM,VITON
Seat
PTFE
Ball
PP,PVC,CPVC
Body
PP,PVC,CPVC
2 Seat O'ring
EPDM,VITON
Solid End O'ring
EPDM,VITON

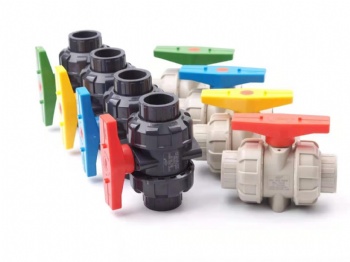

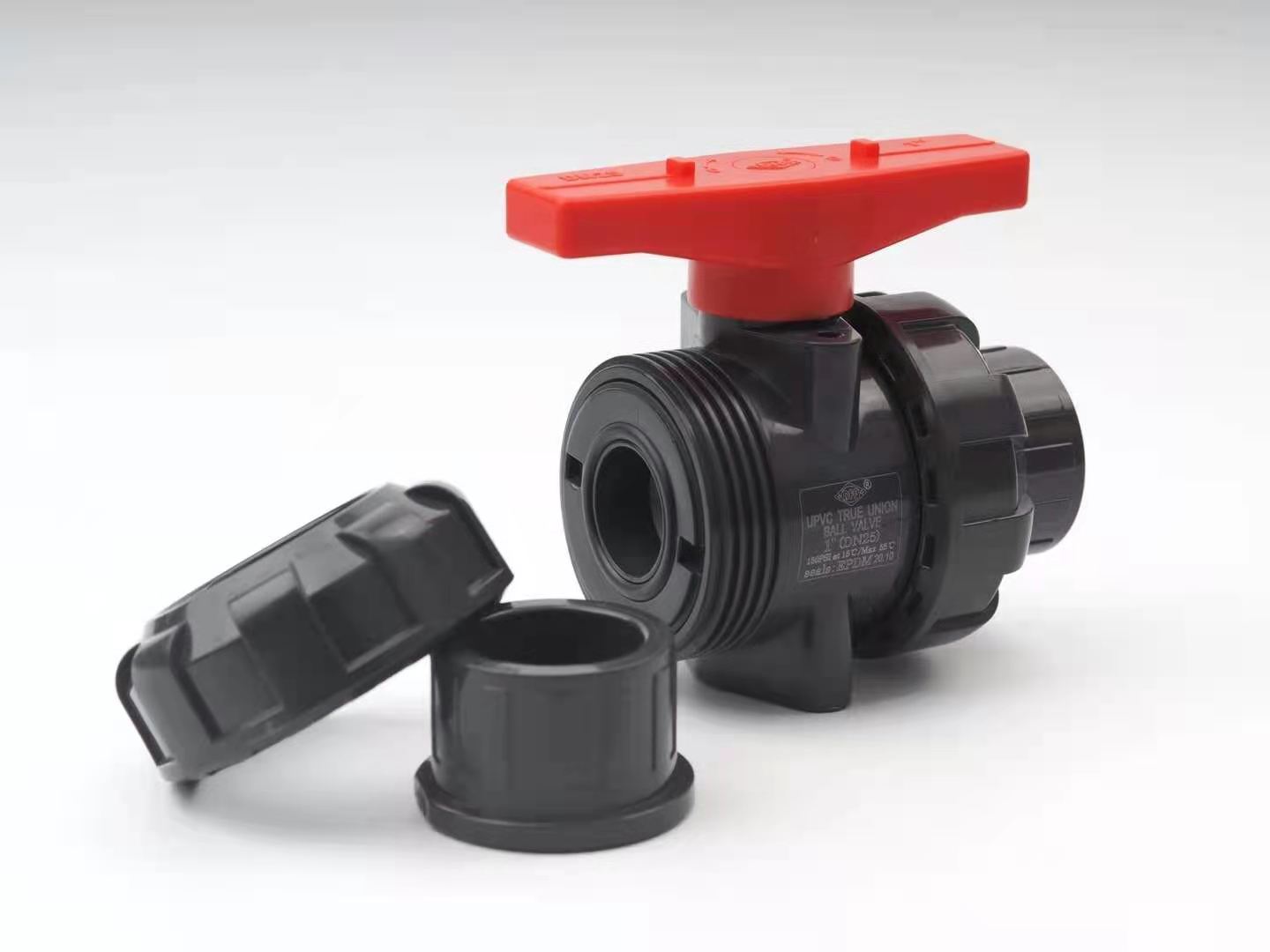

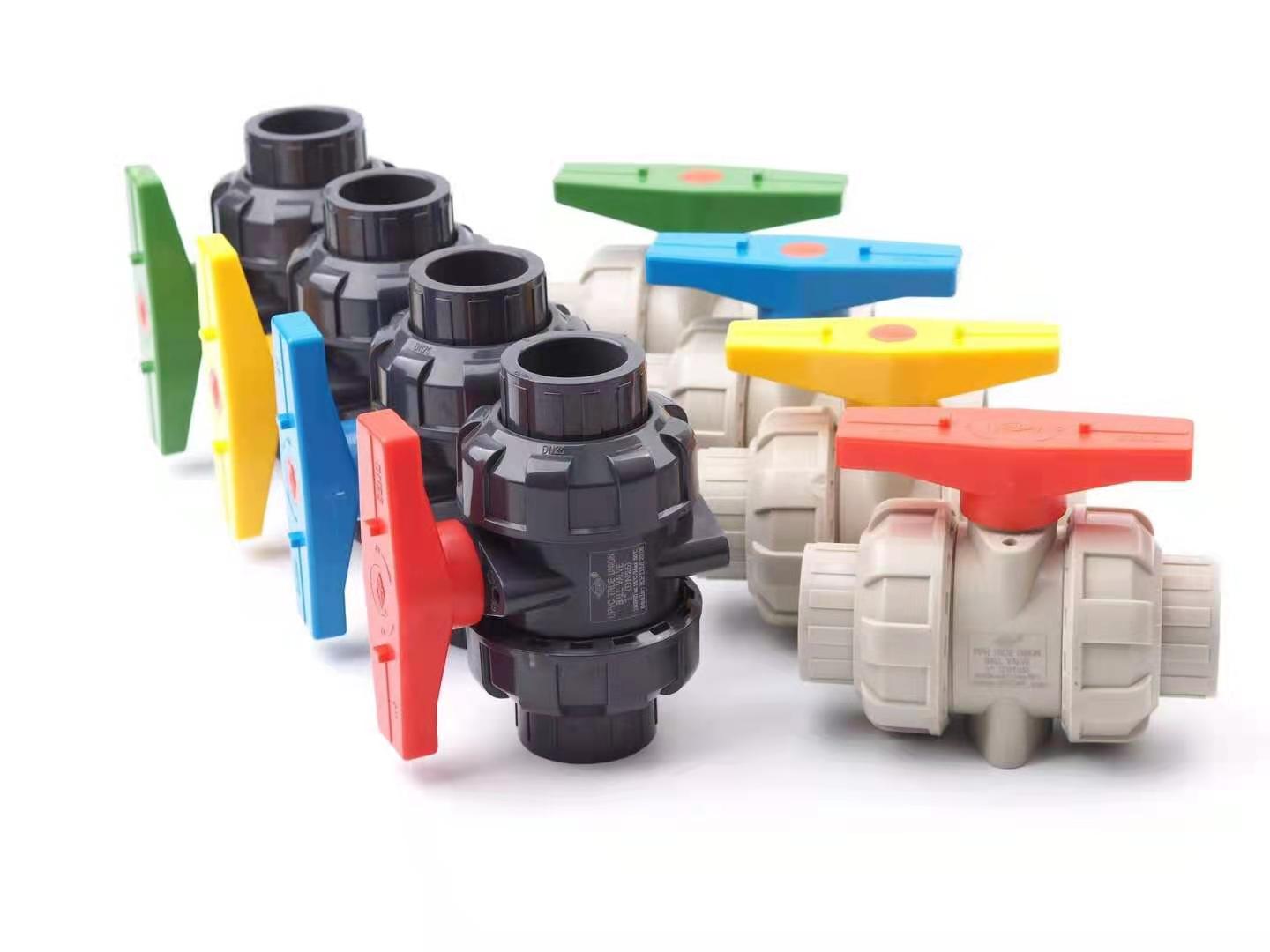

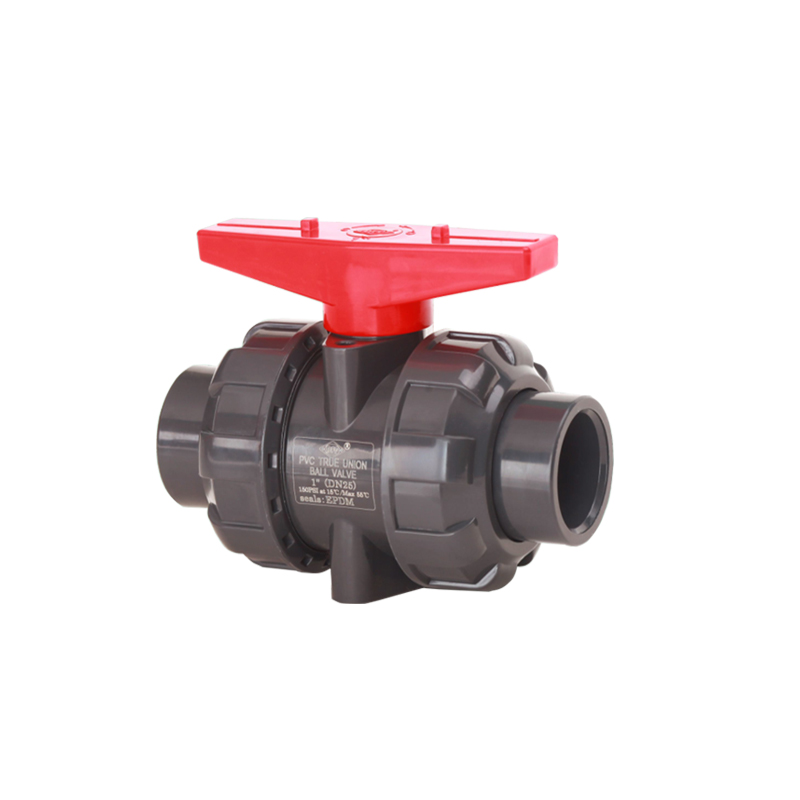

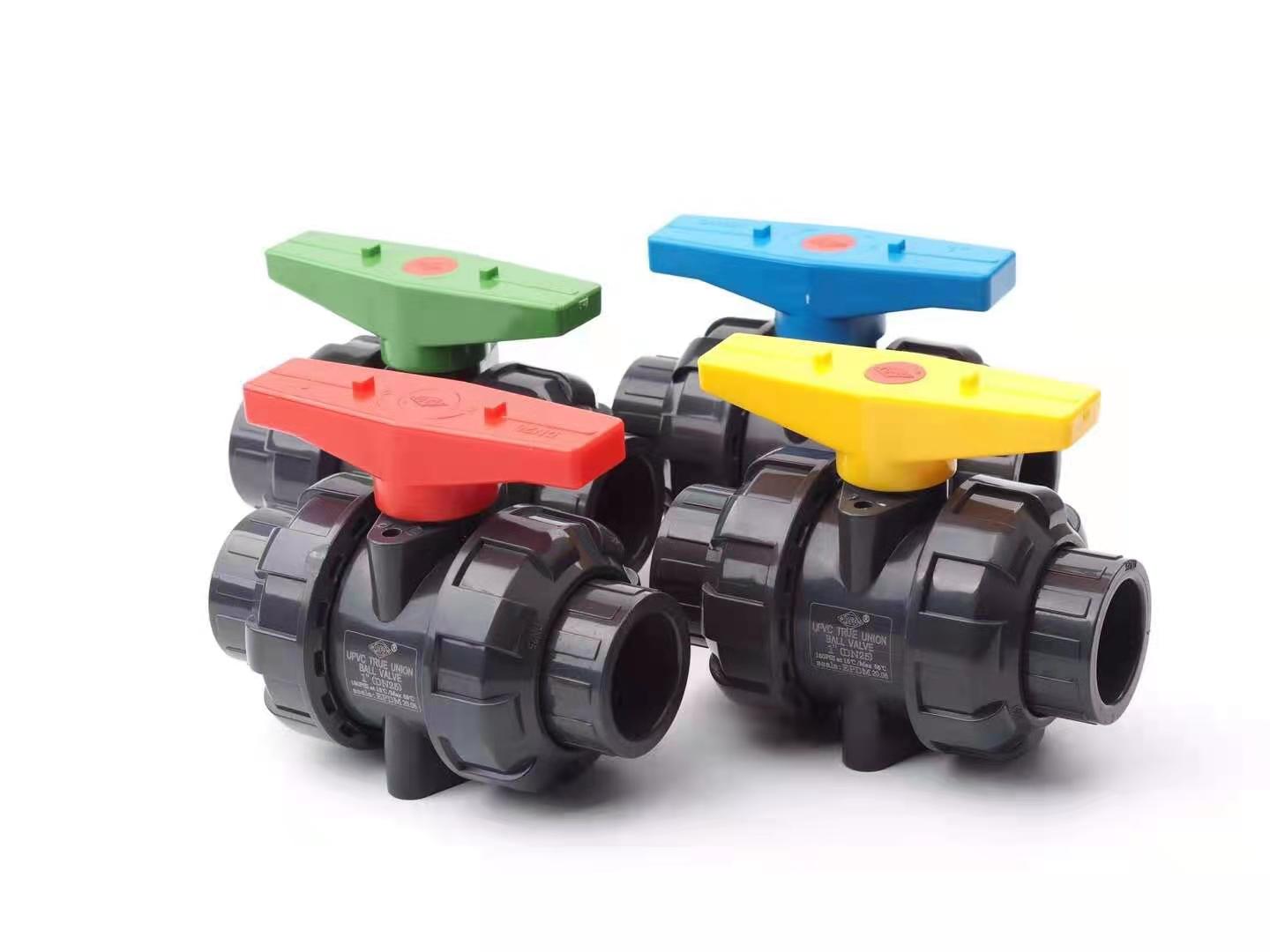

Products pictures


Drawing                         协羽塑胶新14最新2018-27.jpg

Dimensions(mm)
DN
inch
DIN(d2)
ANSI
JIS
Thd/in
(BSPT)
L
B
A
H
15
1/2
ø20
ø21.3
22

106
54.2
85.3
49.8
20
3/4
ø25
ø26.7
26
14
115
63.1
89.8
55
25
1
ø32
ø33.4
32
14
126.5
73.7
105.8
64.4
32
1-1/4
ø40
ø42.2
38
11.5
142.7
84.5
116
75.2
40
1-1/2
ø50
ø48.3
48
11.5
156.5
97.7
128
88.3
50
2
ø63
ø60.3
60
11.5
172
117.5
139.6
104.3
65
2-1/2
ø75
ø73
76
11.5
256
147
140.2
118.5
80
3
ø90
ø88.9
89
8
266
164
150.6
120.6
100
4
ø110
ø114.3
114
8
337
204
16.9
130.1
125
5
ø140
ø141.3
140





150
6
ø160
ø168.3
165





200
8
ø225
ø219
216
