Materials：UPVC,CPVC,PPH |
SIZE: 1/2"-4" |
Connection: Solvent socket，Thread |
Standard：ANSI,DIN,JIS |
Pressure:150PSI |
Temp: UPVC(0-45℃）；CPVC.PPH(0-95℃） |
Body color:UPVC(Dark Gray),CPVC(LightGray),PPH(Beige） |
Body | FRPP.PVDF.UPVC.CPVC.PPH |
Pistons | FRPP.PVDF.UPVC.CPVC.PPH |
Seal rubber | EPDM, FDM |
Nut | FRPP.PVDF.UPVC.CPVC.PPH |
Sealing | EPDM, FDM |
Partition | FRPP.PVDF.UPVC.CPVC.PPH |
Network mask | FRPP.PVDF.UPVC.CPVC.PPH |

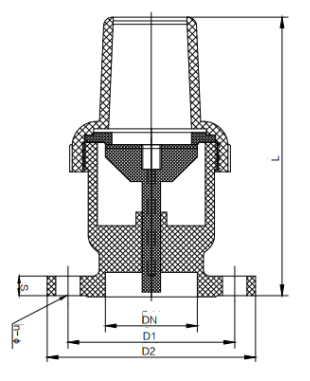

DN | L | D1 | D2 | S | n-φ | Pressue (Mpa) | ||
JIS | DIN | ANSI | ||||||
15(1/2") | 140 | 70 | 65 | 2.38 | 105 | 17 | 4-φ14 | 0.6 |
20(3/4") | 168 | 75 | 75 | 2.76 | 105 | 17 | 4-φ14 | 0.6 |
25(1") | 189 | 90 | 85 | 3.13 | 115 | 17 | 4-φ14 | 0.6 |
32(1-1/4") | 210 | 100 | 100 | 3.45 | 135 | 17 | 4-φ14 | 0.6 |
40(1-1/2") | 238 | 105 | 110 | 3.88 | 146 | 20 | 4-φ18 | 0.6 |
50(2") | 301 | 120 | 125 | 4.74 | 160 | 22 | 4-φ18 | 0.6 |
65(2-1/2") | 371 | 140 | 145 | 5.49 | 181 | 22 | 4-φ18 | 0.6 |
80(3") | 504 | 150 | 160 | 6 | 197 | 27 | 4-φ18 | 0.6 |
100(4") | 504 | 175 | 180 | 7.5 | 216 | 27 | 8-φ18 | 0.6 |
125(5") | 550 | 210 | 210 | 8.5 | 245 | 31 | 8-φ18 | 0.5 |
150(6") | 550 | 240 | 240 | 9.51 | 282 | 31 | 8-φ18 | 0.4 |
200(8") | 550 | 290 | 295 | 11.75 | 337 | 34 | 8-φ23 | 0.4 |
250(10") | 550 | 355 | 350 | 14.03 | 393 | 37 | 12-φ23 | 0.4 |
300(12") | 550 | 400 | 400 | 16.7 | 445 | 40 | 12-φ23 | 0.4 |
