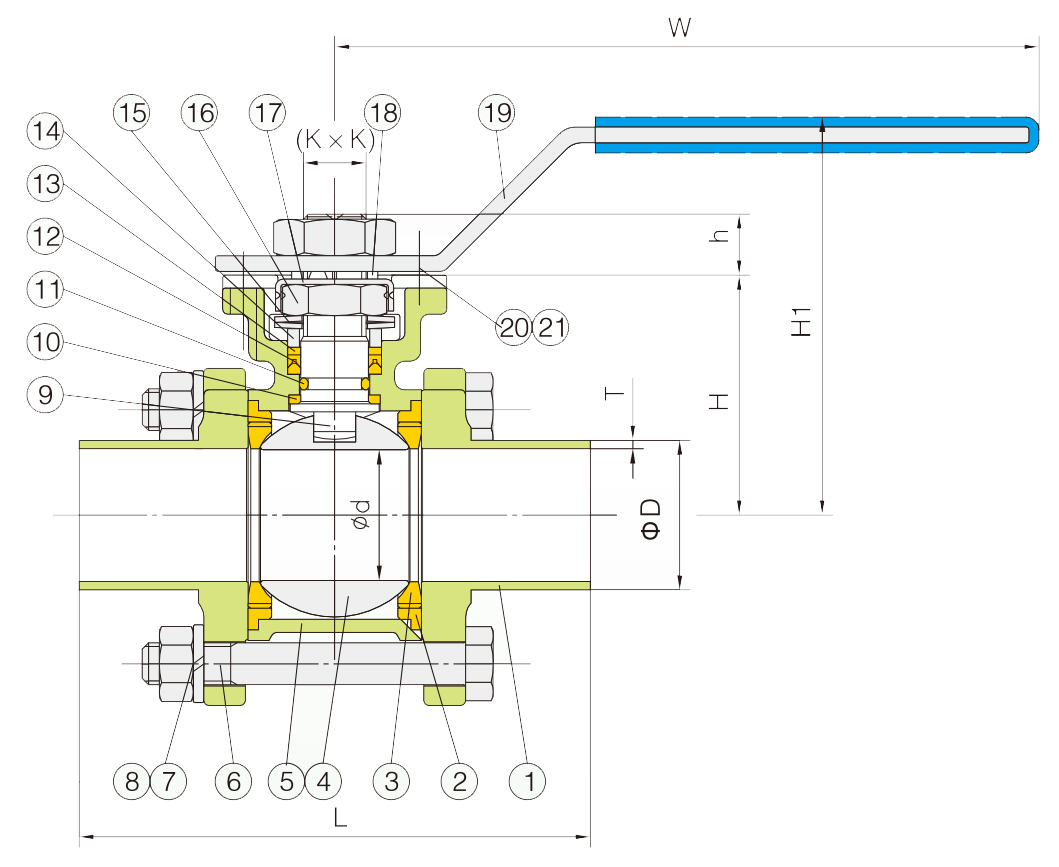

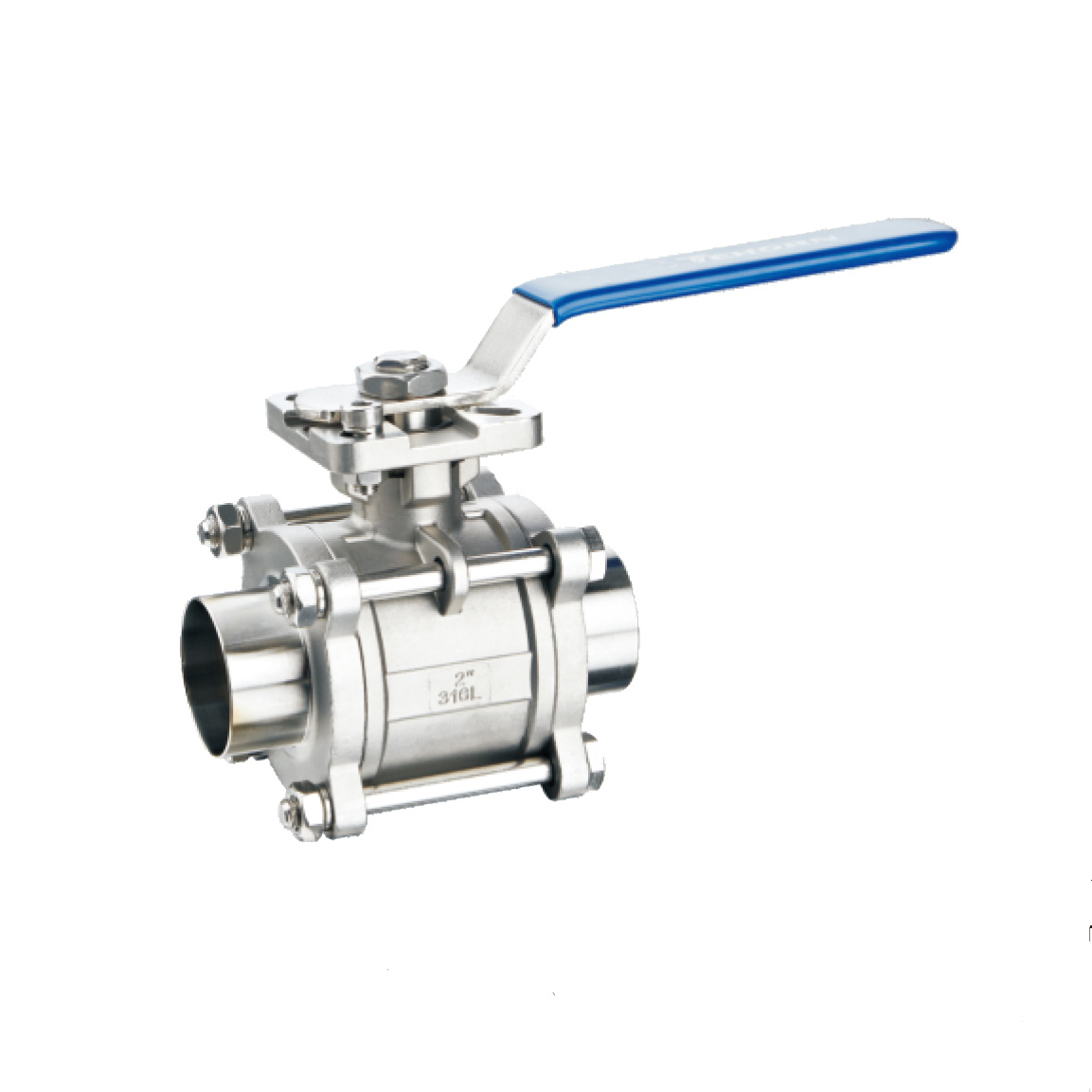

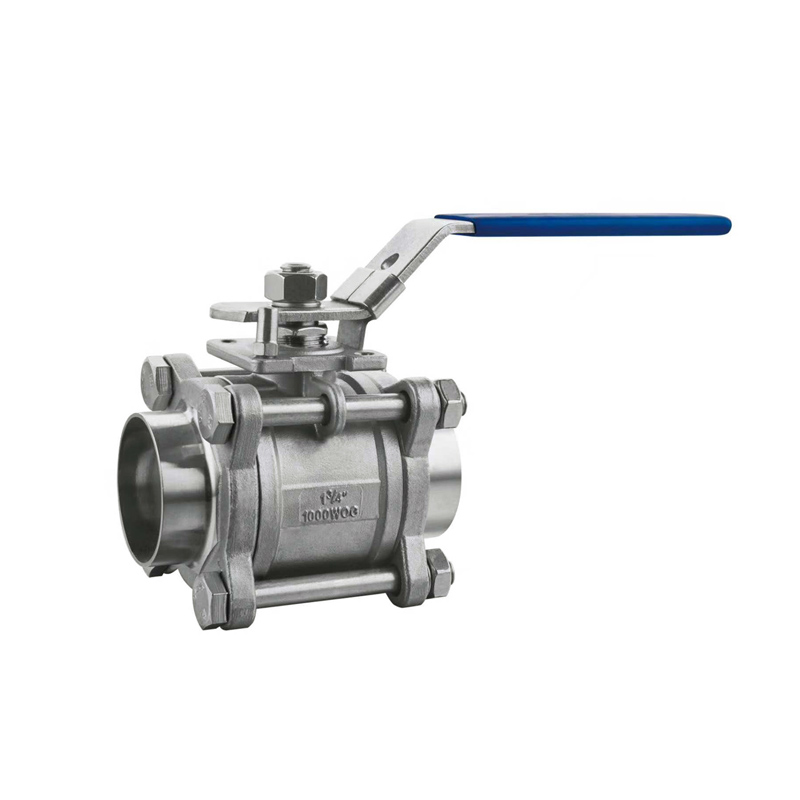

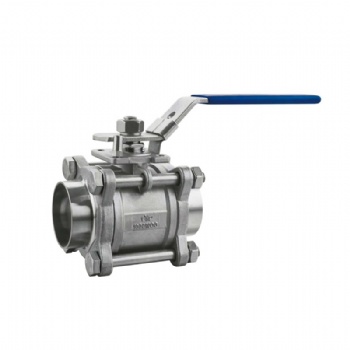

No. | PARTS | Materials | NO. | Parts | Materials |
1 | BONNET | CF8，CF8M,CF3M | 12 | PACKING | PTFE |
2 | GASKET | PTFE/TFM1600 | 13 | WEAR WASHER | PTFE+25%GF |
3 | SEAT | PTFE/TFM1600 | 14 | GLAND | 304 |
4 | BALL | CF8，CF8M,CF3M | 15 | DISC SPRING | 304 |
5 | BODY | CF8，CF8M,CF3M | 16 | NUT | 304 |
6 | BOLT | 304 | 17 | CROWN WAHSER | 304 |
7 | SPRING WASHER | 304 | 18 | WASHER | 304 |
8 | NUT | 304 | 19 | HANDLE | 304+PVC |
9 | Stem | 304/316 | 20 | HEX SOCKET BOLT | 304 |
10 | STEM WASHER | PTFE+25%GF | 21 | NUT | 304 |
11 | O-RING | FPM | |||
SIZE | d | D | T | L | H | h | KxK | A | B | W | H1 | |
3/8" | DN10 | 8 | 9.53 | 0.89 | 85 | 38 | 9 | 9x9 | 36 | 42 | 125 | 72 |
1/2" | DN15 | 10 | 12.7 | 1.65 | 85 | 38 | 9 | 9x9 | 36 | 42 | 125 | 72 |
3/4" | DN20 | 15 | 19.1 | 1.65 | 90 | 42 | 9 | 9x9 | 36 | 42 | 125 | 76 |
1" | DN25 | 22 | 25.4 | 1.65 | 98.2 | 48 | 9 | 9x9 | 36 | 42 | 125 | 82 |
1-1/2" | DN40 | 35 | 38.1 | 1.65 | 124 | 61 | 9 | 9x9 | 42 | 50 | 140 | 95 |
2" | DN50 | 47.5 | 50.8 | 1.65 | 137 | 79 | 14 | 14x14 | 50 | 70 | 180 | 115 |
2-1/2" | DN65 | 59 | 63.5 | 1.65 | 148 | 88 | 14 | 14x14 | 70 | 102 | 180 | 124 |
3" | DN80 | 73 | 76.2 | 1.65 | 198 | 108 | 17 | 17x17 | 70 | 102 | 260 | 148 |
4" | DN100 | 97.5 | 101.6 | 2.11 | 235 | 130 | 17 | 17x17 | 70 | 102 | 260 | 170 |
