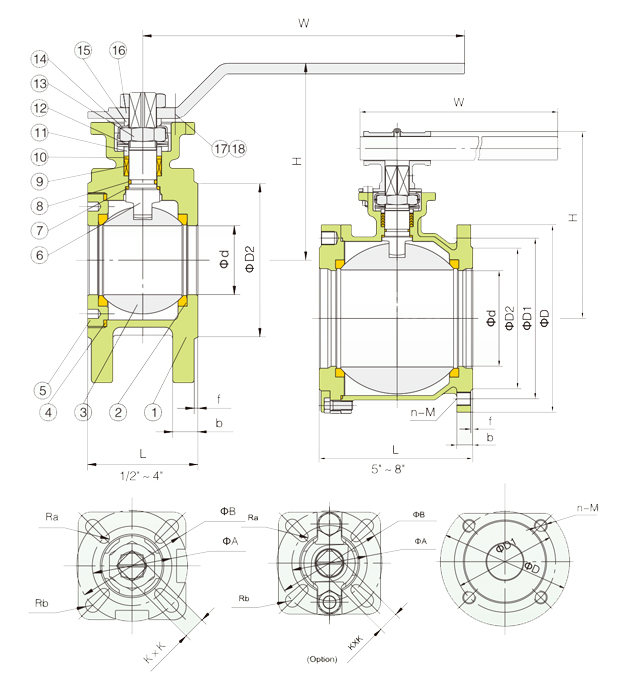

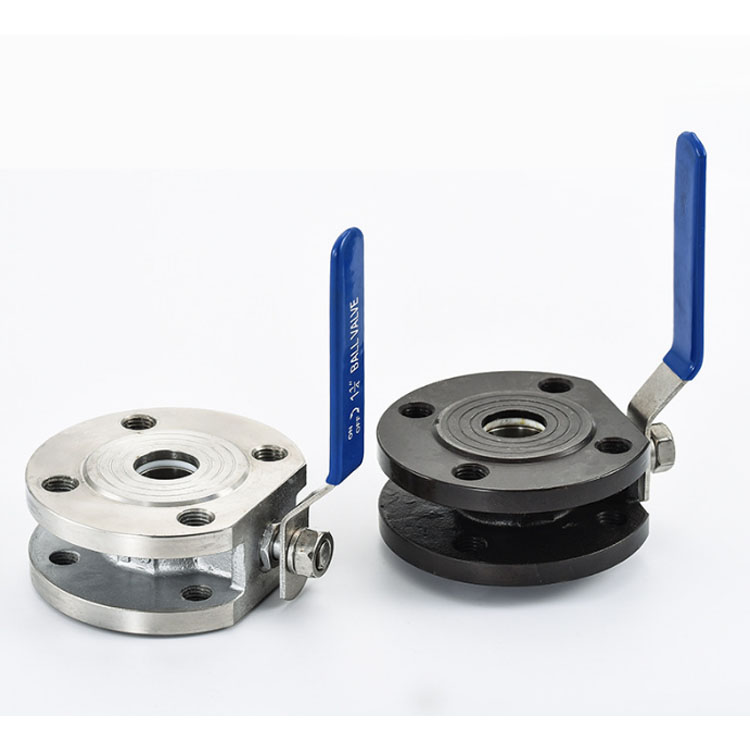

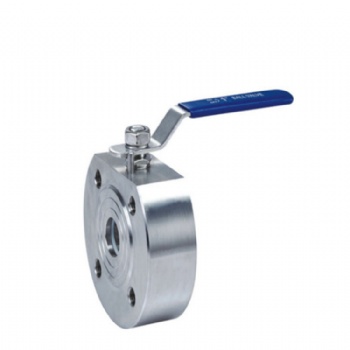

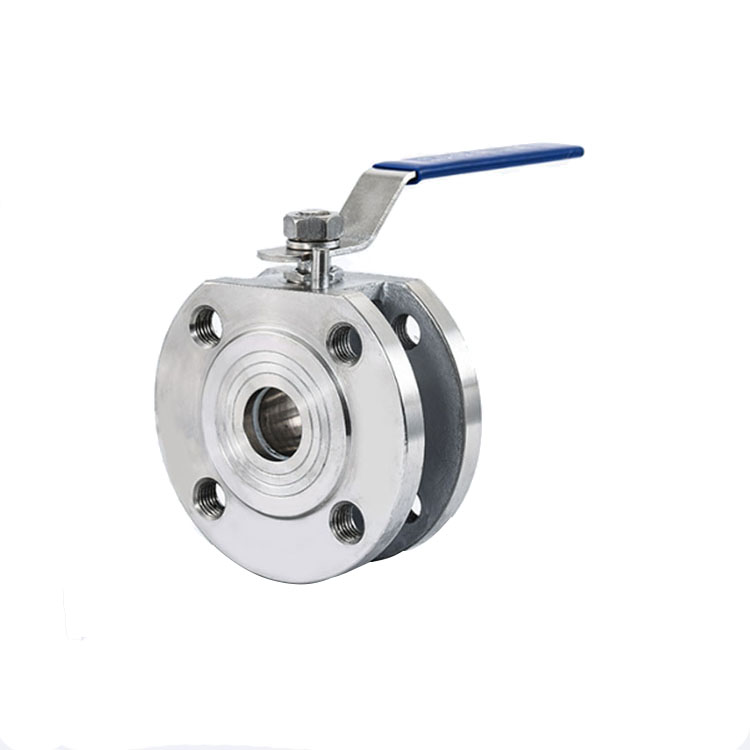

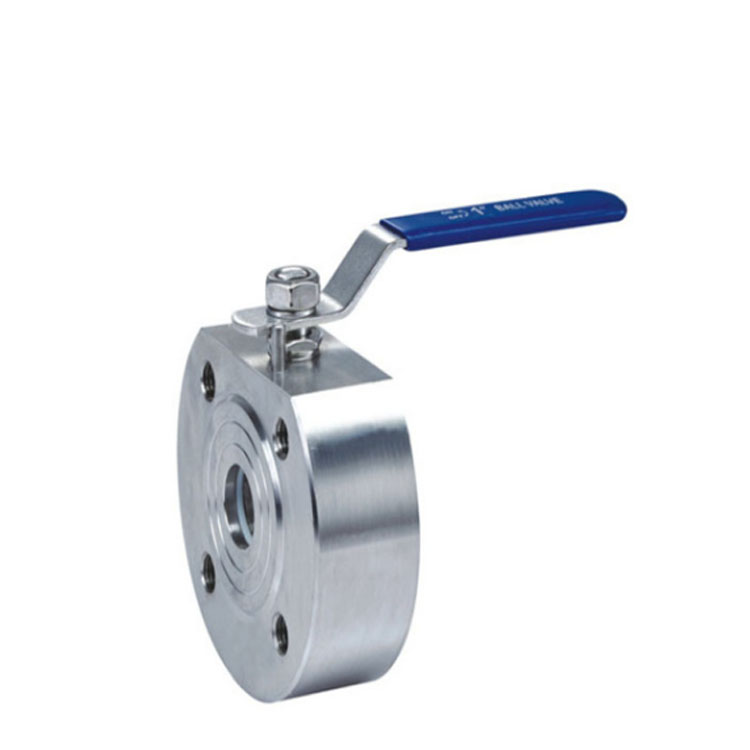

No. | PARTS | Materials | NO. | Parts | Materials |
1 | BODY | WCB,CF8,CF8M | 10 | WEAR WASHER | PTFE+25%GF |
2 | SEAT | PTFE | 11 | GLAND | 304 |
3 | BALL | CF8,CF8M | 12 | DISC SPRING | 304 |
4 | GASKET | PTFE | 13 | NUT | 304 |
5 | BONNET | WCB,CF8,CF8M | 14 | CROWN WASHER | 304 |
6 | STEM | 304,316 | 15 | WASHER | 304 |
7 | STEM WASHER | PTFE+25%GF | 16 | HANDLE | 304+PVC |
8 | O-RING | FPM | 17 | HEX SOCKET BOLT | 304 |
9 | PACKING | PTFE | 18 | NUT | 304 |
SIZE | L | d | D2 | D1 | D | b | f | n-M | H | W | |
1/2" | DN15 | 35 | 15 | 45 | 65 | 95 | 10 | 2 | 4-M12 | 81 | 150 |
3/4" | DN20 | 38 | 20 | 55 | 75 | 105 | 10.5 | 2 | 4-M12 | 86 | 150 |
1" | DN25 | 42 | 25 | 65 | 85 | 115 | 12 | 2 | 4-M12 | 93 | 180 |
1-1/4" | DN32 | 53 | 32 | 78 | 100 | 135 | 15 | 2 | 4-M16 | 103 | 180 |
1-1/2" | DN40 | 63 | 38 | 85 | 110 | 145 | 16 | 2.5 | 4-M16 | 120 | 210 |
2" | DN50 | 72 | 44 | 100 | 125 | 160 | 16.5 | 2.5 | 4-M16 | 127 | 210 |
2-1/2" | DN65 | 95 | 57 | 120 | 145 | 180 | 18 | 3 | 4-M16 | 144 | 260 |
3" | DN80 | 118 | 73 | 135 | 160 | 195 | 20 | 3 | 8-M16 | 154 | 260 |
4" | DN100 | 140 | 90 | 155 | 180 | 215 | 20 | 3 | 8-M16 | 172 | 330 |
5" | DN125 | 180 | 110 | 185 | 210 | 250 | 22 | 3 | 8-M16 | 220 | 650 |
6" | DN150 | 230 | 145 | 210 | 240 | 285 | 22 | 3 | 8-M20 | 245 | 800 |
8" | DN200 | 275 | 195 | 265 | 295 | 340 | 24 | 3 | 12-M20 | 340 | 1000 |
