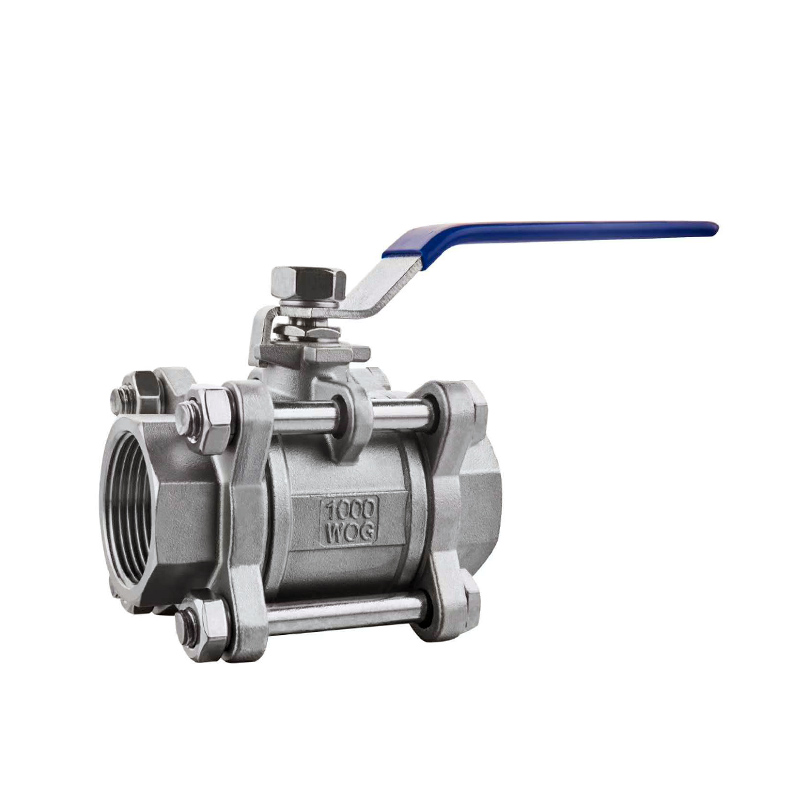

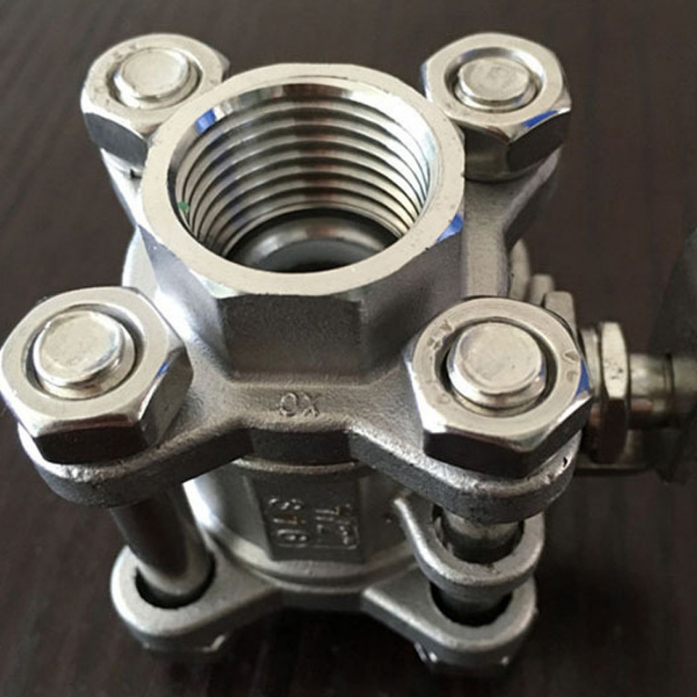

  • DN50 threaded SS 1000wog ball valve
  • DN50 threaded SS 1000wog ball valve
  • DN50 threaded SS 1000wog ball valve
DN50 threaded SS 1000wog ball valve DN50 threaded SS 1000wog ball valve DN50 threaded SS 1000wog ball valve

DN50 threaded SS 1000wog ball valve

Features
*FULL PORT,1/2"-2"(DN15-DN50)
*Workign pressure:1000WOG(PN63)
*Working temperatuare:-20℃-180℃
*Investment casting
*Blow-out proof stem
*lock device handle(option)
*Thread type end:AMSE B1.20.1(NPT),
                 DIN259/DIN 2999,BS21,
                 ISO288-1,ISO 7-1
*Socket weld type end :ASME B 16.11&DIN3239 part2
Materials
No.
PARTS
Materials
NO.
Parts
Materials
1
BONNET
WCB,CF8,CF8M
9
STEM
304,316
2
GASKET
PTFE
10
STEM WASHER
PTFE
3
SEAT
PTFE
11
PACKING
PTFE
4
BALL
CF8,CF8M
12
GLAND
304
5
BODY
WCB,CF8,CF8M
13
HANDLE
304+PVC
6
BOLT
304
14
SPRING WASHER
304
7
SPRING WASHER
304
15
NUT
304
8
NUT
304

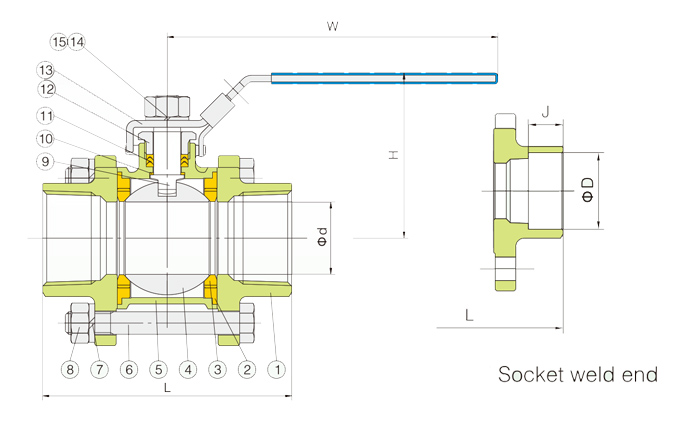

Dimensions(mm)
SIZE
d
L
H
W
D
J
1/4"
DN8
10
65
52
95
14.2
9.5
3/8"
DN10
12
65
52
95
17.6
9.5
1/2"
DN15
15
75
55
105
21.8
9.5
3/4"
DN20
20
80
59
128
27.2
12.5
1"
DN25
25
90
66
146
33.9
12.5
1-1/4"
DN32
32
110
71
146
42.7
12.5
1-1/2"
DN40
38
120
82
162
48.8
12.5
2"
DN50
50
140
90
192
61.2
16
2-1/2"
DN65
65
168
122
220
73.9
16
3"
DN80
80
194
135
250
89.8
16
4"
DN100
100
250
156
300
115.2
19
