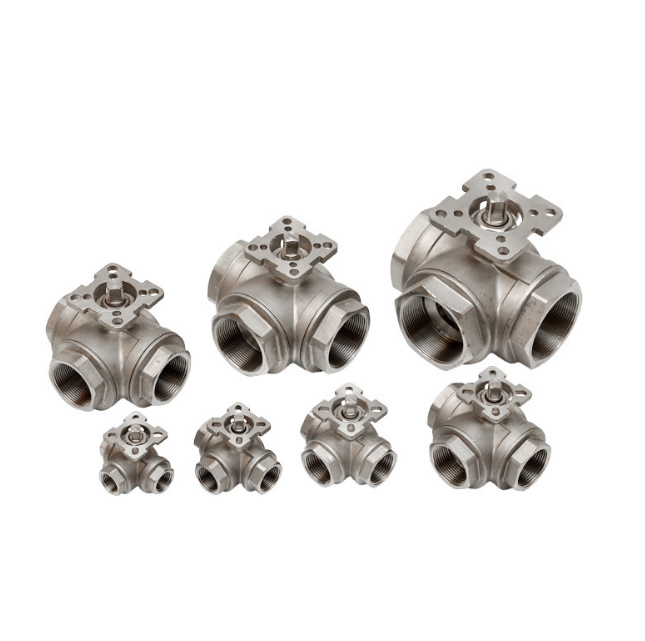

  • 3 way SS thread ball valve
  • 3 way SS thread ball valve
3 way SS thread ball valve 3 way SS thread ball valve

3 way SS thread ball valve

Features
*Reduced Port ,T port/L port (DN8-DN80)
*Working Pressure:1000WOG(PN63)
*Working Temperature:-20℃-180 ℃
*Investment Casting
*Blow-out Proof Stem
*Live-loading design
*Anti-static device(option)
*There are four seats
*360degree Rotary Handle
*Locking device handle(option)
*ISO 5211 direct mounting pad
*Automation Accessories(Option)
*Thread Type:AMSE B1.20.1(NPT)
             DIN 259/DIN 2999,BS 21,
             ISO 288-1,ISO 7-1,
Materials
No.
PARTS
Materials
NO.
Parts
Materials
1
BONNET
WCB,CF8,CF8M
10
WEAR WASHER
PTFE+25%GF
2
GASKET
PTFE
11
GLAND
304
3
SEAT
PTFE
12
DISC SPRING
304
4
BALL
CF8,CF8M
13
NUT
304
5
BODY
WCB,CF8,CF8M
14
CROWN WASHER
304
6
STEM
304316
15
WASHER
304
7
STEM WASHER
PTFE+25%GF
16
HANDLE
304+PVC
8
O-RING
FPM
17
HEX SOCKET BOLT
304
9
PACKING
PTFE
18
NUT
304

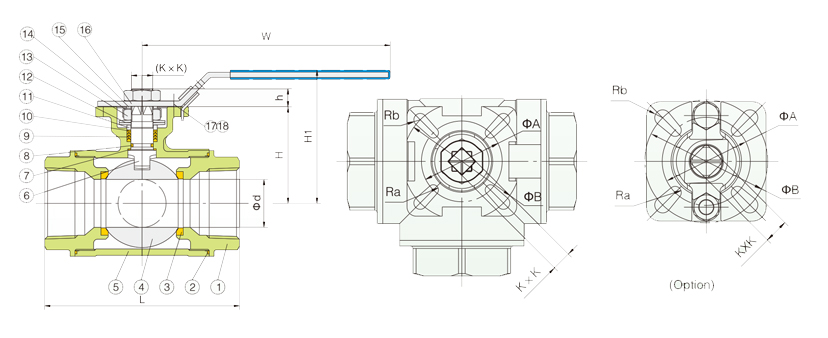

Dimensions(mm)
SIZE
d
L
H
h
KxK
A
B
Ra
Rb
W
H1
1/4"
DN8
10
71.5
34
9
9x9
36
42
3.0
3.0
125
62
3/8"
DN10
10
71.5
34
9
9x9
36
42
3.0
3.0
125
62
1/2"
DN15
10
71.5
34
9
9x9
36
42
3.0
3.0
125
62
3/4"
DN20
15
83.5
42
9
9x9
36
42
3.0
3.0
125
70
1"
DN25
18
90
52
9
9x9
42
50
3.0
3.5
140
82
1-1/4"
DN32
25
116
58
11
11x11
42
50
3.0
3.5
140
88
1-1/2"
DN40
32
133
67
14
14x14
50
70
3.5
4.5
180
97
2"
DN50
40
146
78
14
14x14
50
70
3.5
4.5
180
108
2-1/2"
DN65
50
200
97
17
17x17
70
102
4.5
5.5
260
133
3"
DN80
65
237
112
17
17x17
70
102
4.5
5.5
260
148
