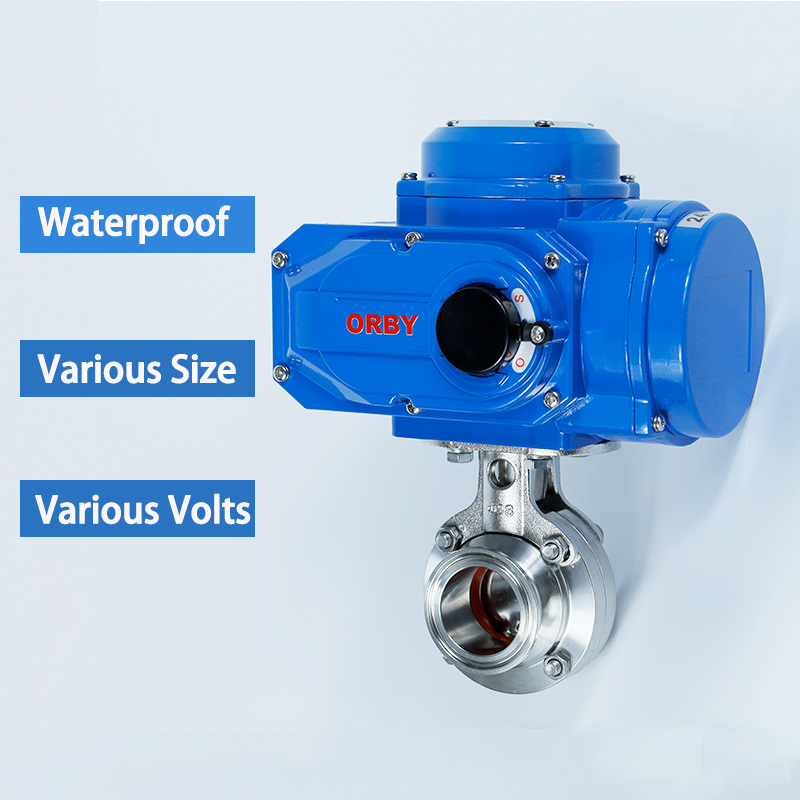

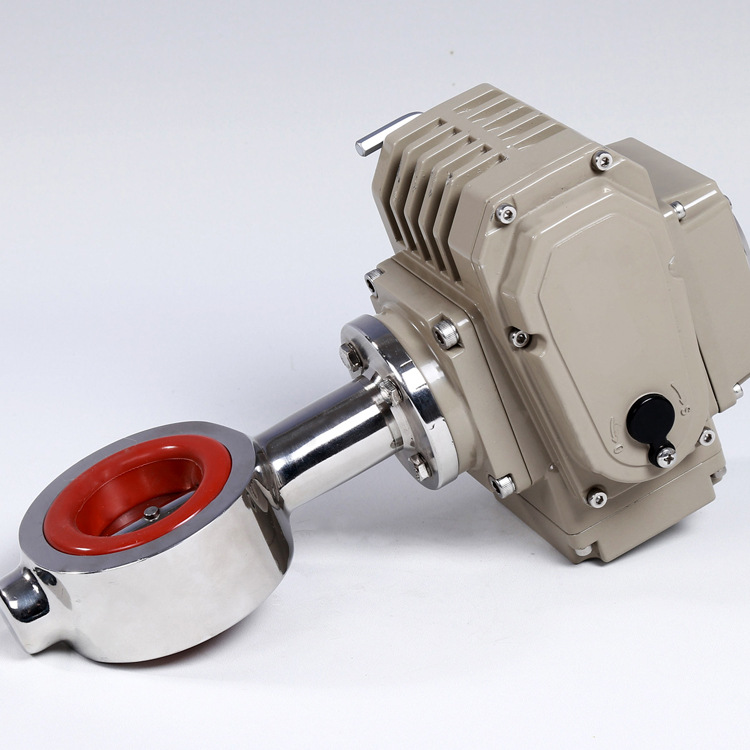

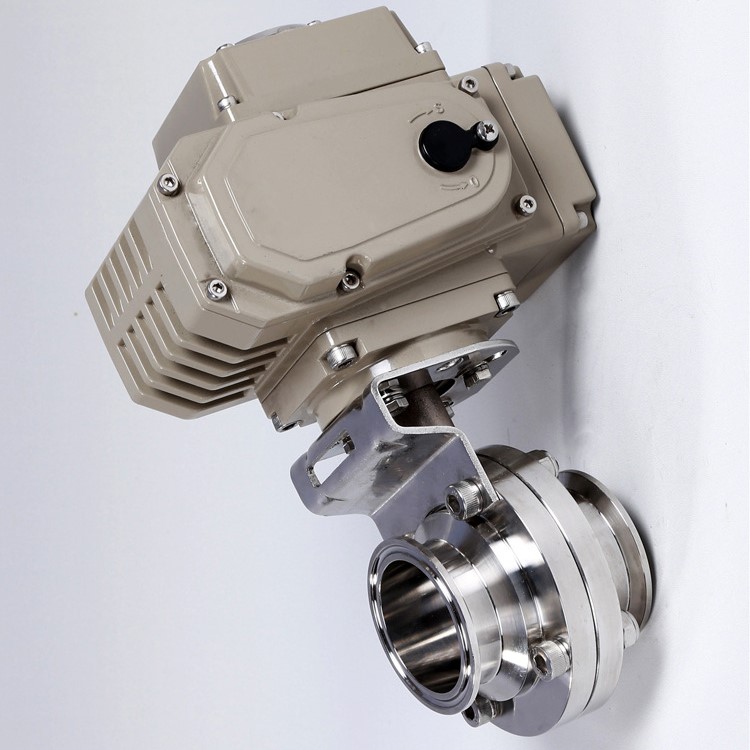

Electric Clamp Sanitary butterfly valve

 Technical Data
Specifications
Optionals
•  Quarter turn electric actuator
•  ON/OFF Type
•  Actuator working angle 90°
•  Regulation Type
•  Working torques: 30Nm to 2000 Nm.
4444-20 mA modulating positioner
•  Cycle time: 10S-95S(see chart)
1111-5 VDC modulating positioner
•  Protection Class IP65 & IP67
0000-10 VDC modulating positioner
ee(explosion-proof: Exd Ⅱ BT4 IP67 optional)
•  Display unit
Voltage Options:
Typical Applications
•  AC220V,AC24V,AC110V
•  Ball valve: DN15-300
•  DC24V,DC12V,AC380V
•  Butterfly valve: DN50-600

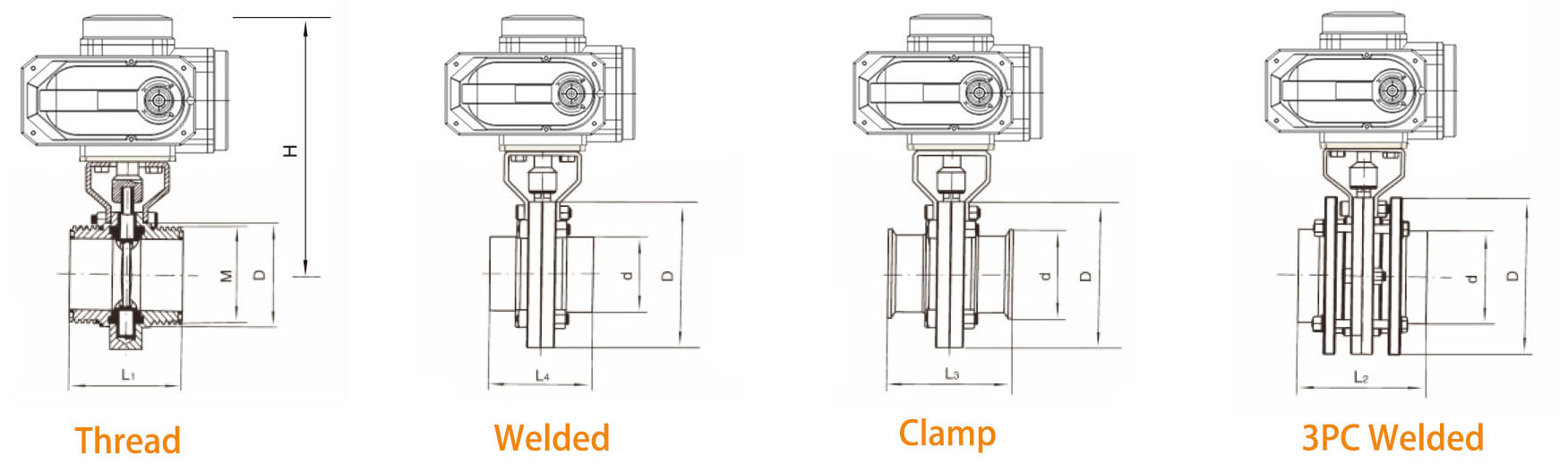

 Drawing and Dimensions
DN
(mm)
Outside Thread
Welded
Clamp
3PC Welded
L0
H
ISO
L1
D
M
L2
D
d
L3
D
d
L4
D
d
20
66
78
40x1/6
100
78
19.05
66
78
50.5
66
78
19.05
178
157
25
66
78
40x1/6
100
78
25.4
66
78
50.5
66
78
25.4
178
157
32
66
78
48x1/6
100
78
31.8
66
78
50.5
66
78
31.8
178
157
38
70
86
60x1/6
100
86
38.1
70
86
50.58
70
86
38.1
178
157
51
76
102
70x1/6
104
102
50.8
76
102
64
76
102
50.8
178
171
63
80
115
85x1/6
112
115
63.5
80
115
77.5
80
115
63.5
178
189
76
84
128
98x1/6
112
128
76.1
84
128
91
84
128
76.1
210
194
89
92
138
115x1/6
120
139
88.9
90
139
106
90
139
88.9
210
200
102
104
159
132x1/6
128
155
101.6
102
155
119
102
155
101.6
210
220
108
128
176
153x1/6
128
159
108
108
159
119
108
159
108
210
223
ON/OFF Electric Actuators
Model
03
05
10
15
30
60
100
200
Torque NM
30Nm
50Nm
100Nm
150Nm
300Nm
600Nm
1000Nm
2000Nm
Actuator speed
15S/60S
25S/50S
10S/15S/30S/60S
30S/60S
95S
95S
Working current
0.25A
0.25A
0.48A
0.68A
0.8A
1.2A
2A
2A
Motor power
6W/F
10W/F
25W/F
30W/F
40W/F
90W/F
100W/F
120W/F
Voltage
AC220V,AC24V,AC110V,DC24V,DC12V,AC380V 1Ph/3Ph
Modulating Electric Actuators
Model
03E
05E
10E
15E
30E
60E
100E
200E
Torque NM
30Nm
50Nm
100Nm
150Nm
300Nm
600Nm
1000Nm
2000Nm
Actuator speed
15S/60S
25S/50S
10S/15S/30S/60S
30S/60S
95S
95S
Working current
0.25A
0.25A
0.48A
0.68A
0.8A
1.2A
2A
2A
Motor power
6W/F
10W/F
25W/F
30W/F
40W/F
90W/F
100W/F
120W/F
Voltage
AC220V,AC24V,AC110V,DC24V,DC12V,AC380V 1Ph/3Ph
Input signal
4-20mADC,1-5VDC,0-10VDC
Output signal
4-20mADC,0-10VDC

Eight wiring types are available:
A: with limit position switch style (standard)
B: with neutral position switch style ( passive contact)
C: with potentiometer style
D: both potentiometer and neutral position switch style
E: with control module style ( Modulating Applications)
F: DC motor control circuit style
G: Three-phase current 380V control circuits style
H: Three-phase current 380V, both neutral position switch and potentiometer style
Contact us for the most recent product and technical information.
