  • Electric WCB flange ball valve
  • Electric WCB flange ball valve
Electric WCB flange ball valve Electric WCB flange ball valve

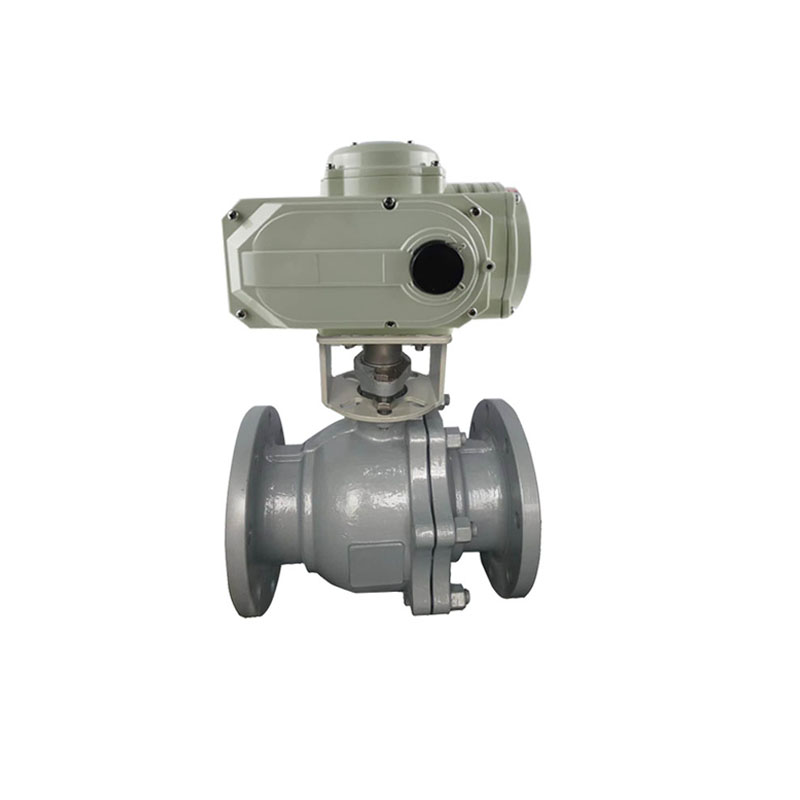

Electric WCB flange ball valve

 Technical Data
Specifications
Optionals
•  Quarter turn electric actuator
•  ON/OFF Type
•  Actuator working angle 90°
•  Regulation Type
•  Working torques: 30Nm to 2000 Nm.
4444-20 mA modulating positioner
•  Cycle time: 10S-95S(see chart)
1111-5 VDC modulating positioner
•  Protection Class IP65 & IP67
0000-10 VDC modulating positioner
ee(explosion-proof: Exd Ⅱ BT4 IP67 optional)
•  Display unit
Voltage Options:
Typical Applications
•  AC220V,AC24V,AC110V
•  Ball valve: DN15-300
•  DC24V,DC12V,AC380V
•  Butterfly valve: DN50-600

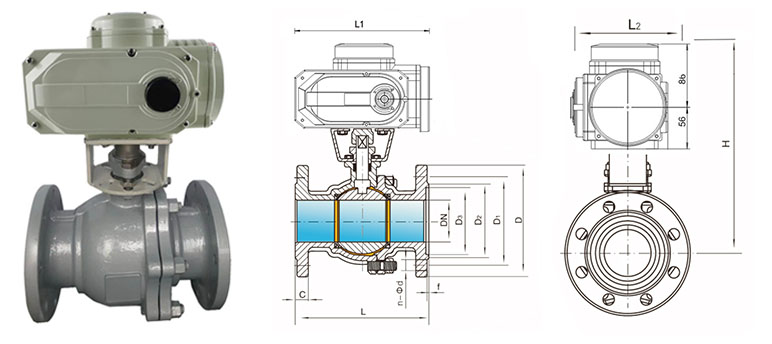

 Drawing and Dimensions
DN (mm)
L
L1
L2
H
D
D1
D2
C
f
n-ød
Actuator
15
130
178
121
204
95
65
46
14
2
4-ø14
05 Actuator
20
140
178
121
209
105
75
56
16
2
4-ø14
05 Actuator
25
150
178
121
214
115
85
65
16
2
4-ø14
05 Actuator
32
165
178
121
257
140
100
76
18
2
4-ø18
05 Actuator
40
180
210
131
274
150
110
84
18
3
4-ø18
10 Actuator
50
200
210
131
290
165
125
99
20
3
4-ø18
10 Actuator
65
220
210
131
310
185
145
118
20
3
4-ø18
15 Actuator
80
250
309
160
346
200
160
132
20
3
8-ø18
30 Actuator
100
280
309
160
378
220
180
156
22
3
8-ø18
30 Actuator
125
320
309
160
425
250
210
184
22
3
8-ø18
60 Actuator
150
360
309
177
468
285
240
211
24
3
8-ø22
100 Actuator
200
400
309
177
583
340
295
266
24
3
12-ø22
200 Actuator

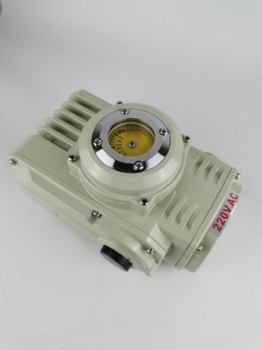

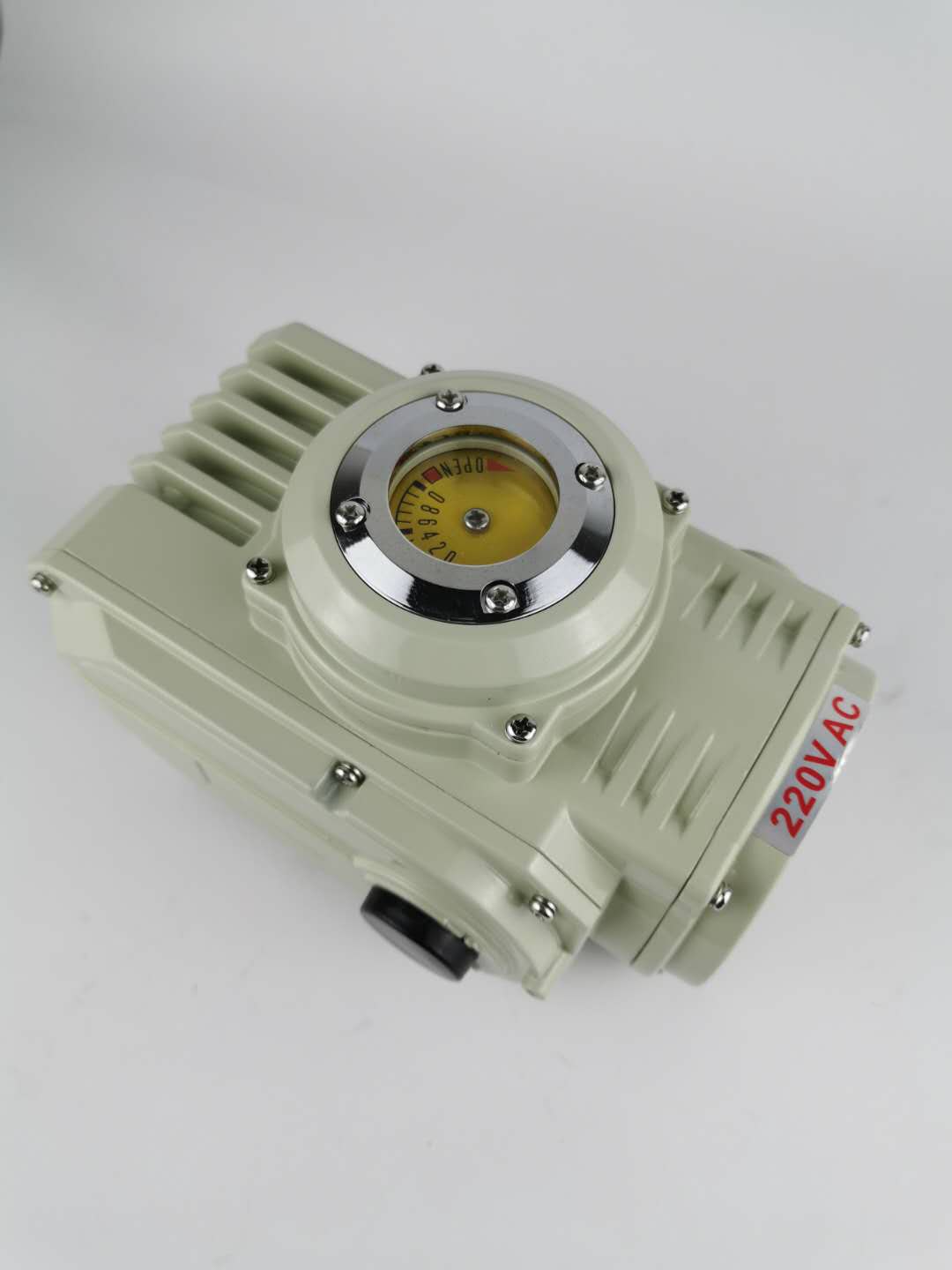

ON/OFF Electric Actuators
Model
03
05
10
15
30
60
100
200
Torque NM
30Nm
50Nm
100Nm
150Nm
300Nm
600Nm
1000Nm
2000Nm
Actuator speed
15S/60S
25S/50S
10S/15S/30S/60S
30S/60S
95S
95S
Working current
0.25A
0.25A
0.48A
0.68A
0.8A
1.2A
2A
2A
Motor power
6W/F
10W/F
25W/F
30W/F
40W/F
90W/F
100W/F
120W/F
Voltage
AC220V,AC24V,AC110V,DC24V,DC12V,AC380V 1Ph/3Ph
Modulating Electric Actuators
Model
03E
05E
10E
15E
30E
60E
100E
200E
Torque NM
30Nm
50Nm
100Nm
150Nm
300Nm
600Nm
1000Nm
2000Nm
Actuator speed
15S/60S
25S/50S
10S/15S/30S/60S
30S/60S
95S
95S
Working current
0.25A
0.25A
0.48A
0.68A
0.8A
1.2A
2A
2A
Motor power
6W/F
10W/F
25W/F
30W/F
40W/F
90W/F
100W/F
120W/F
Voltage
AC220V,AC24V,AC110V,DC24V,DC12V,AC380V 1Ph/3Ph
Input signal
4-20mADC,1-5VDC,0-10VDC
Output signal
4-20mADC,0-10VDC

Eight wiring types are available:
A: with limit position switch style (standard)
B: with neutral position switch style ( passive contact)
C: with potentiometer style
D: both potentiometer and neutral position switch style
E: with control module style ( Modulating Applications)
F: DC motor control circuit style
G: Three-phase current 380V control circuits style
H: Three-phase current 380V, both neutral position switch and potentiometer style
Contact us for the most recent product and technical information.
