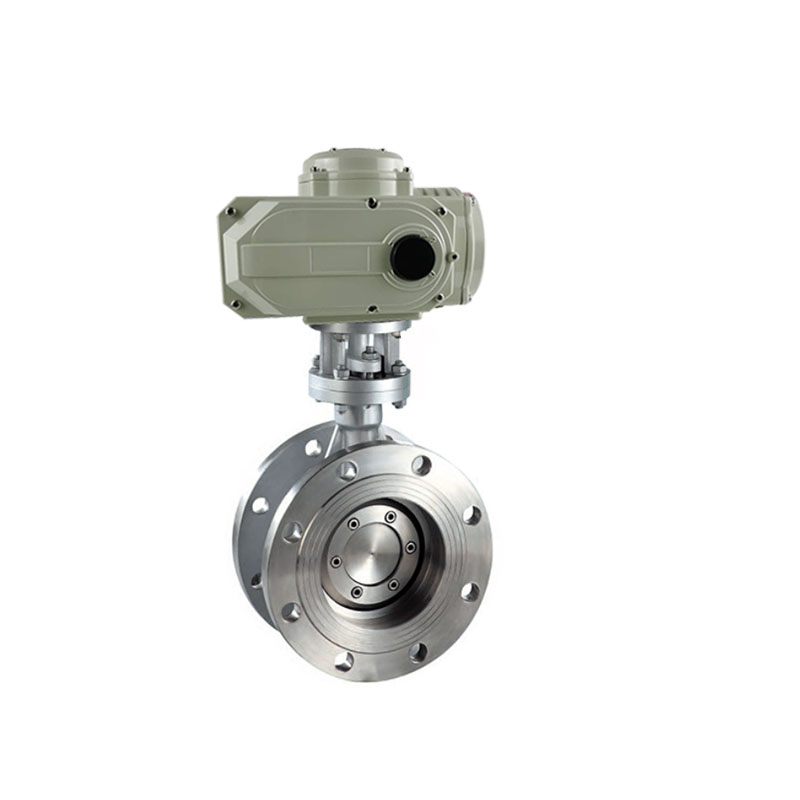

  • Flange triple eccentric butterfly valve
  • Flange triple eccentric butterfly valve
Flange triple eccentric butterfly valve Flange triple eccentric butterfly valve

Flange triple eccentric butterfly valve

 Technical Data
Specifications
Optionals

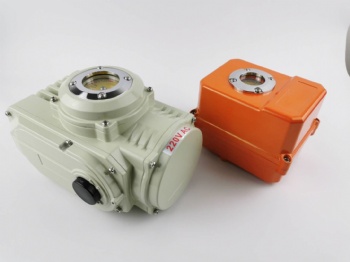

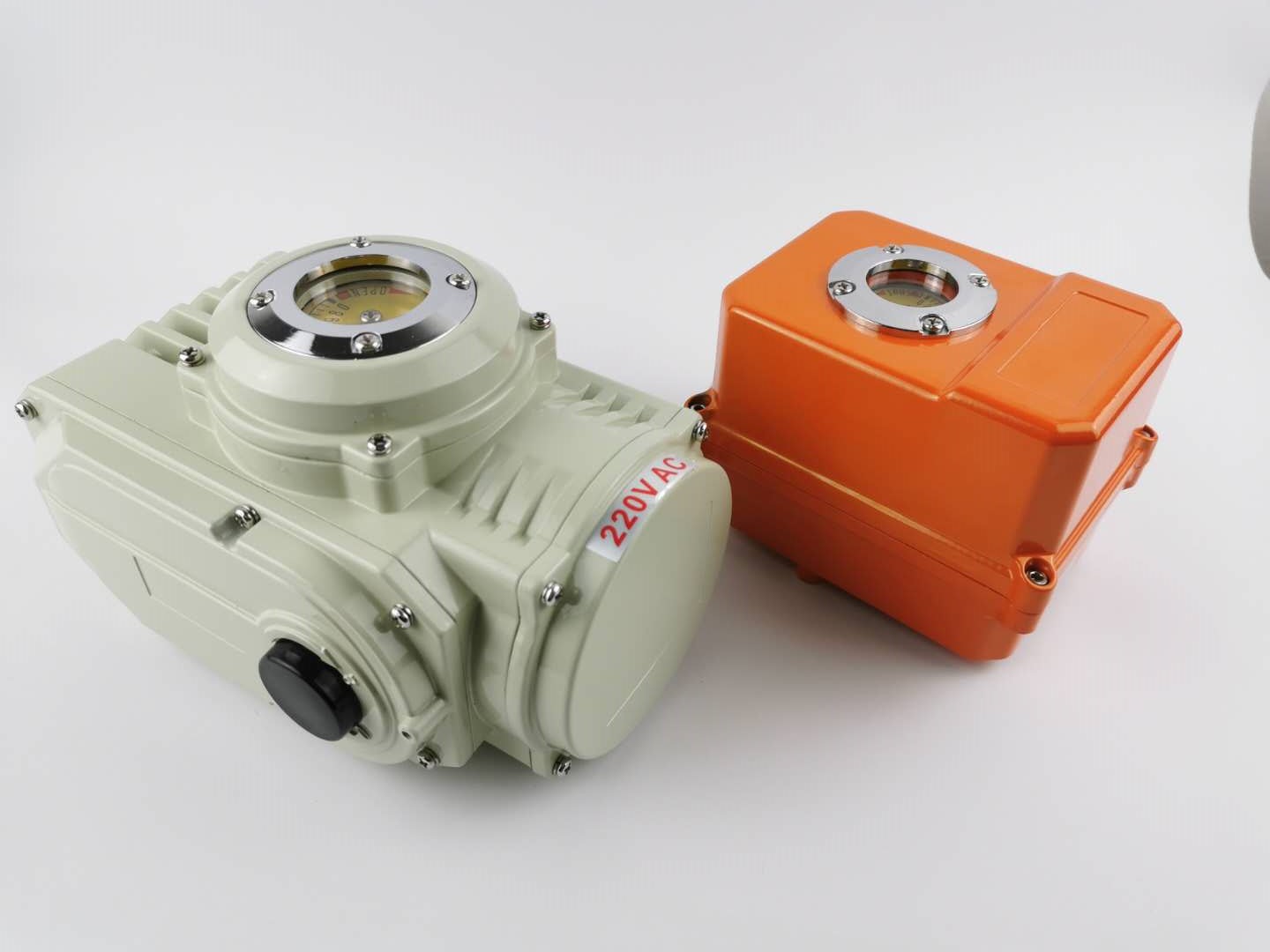

•  Quarter turn electric actuator
•  ON/OFF Type
•  Actuator working angle 90°
•  Regulation Type
•  Working torques: 30Nm to 2000 Nm.
4444-20 mA modulating positioner
•  Cycle time: 10S-95S(see chart)
1111-5 VDC modulating positioner
•  Protection Class IP65 & IP67
0000-10 VDC modulating positioner
ee(explosion-proof: Exd Ⅱ BT4 IP67 optional)
•  Display unit
Voltage Options:
Typical Applications
•  AC220V,AC24V,AC110V
•  Ball valve: DN15-300
•  DC24V,DC12V,AC380V
•  Butterfly valve: DN50-600

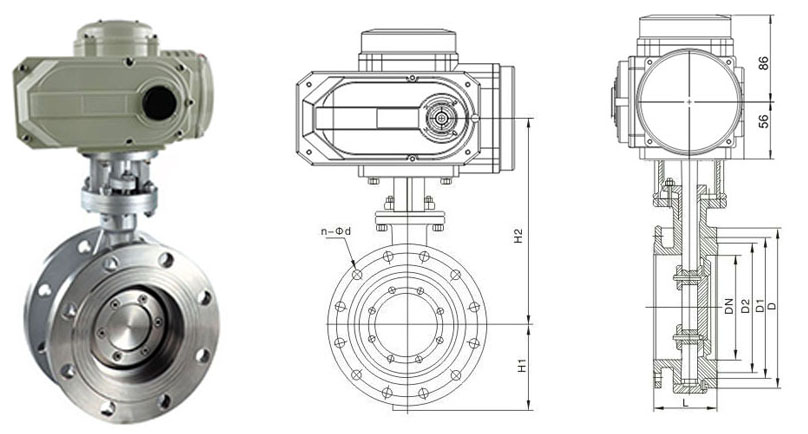

 Drawing and Dimensions
DN(mm)
SIZE
D1（PCD)
n-ød
D
D2
Actuator
L
H2
H1
GB
JIS
DIN
ANSI
50
108
277
85
125
120
125
121
4-ø18
140
90
05 Model
65
112
287
95
145
140
145
140
4-ø18
160
110
10 Model
80
114
365
106
160
150
160
152
8-ø18
190
125
15 Model
100
127
420
114
180
175
180
190
8-ø18
220
156
15 Model
125
140
436
130
210
210
210
216
8-ø18
250
184
30 Model
150
140
466
148
240
240
240
241
8-ø22
285
211
30 Model
200
152
593
180
295
290
295
298
12-ø22
340
266
60 Model
250
165
682
200
350
355
350
362
12-ø26
405
319
125 Model
300
178
725
250
400
400
400
431
12-ø26
460
370
250 Model
350
190
832
270
460
445
460
476
16-ø26
520
429
400 Model
400
216
862
300
515
510
515
540
16-ø30
580
480
600 Model
450
222
945
320
585
565
585
578
20-ø30
640
548
800 Model
500
229
1058
360
650
620
650
635
20-ø33
715
609
1000 Model
600
267
1108
420
770
730
770
750
20-ø36
840
720
1200 Model
ON/OFF Electric Actuators
Model
03
05
10
15
30
60
100
200
Torque NM
30Nm
50Nm
100Nm
150Nm
300Nm
600Nm
1000Nm
2000Nm
Actuator speed
15S/60S
25S/50S
10S/15S/30S/60S
30S/60S
95S
95S
Working current
0.25A
0.25A
0.48A
0.68A
0.8A
1.2A
2A
2A
Motor power
6W/F
10W/F
25W/F
30W/F
40W/F
90W/F
100W/F
120W/F
Voltage
AC220V,AC24V,AC110V,DC24V,DC12V,AC380V 1Ph/3Ph
Modulating Electric Actuators
Model
03E
05E
10E
15E
30E
60E
100E
200E
Torque NM
30Nm
50Nm
100Nm
150Nm
300Nm
600Nm
1000Nm
2000Nm
Actuator speed
15S/60S
25S/50S
10S/15S/30S/60S
30S/60S
95S
95S
Working current
0.25A
0.25A
0.48A
0.68A
0.8A
1.2A
2A
2A
Motor power
6W/F
10W/F
25W/F
30W/F
40W/F
90W/F
100W/F
120W/F
Voltage
AC220V,AC24V,AC110V,DC24V,DC12V,AC380V 1Ph/3Ph
Input signal
4-20mADC,1-5VDC,0-10VDC
Output signal
4-20mADC,0-10VDC

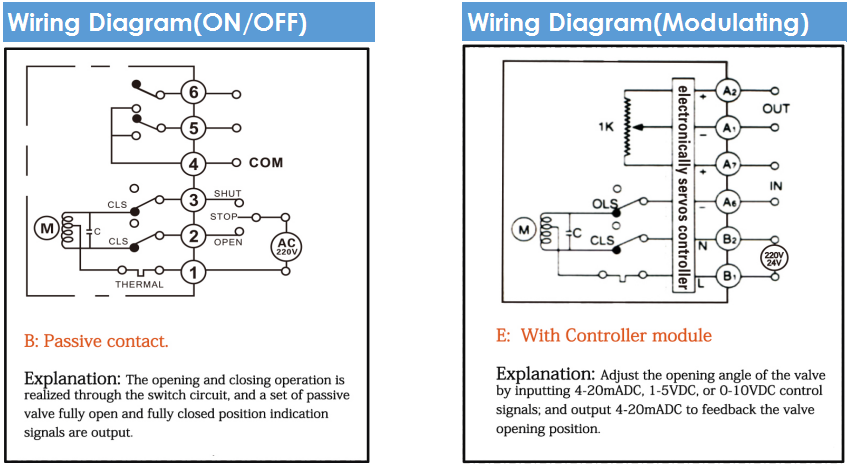

Eight wiring types are available:
A:  Active contact, Limit position switch.
B:  Passive contact.
C:  With potentiometer
D:  Passive indication with potentiometer
E:  With Controller module
F:  DC motor Control circuit.
G: Three-phase 380VAC motor control circuit
H: Three-phase AC 380V with potentiometer
Contact us for the most recent product and technical information.
