PVC CPVC valve

Single union check valve

EMAIL INQUIRY

ADVANTAGES:

1):The inner ball adopts a U-shaped design, uses the weight of water itself, eliminates the need for metal springs, and can be installed horizontally or vertically, with better water stopping effect;

2):The ribs in the valve body better guide the hemisphere, making the sealing performance better and more stable.

Product description

Materials：UPVC,CPVC,PPH

SIZE: 1/2"-4"

Connection: Solvent socket，Thread

Standard：ANSI,DIN,JIS

Pressure:150PSI

Temp: UPVC(0-45℃）；CPVC.PPH(0-95℃）

Body color:UPVC(Dark Gray),CPVC(LightGray),PPH(Beige）

Main parts and Materials

Body	PP,PVC,CPVC
Ball	PP,PVC,CPVC
Seat carrier	PP,PVC,CPVC
Seat	EPDM,VITON
Union Nut	PP,PVC,CPVC
End Connector	PP,PVC,CPVC

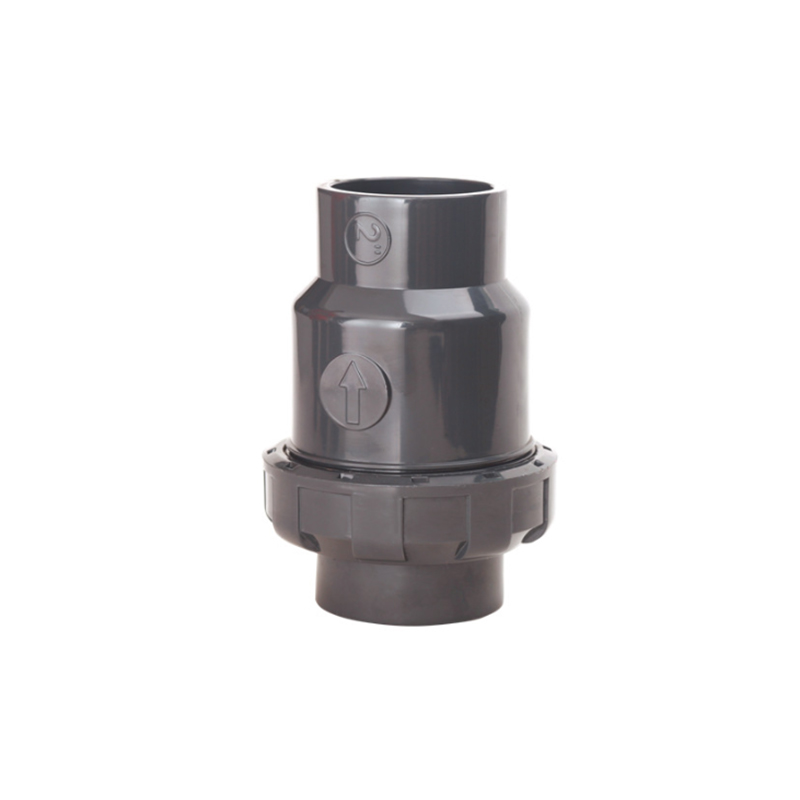

Products pictures

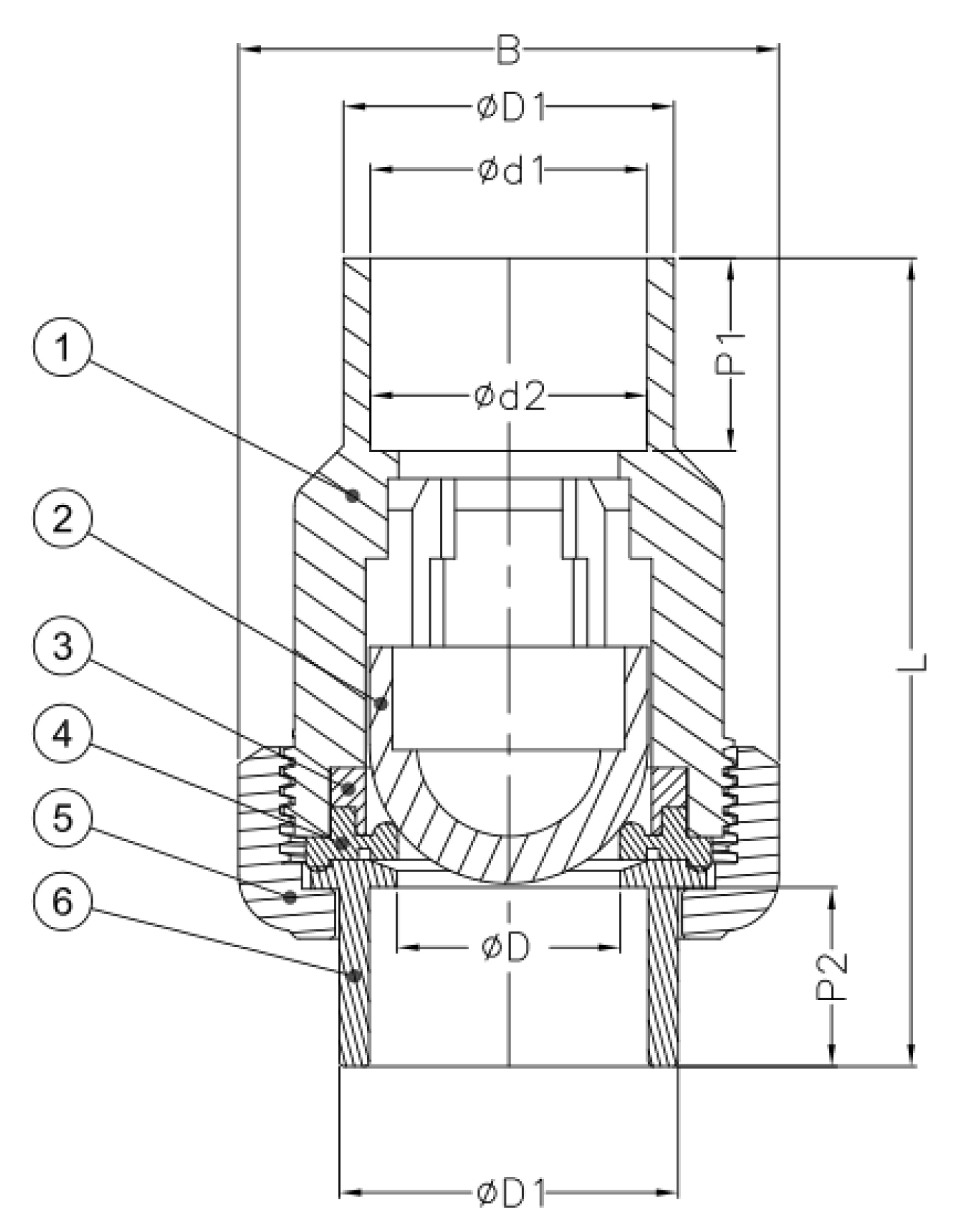

Drawing

Dimensions(mm)

SIZE	D	B	L	P1	P2	ANSI		DIN		JIS		CNS
SIZE	D	B	L	P1	P2	d1	d2	d1	d2	d1	d2	d1	d2
15(1/2")	15	54.2	87.6	22.2	21.8	21.54	21.23	20.3	20.1	22.4	21.73	22.4	21.9
20(3/4")	20	63.2	103.8	25.7	23.8	26.87	26.57	25.3	25.1	26.45	25.69	26.4	25.9
25(1")	25	73.8	121.9	27.5	25.4	33.65	33.27	32.3	32.1	32.55	31.7	34.5	33.9
32(1-1/4")	32	84.6	136.4	31.8	29.3	42.42	42.04	40.3	40.1	38.6	37.65	42.5	41.9
40(1-1/2")	40	97.8	147.3	35	32.7	48.56	48.11	50.3	50.1	48.7	47.74	48.6	47.9
50(2")	50	117.3	166.6	38	35.6	60.63	60.17	63.3	63.1	60.8	59.78	60.6	59.9
65(2-1/2")	65	150.2	245	65	47	73.38	72.85	75.3	75.1	76.6	75.68	76.7	75.9
80(3")	80	169	270	70	50	89.31	88.7	90.4	90.1	89.6	88.55	89.7	88.9
100(4")	100	211.3	301	70	60	114.76	114.1	110.1	110.1	114.7	113.6	115	113.8
