Materials：UPVC,CPVC,PPH |
SIZE: 1/2"-4" |
Connection: Solvent socket，Thread |
Standard：ANSI,DIN,JIS |
Pressure:150PSI |
Temp: UPVC(0-45℃）；CPVC.PPH(0-95℃） |
Body color:UPVC(Dark Gray),CPVC(LightGray),PPH(Beige） |

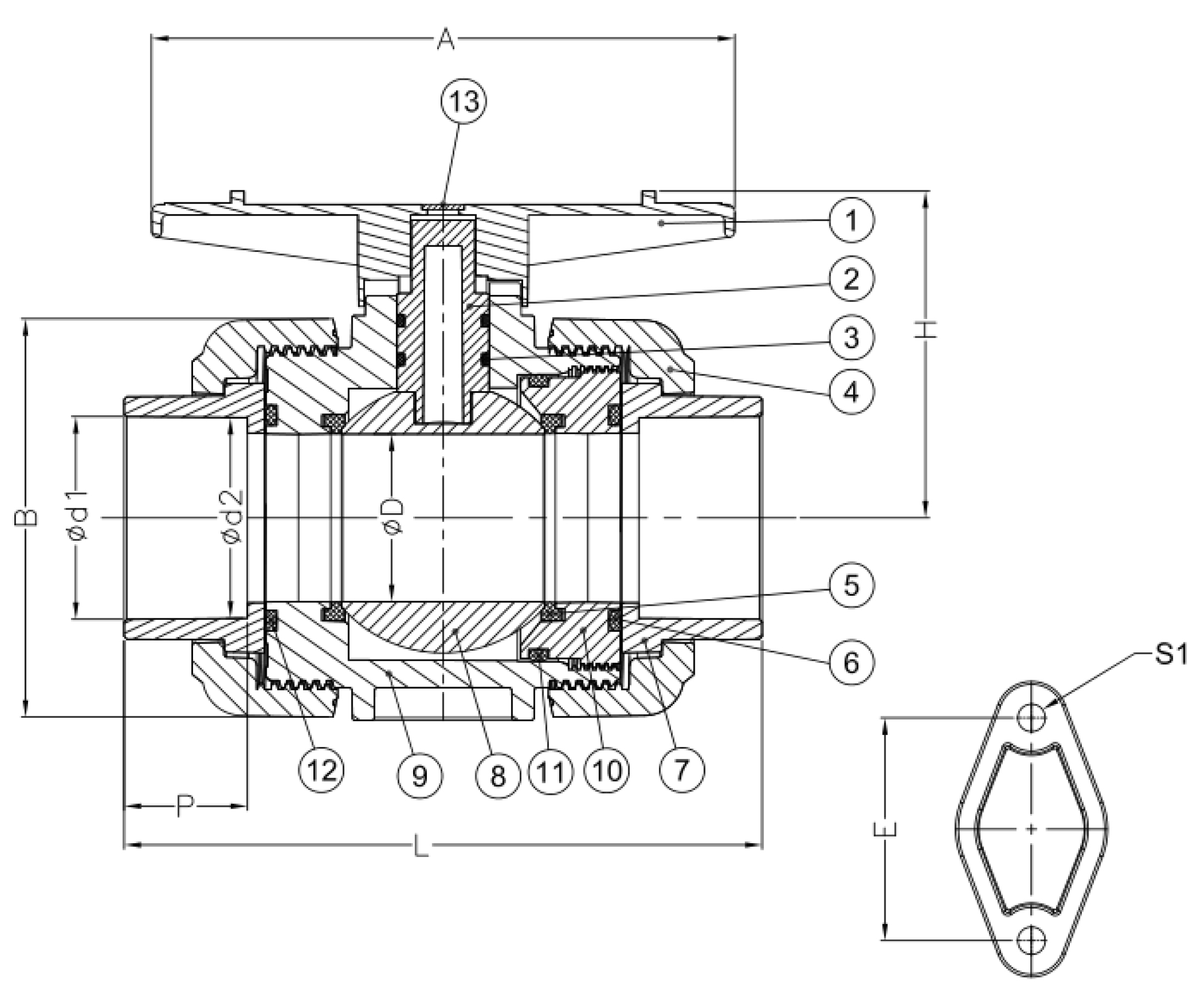

Handle | ABS |
Stem | PP,PVC,CPVC |
Stem O'ring | EPDM,VITON |
Seat | PTFE |
Ball | PP,PVC,CPVC |
Body | PP,PVC,CPVC |
2 Seat O'ring | EPDM,VITON |
Solid End O'ring | EPDM,VITON |
DN | inch | DIN(d2) | ANSI | JIS | Thd/in (BSPT) | L | B | A | H |
15 | 1/2 | ø20 | ø21.3 | 22 | 106 | 54.2 | 85.3 | 49.8 | |
20 | 3/4 | ø25 | ø26.7 | 26 | 14 | 115 | 63.1 | 89.8 | 55 |
25 | 1 | ø32 | ø33.4 | 32 | 14 | 126.5 | 73.7 | 105.8 | 64.4 |
32 | 1-1/4 | ø40 | ø42.2 | 38 | 11.5 | 142.7 | 84.5 | 116 | 75.2 |
40 | 1-1/2 | ø50 | ø48.3 | 48 | 11.5 | 156.5 | 97.7 | 128 | 88.3 |
50 | 2 | ø63 | ø60.3 | 60 | 11.5 | 172 | 117.5 | 139.6 | 104.3 |
65 | 2-1/2 | ø75 | ø73 | 76 | 11.5 | 256 | 147 | 140.2 | 118.5 |
80 | 3 | ø90 | ø88.9 | 89 | 8 | 266 | 164 | 150.6 | 120.6 |
100 | 4 | ø110 | ø114.3 | 114 | 8 | 337 | 204 | 16.9 | 130.1 |
125 | 5 | ø140 | ø141.3 | 140 | |||||
150 | 6 | ø160 | ø168.3 | 165 | |||||
200 | 8 | ø225 | ø219 | 216 |
