Materials：PVDF,UPVC,CPVC,PPH |
SIZE: DN50-DN150 |
Connection: Wafer |
Standard：ANSI,DIN,JIS |
Pressure: 150PSI |
Temp: UPVC(0-45℃）；CPVC.PPH(0-95℃） |
Body color:UPVC(Dark Gray),CPVC(LightGray),PPH(Beige） |
Body | FRPP.PVDF.UPVC.CPVC.PPH |
Dis | FRPP.PVDF.UPVC.CPVC.PPH |
Stem | SS |
O-ring | EPDM, FDM |
Lever | ABS |
Nut | SS |
Seat | EPDM, FDM |

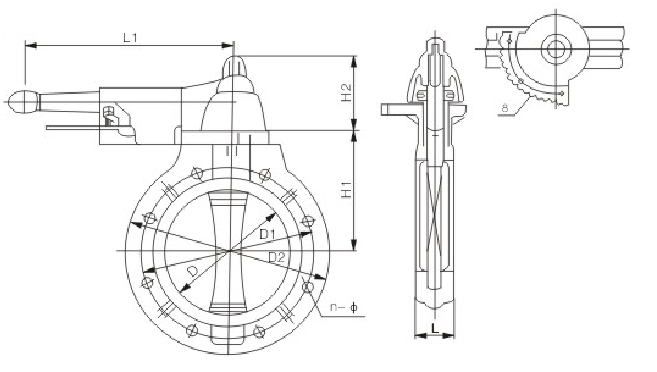

SIZE | D | D1 | D2 | L1 | L | H1 | H2 | n-φ | ||
ANSI | DIN | JIS | ||||||||
50(2") | 56 | 120 | 125 | 120 | 160 | 200 | 40 | 100 | 70 | 4-18 |
65(2-1/2") | 71 | 140 | 145 | 145 | 180 | 220 | 45 | 112 | 70 | 4-18 |
80(3") | 85 | 152 | 160 | 150 | 195 | 280 | 46 | 120 | 85 | 8-18 |
100(4") | 105 | 190 | 180 | 175 | 225 | 280 | 55 | 127 | 85 | 8-18 |
125(5") | 131 | 216 | 210 | 210 | 255 | 300 | 62 | 163 | 93 | 8-18 |
150(6") | 153 | 240 | 240 | 240 | 280 | 300 | 67 | 175 | 93 | 8-22 |
