No. | PARTS | Materials | NO. | Parts | Materials |
1 | BODY | WCB,CF8,CF8M | 9 | O-ring | VITON |
2 | SEAT | PTFE,PPL | 10 | Filler | PTFE,PPL |
3 | BALL | SS304,SS316,SS316L | 11 | Filling clamping | SS304 |
4 | Bonnet | WCB,CF8,CF8M | 12 | spring | SS304 |
5 | Cover board | WCB,CF8,CF8M | 13 | NUT | 2H,SS304 |
6 | Middle head gasket | PTFE,PPL | 14 | Gland of valve | CF8 |
7 | Stem | SS304,SS316,SS316L | 15 | Screw | B7,SS304 |
8 | Inverted seal | PTFE,PPL | 16 | Screw | B7,SS304 |

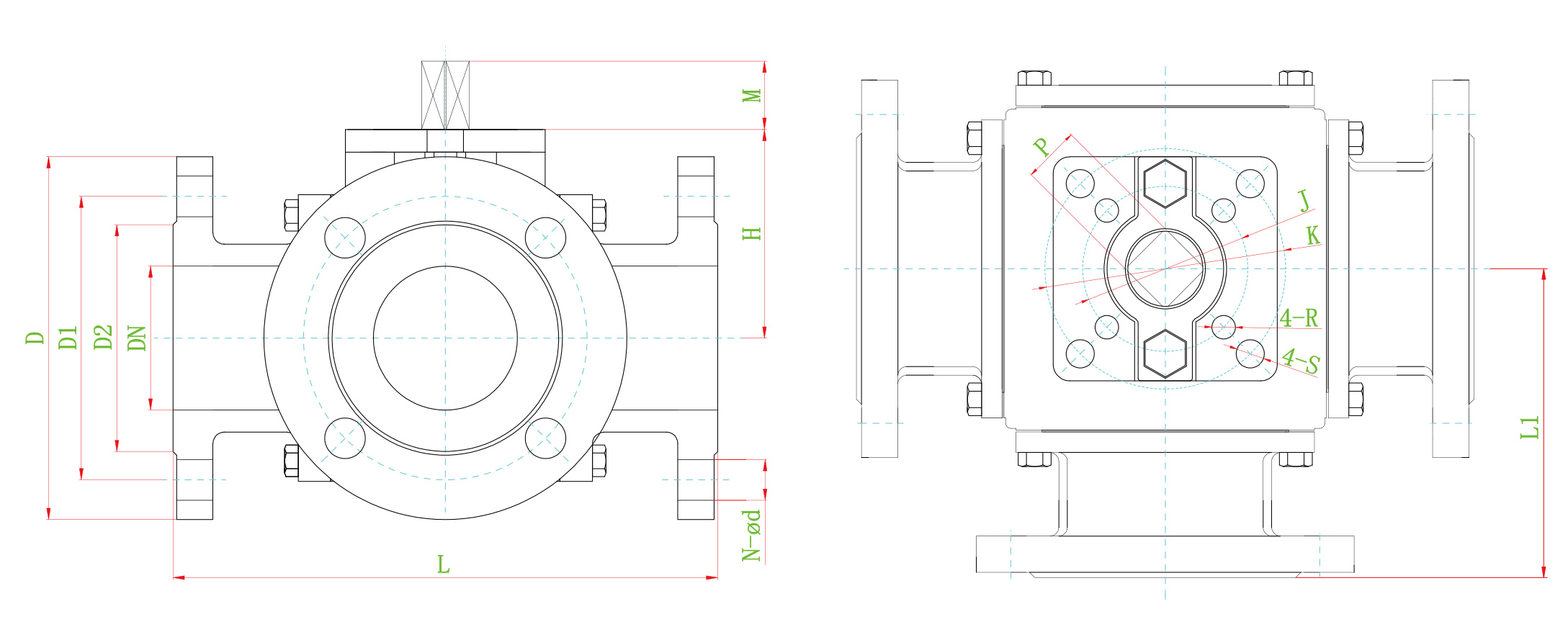

SIZE | L | GB PN16 | #150LB | #300LB | JIS10K | M | H | N-ød | |
1/2" | DN15 | 150 | 65 | 60 | 67 | 70 | 13 | 58 | 4-ø14 |
3/4" | DN20 | 160 | 75 | 70 | 83 | 75 | 16 | 61 | 4-ø14 |
1" | DN25 | 180 | 85 | 80 | 89 | 90 | 16 | 72 | 4-ø14 |
1-1/4" | DN32 | 200 | 100 | 89 | 98 | 100 | 16 | 81 | 4-ø18 |
1-1/2" | DN40 | 220 | 110 | 98 | 114 | 105 | 19 | 103 | 4-ø18 |
2" | DN50 | 240 | 125 | 121 | 127 | 120 | 19 | 113 | 4-ø18 |
2-1/2" | DN65 | 260 | 145 | 140 | 150 | 140 | 19 | 120 | 8-ø18 |
3" | DN80 | 280 | 160 | 152 | 168 | 150 | 24 | 162 | 8-ø18 |
4" | DN100 | 320 | 180 | 190 | 200 | 175 | 24 | 184 | 8-ø18 |
5" | DN125 | 380 | 210 | 216 | 235 | 210 | 29 | 215 | 8-ø18 |
6" | DN150 | 440 | 240 | 241 | 270 | 240 | 29 | 250 | 8-ø22 |
8" | DN200 | 550 | 295 | 298 | 330 | 290 | 38 | 334 | 12-ø22 |
10" | DN250 | 670 | 350 | 362 | 387 | 355 | 38 | 380 | 12-ø26 |
