Materials No. | PARTS | Materials | NO. | Parts | Materials |
1 | BODY | WCB,CF8,CF8M | 9 | O-ring | VITON |
2 | SEAT | PTFE,PPL | 10 | Filler | PTFE,PPL |
3 | BALL | SS304,SS316,SS316L | 11 | Filling clamping | SS304 |
4 | Bonnet | WCB,CF8,CF8M | 12 | spring | SS304 |
5 | Cover board | WCB,CF8,CF8M | 13 | NUT | 2H,SS304 |
6 | Middle head gasket | PTFE,PPL | 14 | Gland of valve | CF8 |
7 | Stem | SS304,SS316,SS316L | 15 | Screw | B7,SS304 |
8 | Inverted seal | PTFE,PPL | 16 | Screw | B7,SS304 |

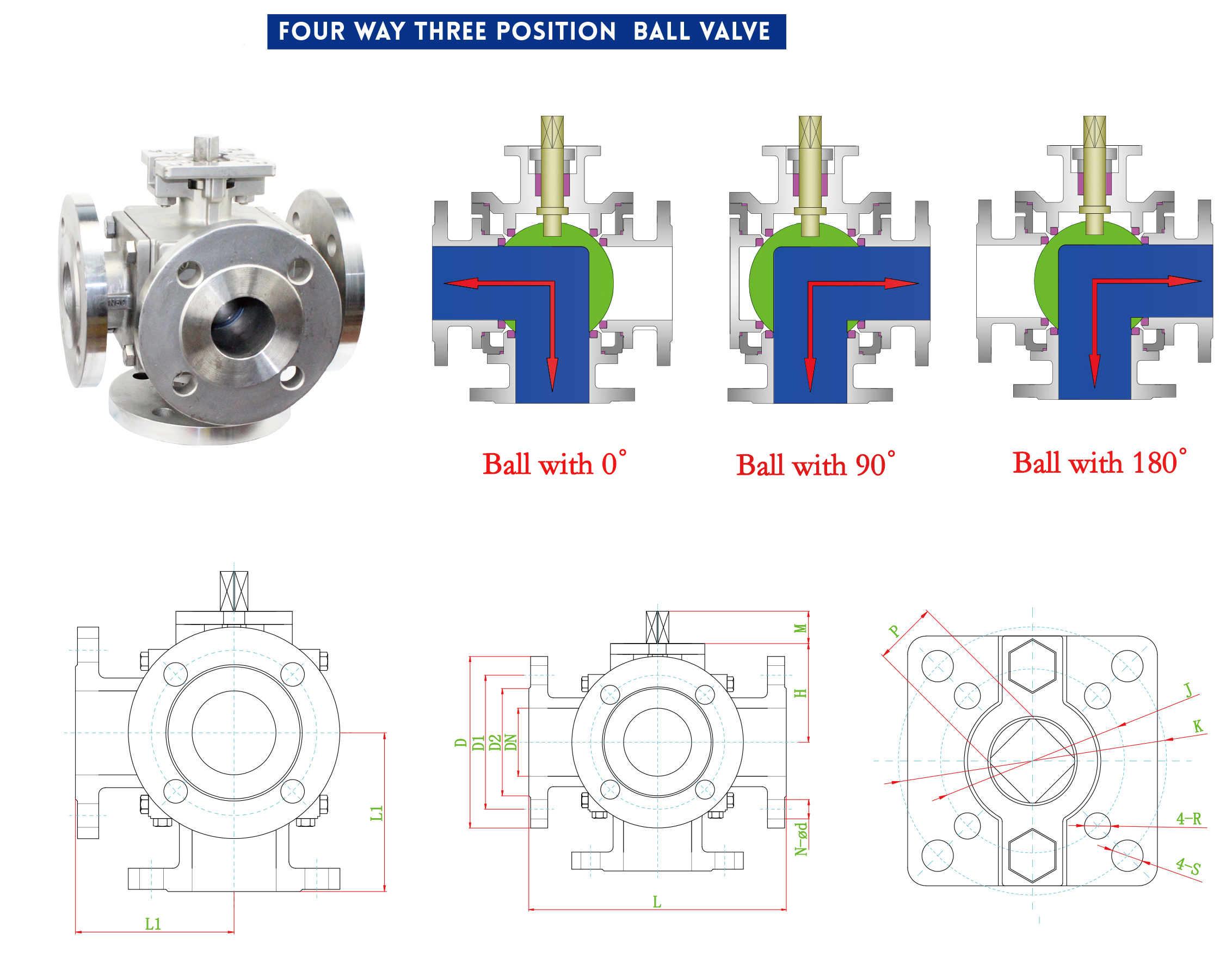

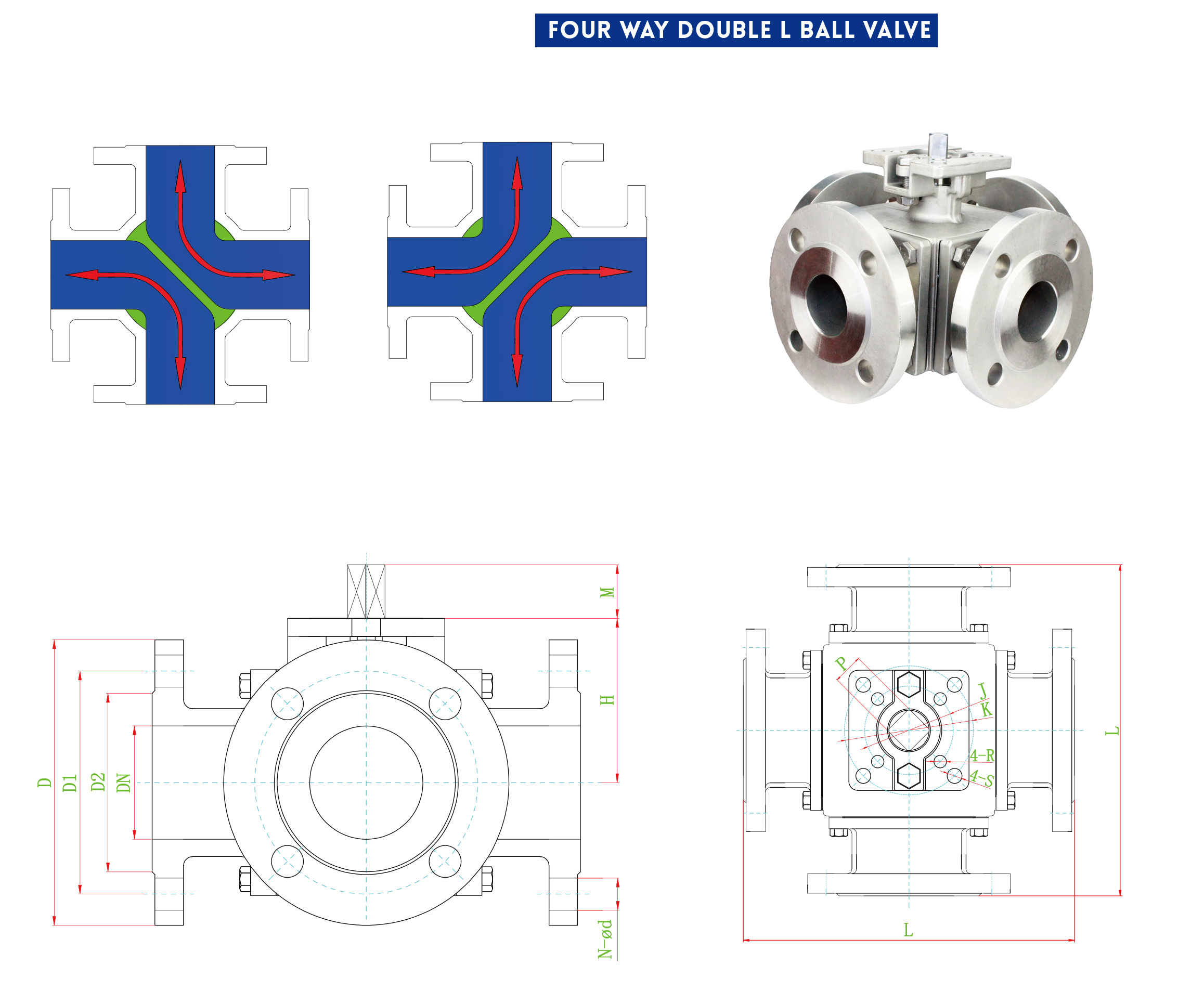

SIZE | L | D2 | D1 | D | M | H | J | N-ød | |
1/2" | DN15 | 150 | 45 | 65 | 95 | 13 | 58 | 42 | 4-ø14 |
3/4" | DN20 | 160 | 58 | 75 | 105 | 16 | 61 | 50 | 4-ø14 |
1" | DN25 | 180 | 68 | 85 | 115 | 16 | 72 | 50 | 4-ø14 |
1-1/4" | DN32 | 200 | 78 | 100 | 140 | 16 | 81 | 50 | 4-ø18 |
1-1/2" | DN40 | 220 | 88 | 110 | 150 | 19 | 103 | 70 | 4-ø18 |
2" | DN50 | 240 | 102 | 125 | 165 | 19 | 113 | 70 | 4-ø18 |
2-1/2" | DN65 | 260 | 122 | 145 | 185 | 19 | 120 | 70 | 8-ø18 |
3" | DN80 | 280 | 138 | 160 | 200 | 24 | 162 | 125 | 8-ø18 |
4" | DN100 | 320 | 158 | 180 | 220 | 24 | 184 | 15 | 8-ø18 |
5" | DN125 | 380 | 188 | 210 | 250 | 29 | 215 | 140 | 8-ø18 |
6" | DN150 | 440 | 212 | 240 | 285 | 29 | 250 | 140 | 8-ø22 |
8" | DN200 | 550 | 268 | 295 | 340 | 38 | 334 | 140 | 12-ø22 |
