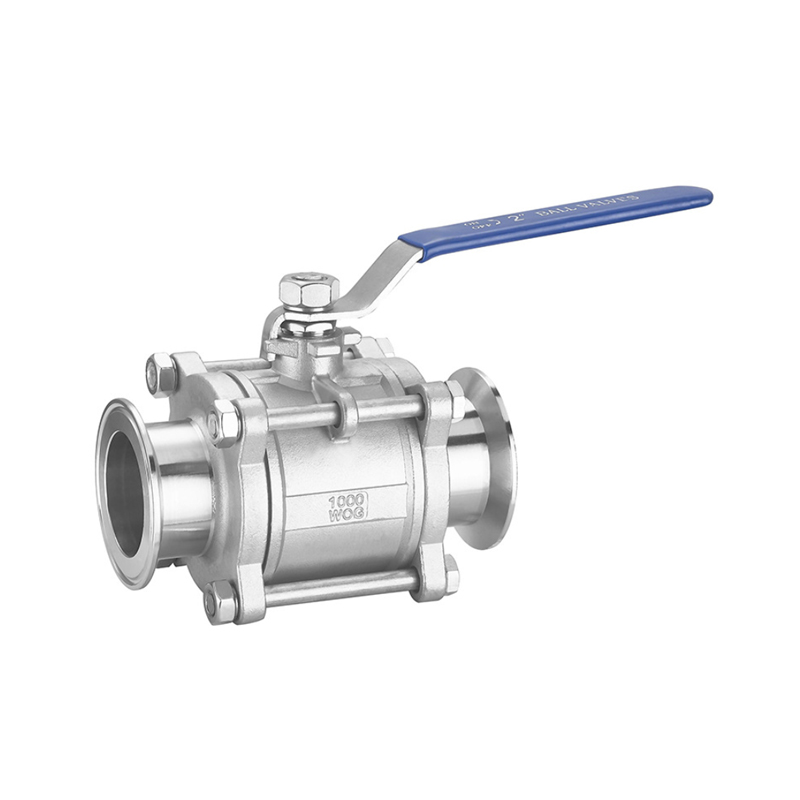

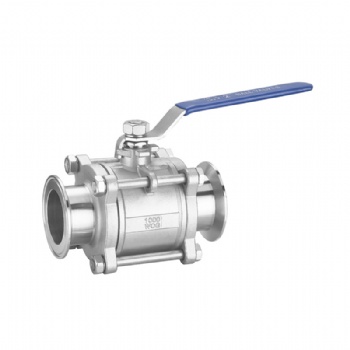

  • 3-PC clamp ball valve
  • 3-PC clamp ball valve
3-PC clamp ball valve 3-PC clamp ball valve

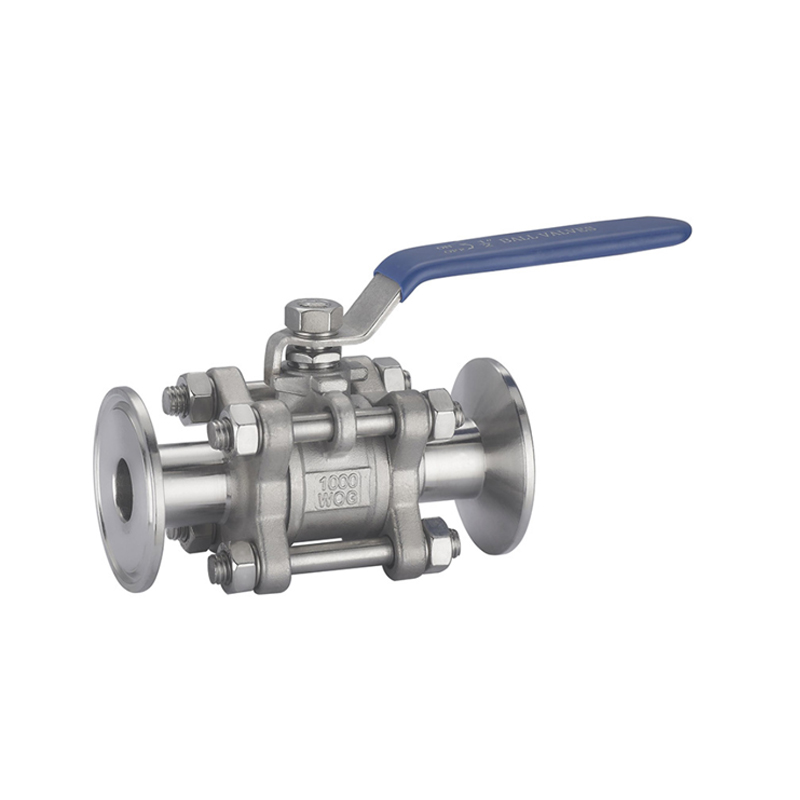

3-PC clamp ball valve

Features
*Full port:1/4"-4"(DN8-DN100)
*Working Pressure:1000WOG(PN63)
*Workign Temperature:-20℃-180℃
*Investment Casting
*Blow-out Proof stem
*Live loading Design
*Anti-static device(option)
*Cavity filled seats(option
*Locking Device Handle(option)
*ISO 5211 direct mounting pad
*Automation Accessories(option)
*Clamp End  Type:ASME BPE

特宏样本 中英文(1)-7.jpg

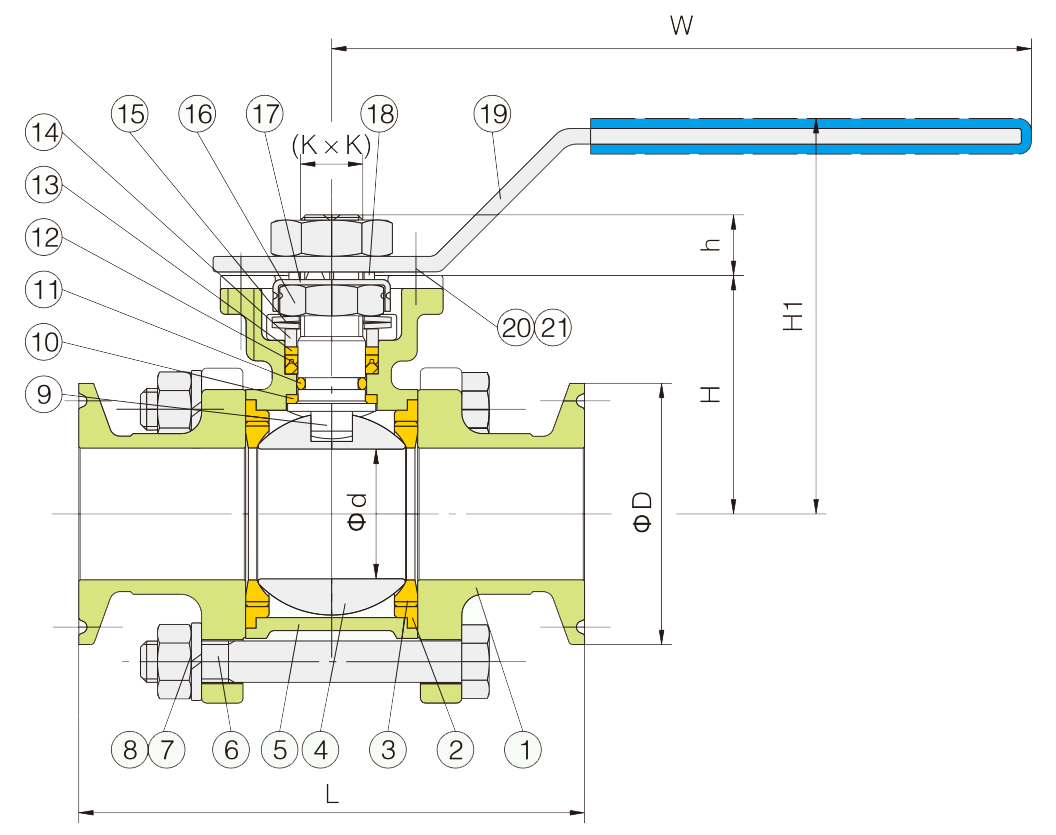

Materials
No.
PARTS
Materials
NO.
Parts
Materials
1
BONNET
CF8，CF8M,CF3M
12
PACKING
PTFE
2
GASKET
PTFE/TFM1600
13
WEAR WASHER
PTFE+25%GF
3
SEAT
PTFE/TFM1600
14
GLAND
304
4
BALL
CF8，CF8M,CF3M
15
DISC SPRING
304
5
BODY
CF8，CF8M,CF3M
16
NUT
304
6
BOLT
304
17
CROWN WASHER
304
7
SPRING WASHER
304
18
WASHER
304
8
NUT
304
19
HANDLE
304+PVC
9
Stem
304
20
HEX SOCKET BOLT
304
10
STEM WASHER
PTFE+25%GF
21
NUT
304
11
O-RING
FPM















Dimensions(mm)
SIZE
d
D
L
H
h
A
B
W
H1
1/2"
DN15
10
34
85.9
38
9
36
42
125
72
3/4"
DN20
15
34
97.5
42
9
36
42
125
76
1"
DN25
22
50.5
108.2
48
9
36
42
125
82
1-1/2"
DN40
35
50.5
135.8
61
9
42
50
140
95
2"
DN50
47.5
64
154.7
79
14
50
70
180
115
2-1/2"
DN65
59
77.5
168.5
88
14
70
102
180
124
3"
DN80
73
91
196.2
108
17
70
102
260
148
4"
DN100
97.5
119
232.5
130
17
70
102
260
170
