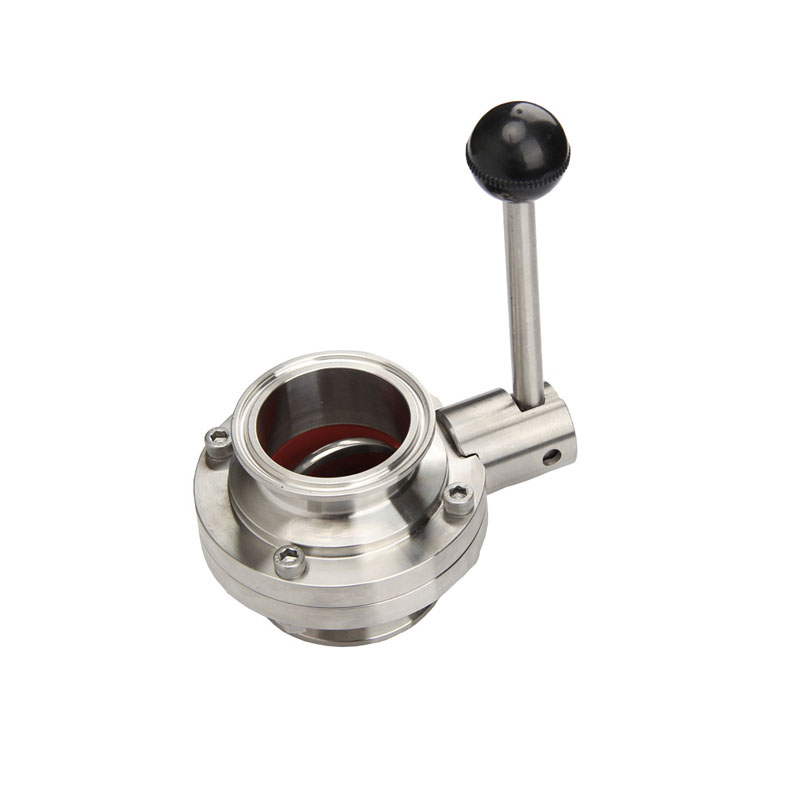

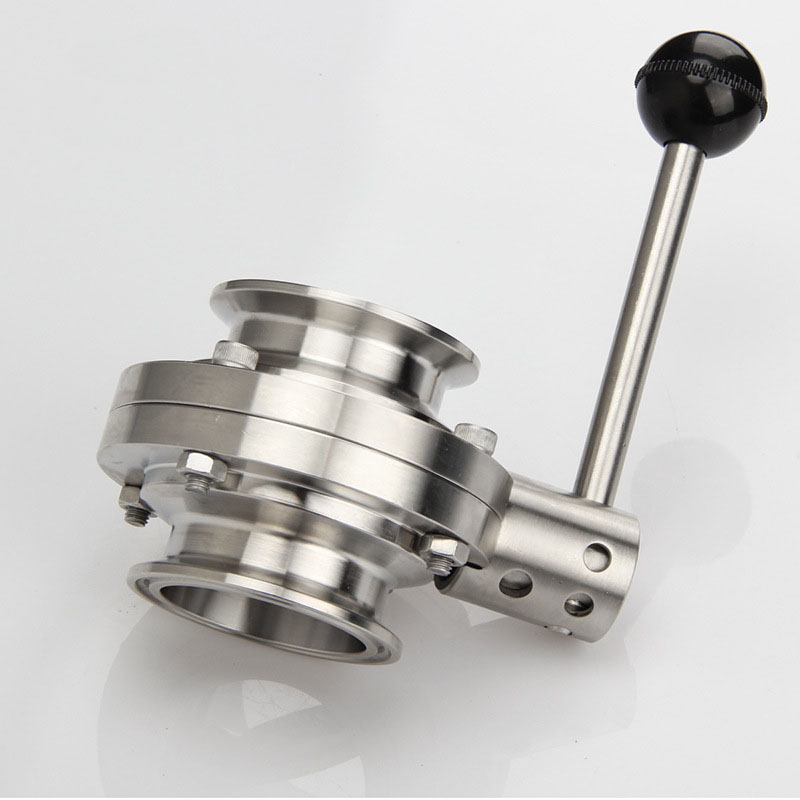

Sanitary SS clamp butterfly valve

EMAIL INQUIRY

Features

The sanitary clamp butterfly valve is a valve that uses a circular butterfly valve to open, close and adjust the fluid passage. The rotation angle is 0-90 degrees.

Simple structure, small size, light weight, widely used in dairy products, video, pharmacy, beer, cosmetics, beverages and other fields.

Technical date and materials

Valve Body	SUS304/316L	SIZE	3/4"-6"
valve disc	SUS304/316L	Working pressure	PN16
valve seat	sanitary Rubber	Medium	Dairy, food, cosmetics
Seal	O rang	pharmaceuticals, beverages

Dimensions(mm)

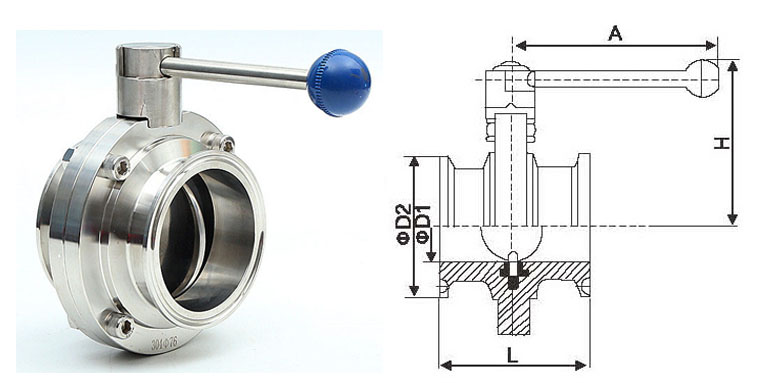

ømm	IN	øD2(mm)	øD1(mm)	A(mm)	L(mm)	H(mm)
ø19	3/4"	50.5	16	125	66	68
ø25	1"	50.5	22	125	66	68
ø32	1-1/4"	50.5	29	125	66	68
ø38	1-1/2"	50.5	35	125	70	72
ø45	1-3/4"	64	42	135	70
ø51	2"	64	48	135	70	79
ø57	2-1/4"	77.5	53	135	76
ø63	2-1/2"	77.5	59	135	76	86
ø76	3"	91	72	135	80	96
ø89	3-1/2"	106	85	160	84	101
ø102	4"	119	98	160	85	110
ø159	6"	183	153	230	123	147
