PVC CPVC valve

UPVC FOOT VALVE

EMAIL INQUIRY

ADVANTAGES:

1):The inner ball adopts a U-shaped design, uses the weight of water itself, eliminates the need for metal springs, and can be installed horizontally or vertically, with better water stopping effect;

2):The ribs in the valve body better guide the hemisphere, making the sealing performance better and more stable.

Product description

Materials：UPVC,CPVC,PPH

SIZE: 1/2"-4"

Connection: Solvent socket，Thread

Standard：ANSI,DIN,JIS

Pressure:150PSI

Temp: UPVC(0-45℃）；CPVC.PPH(0-95℃）

Body color:UPVC(Dark Gray),CPVC(LightGray),PPH(Beige）

Main parts and Materials

Body	PP,PVC,CPVC
Ball	PP,PVC,CPVC
Seat carrier	PP,PVC,CPVC
Seat	EPDM,VITON
Filter	PP,PVC,CPVC
Seat Plate	PP,PVC,CPVC

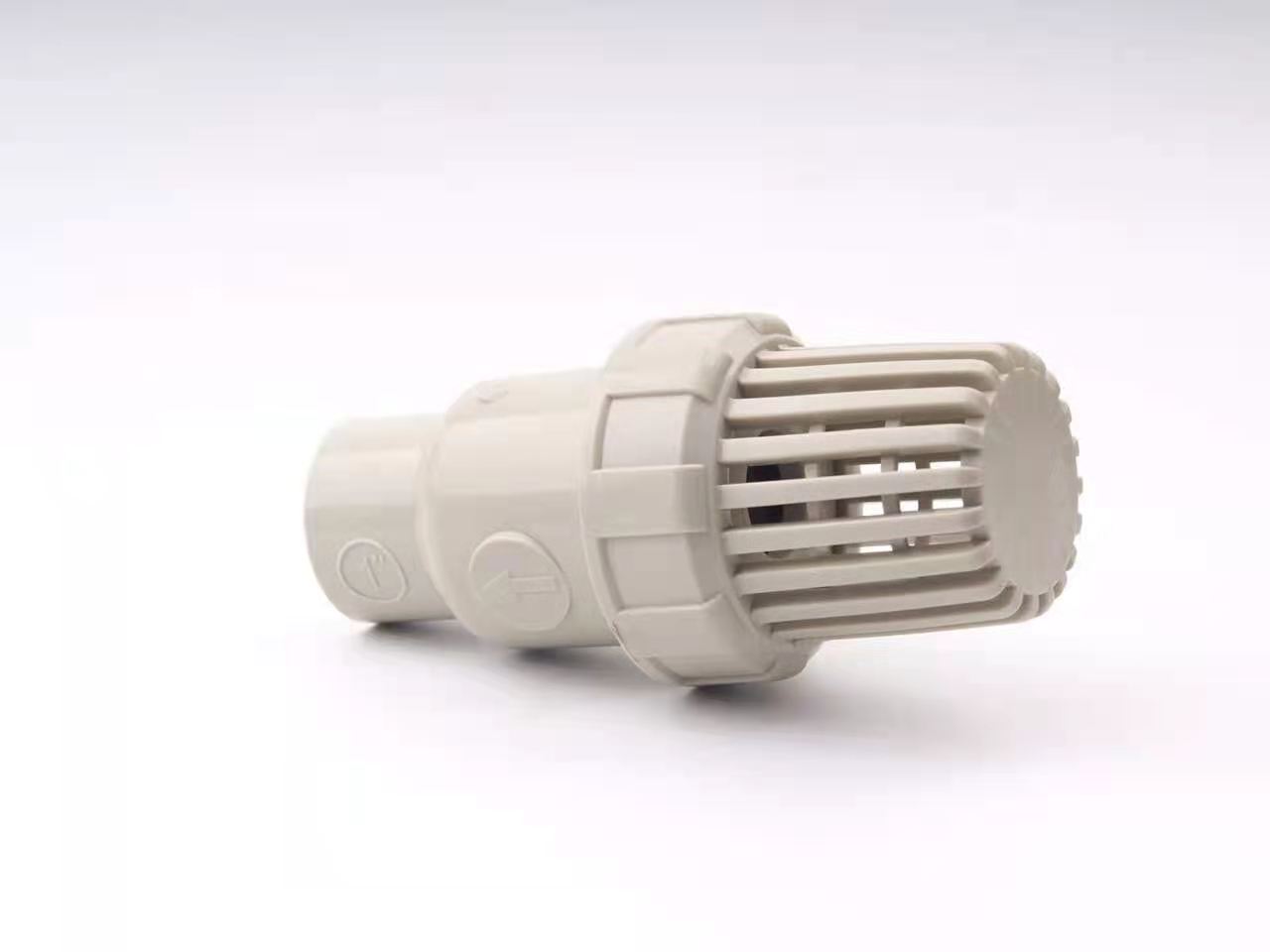

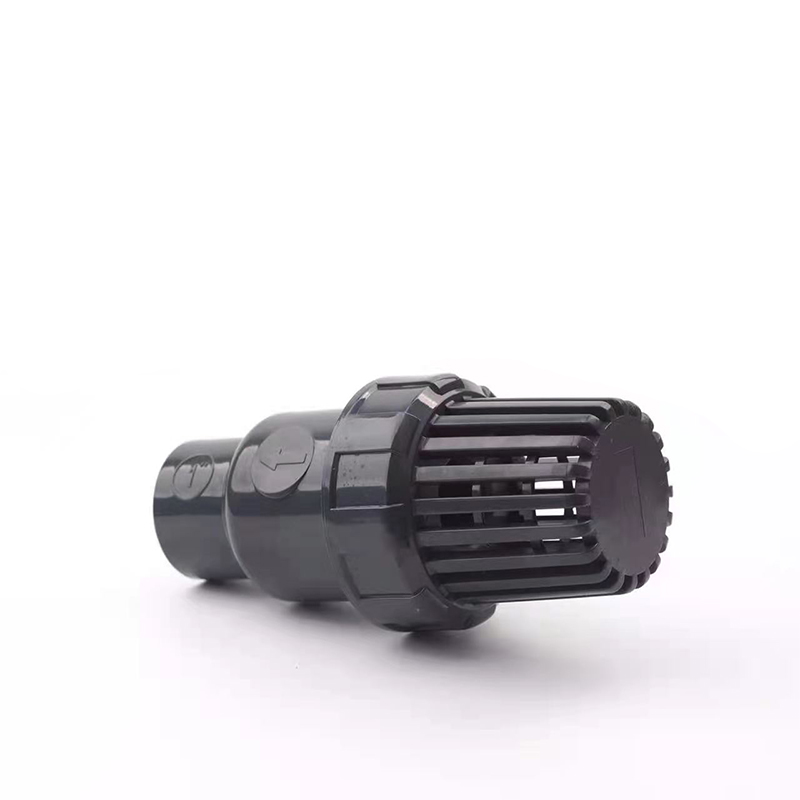

Products pictures

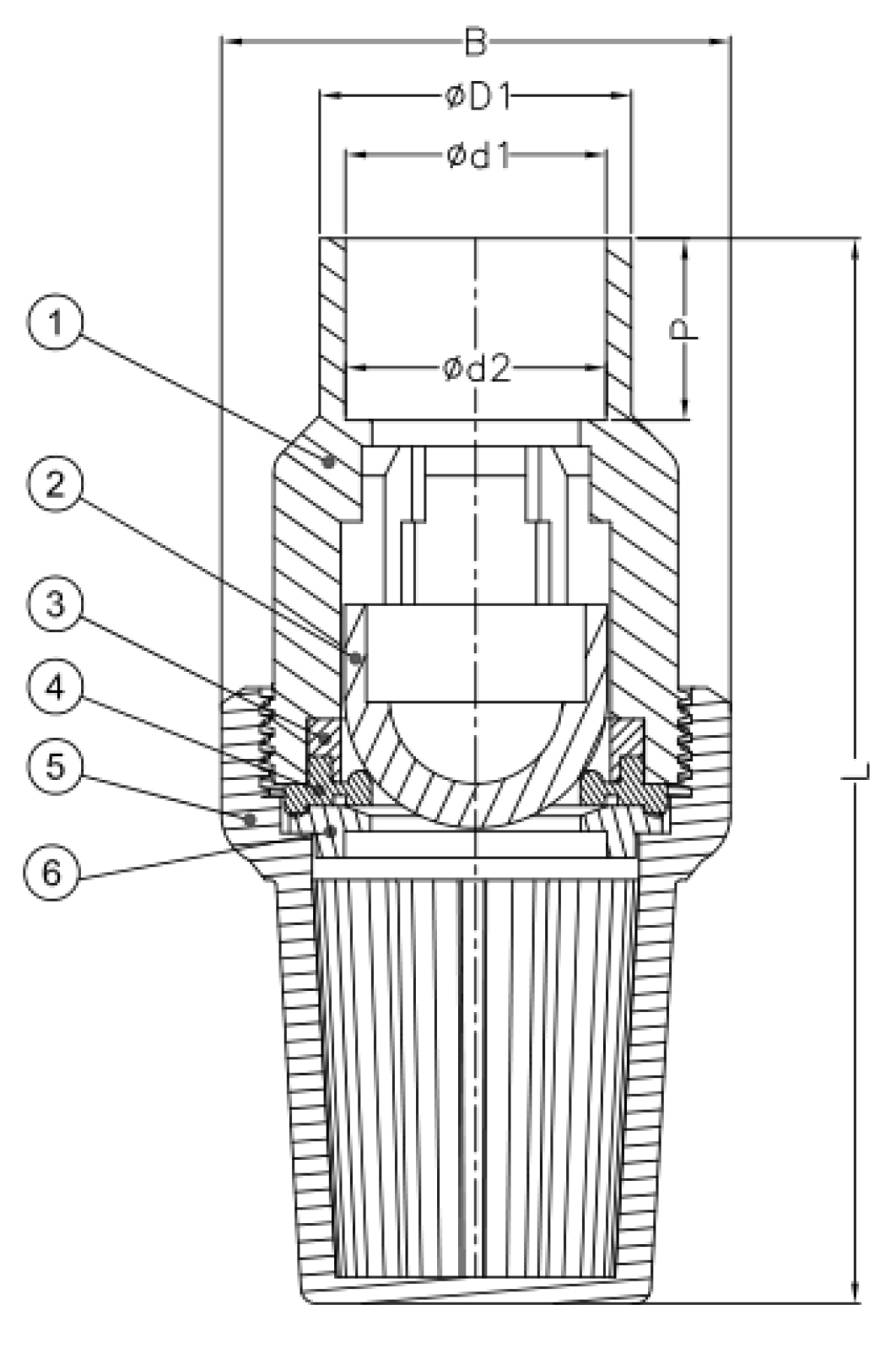

Drawing

Dimensions(mm)

SIZE	B	L	P	D1	ANSI		DIN		JIS		CNS
SIZE	B	L	P	D1	d1	d2	d1	d2	d1	d2	d1	d2
15(1/2")					21.54	21.23	20.3	20.1	22.4	21.73	22.4	21.9
20(3/4")	63.2	137.4	25.6	35.1	26.87	26.57	25.3	25.1	26.45	25.69	26.4	25.9
25(1")	73.5	153.5	27.6	43.1	33.65	33.27	32.3	32.1	32.55	31.7	34.5	33.9
32(1-1/4")	84.8	182.2	31.7	53	42.42	42.04	40.3	40.1	38.6	37.65	42.5	41.9
40(1-1/2")	97.8	204.8	35	60	48.56	48.11	50.3	50.1	48.7	47.74	48.6	47.9
50(2")	117.4	240.3	38	75.2	60.63	60.17	63.3	63.1	60.8	59.78	60.6	59.9
65(2-1/2")	150	316	55	92	73.38	72.85	75.3	75.1	76.6	75.68	76.7	75.9
80(3")	175	352	60	110	89.31	88.7	90.4	90.1	89.6	88.55	89.7	88.9
100(4")	210	425	70	132	114.76	114.1	110.1	110.1	114.7	113.6	115	113.8
