  • 3PC High platform thread ball valve
  • 3PC High platform thread ball valve

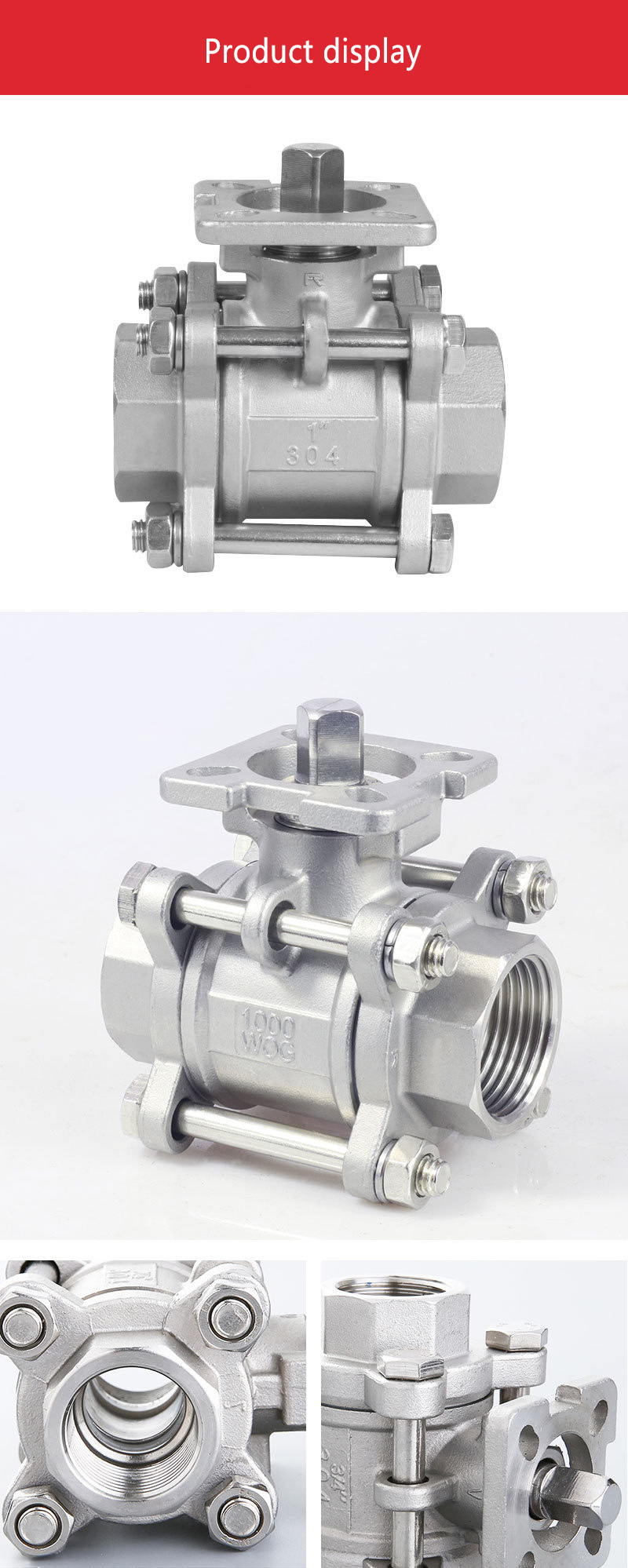

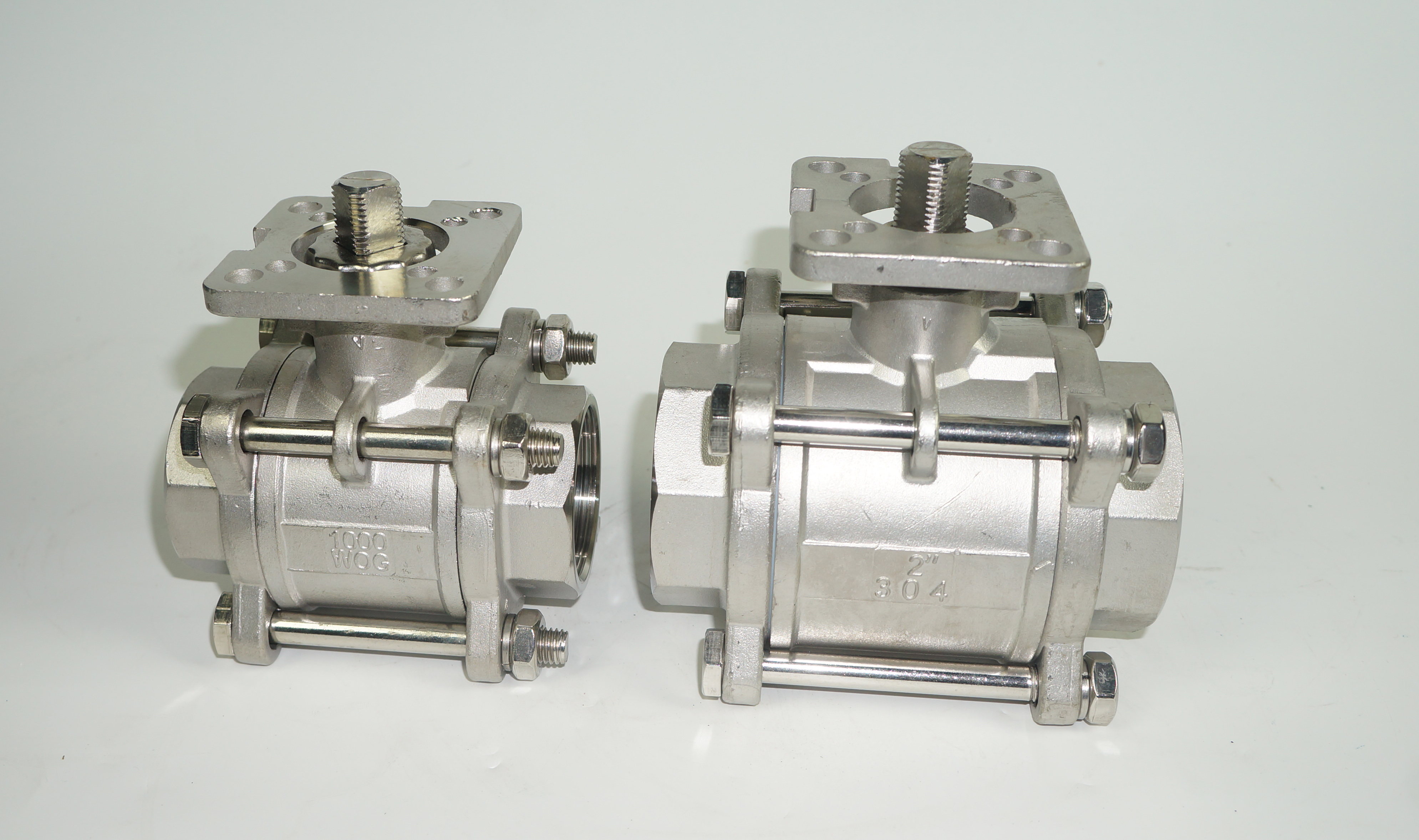

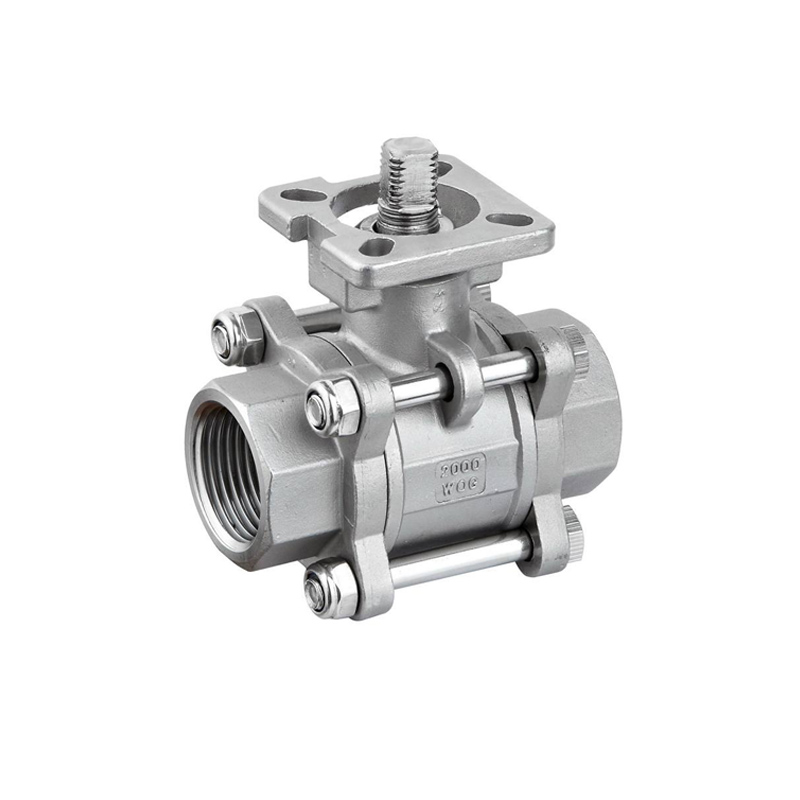

3PC High platform thread ball valve 3PC High platform thread ball valve

3PC High platform thread ball valve

Features

*Nominal pressure: PN16, 1000WOG(PN63)
*Temperature: -20~+180°
*Thread type end: AMSE B1.20.1(NPT), DIN259/ DIN 2999, BS21
*Socket weld type: ASME B16.11& DIN3239 part2

Materials
No.
PARTS
Materials
NO.
Parts
Materials
1
BONNET
WCB,CF8,CF8M
9
STEM
304,316
2
GASKET
PTFE
10
STEM WASHER
PTFE
3
SEAT
PTFE
11
PACKING
PTFE
4
BALL
CF8,CF8M
12
GLAND
304
5
BODY
WCB,CF8,CF8M
13
HANDLE
304+PVC
6
BOLT
304
14
SPRING WASHER
304
7
SPRING WASHER
304
15
NUT
304
8
NUT
304

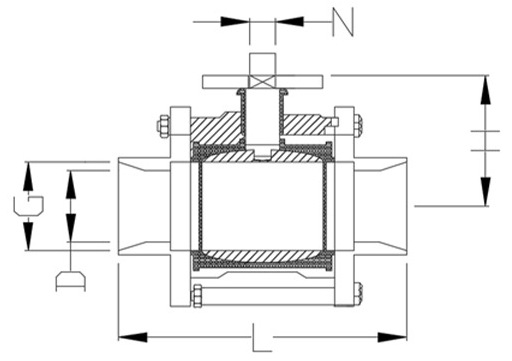

Dimensions(mm)
SIZE
D
L
H
N
1/2"
DN15
15
69.5
50
9*9
3/4"
DN20
20
80.5
53
9*9
1"
DN25
25
86
55
11*11
1-1/4"
DN32
32
98.7
60
11*11
1-1/2"
DN40
38
109.7
65
14*14
2"
DN50
49
135.3
80
14*14

[Next：3PC thread 2000PSI high pressure Ball valve]→
