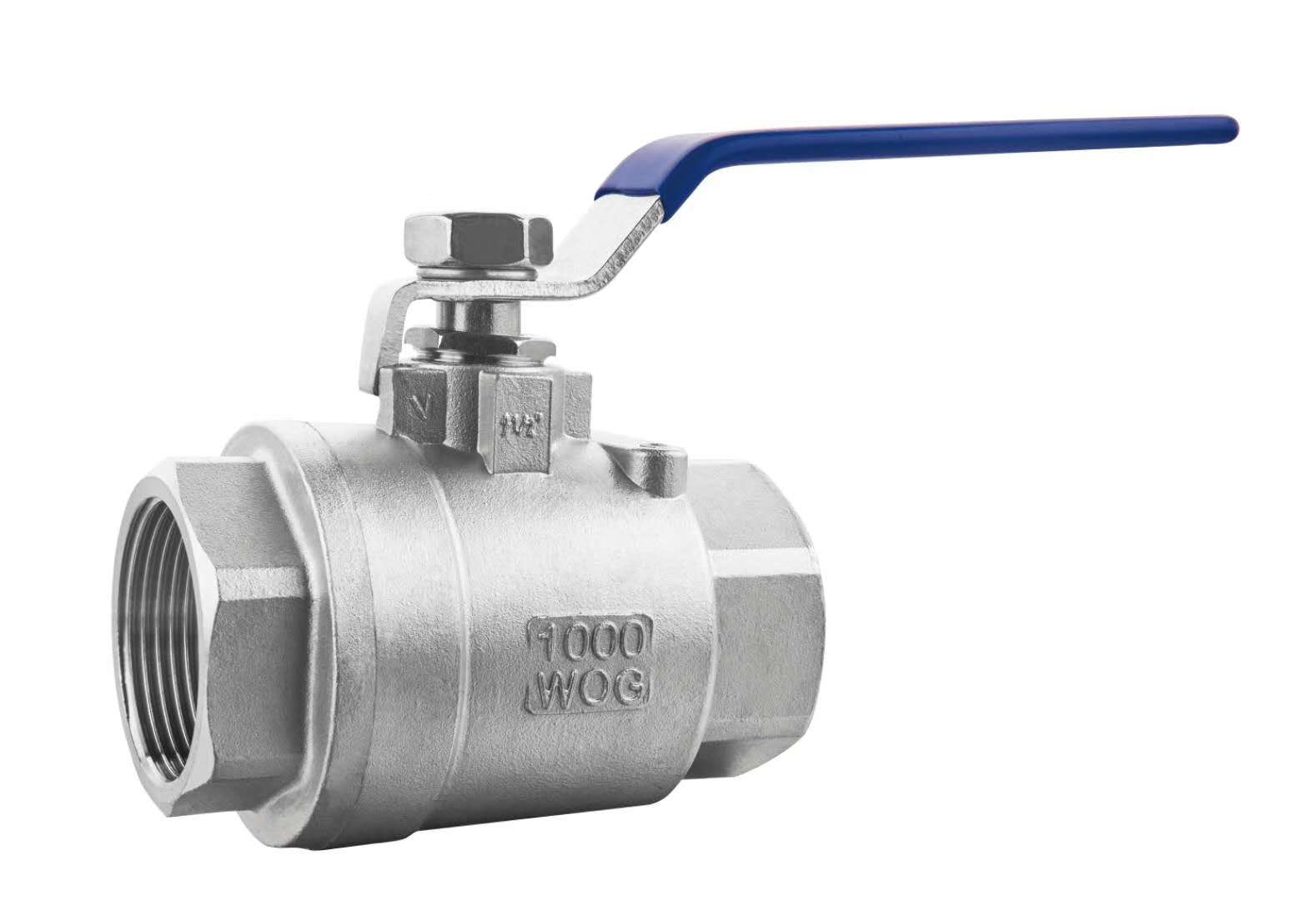

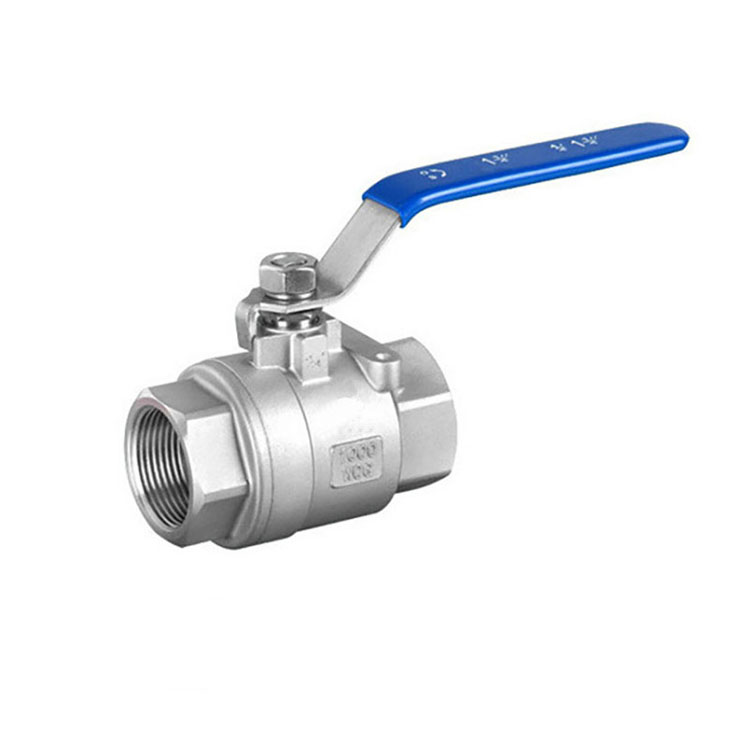

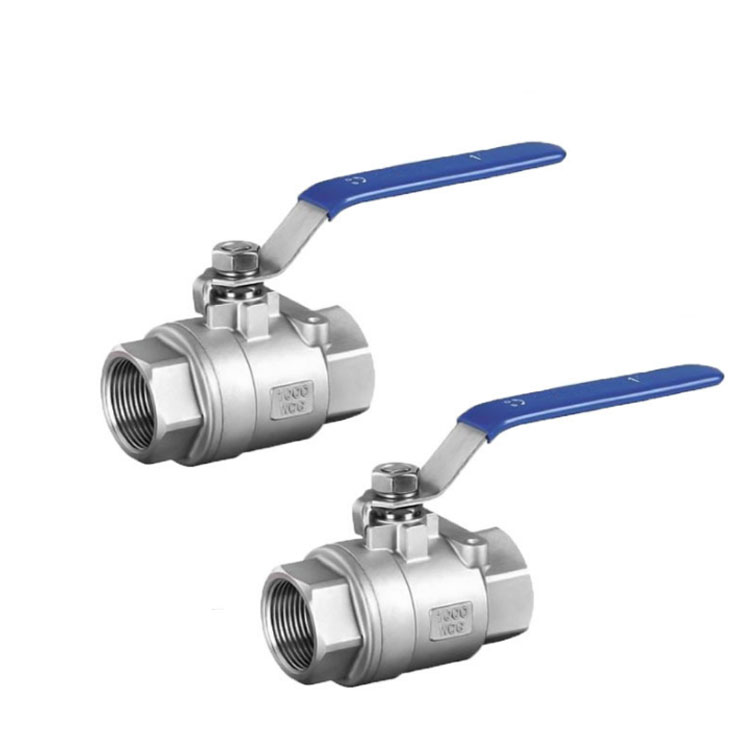

mini 2pc NPT BSP ball valve SS

Features
*Full port:1/4"-4"(DN8-DN100)
*Working Pressure:1000WOG(PN63)
*Workign Temperature:-20℃-180℃
*Investment Casting
*Blow-out Proof stem
*Live loading Design
*Anti-static device(option)
*Locking Device Handle(option)
*ISO 5211 direct mounting pad or Manual type
*Automation Accessories(option)
*Thread Type:ASME B1.20.1(NPT),
 -DIN259/DIN2999,BS21,ISO 288-1,ISO 7-1

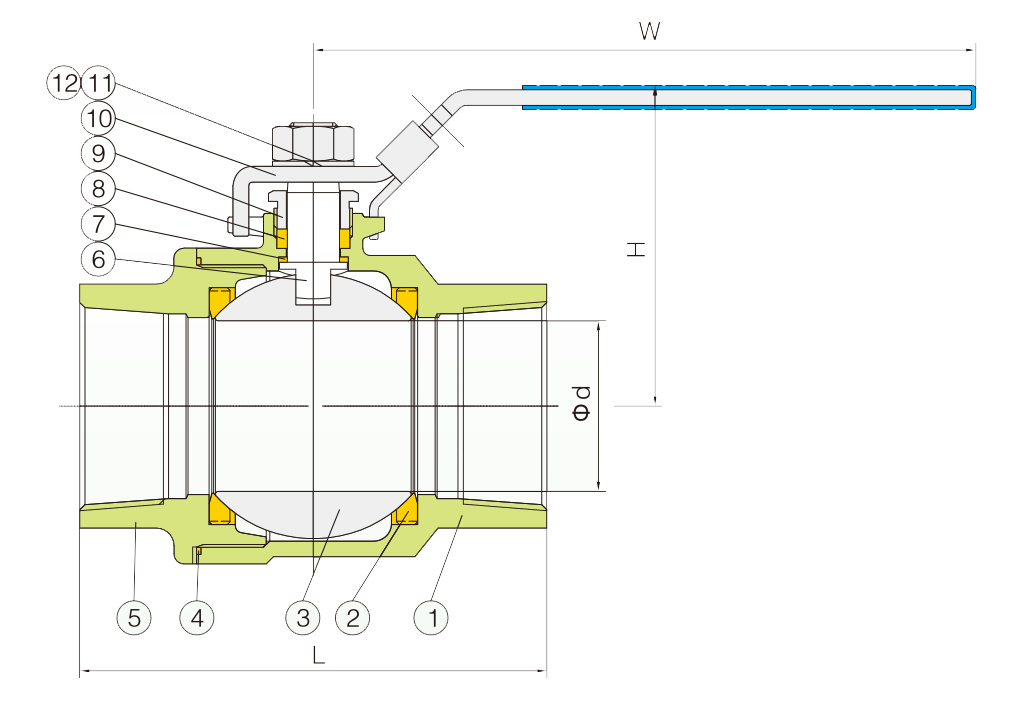

Materials
No.
PARTS
Materials
NO.
Parts
Materials
1
BODY
WCB,CF8,CF8M
7
STEM WASHER
PTFE
2
SEAT
PTFE
8
PACKING
PTFE
3
BALL
CF8,CF8M
9
GLAND
304
4
GASKET
PTFE
10
HANDLE
304+PVC
5
BONNET
WCB,CF8,CF8M
11
SPRING WASHER
304
6
STEM
304,316
12
NUT
304
Dimensions(mm)
SIZE
d
L
H
W
1/4"
DN8
11
51
52
105
3/8"
DN10
12.7
51
52
105
1/2"
DN15
15
55.5
54
105
3/4"
DN20
20
71
60
128
1"
DN25
25
84
67
146
1-1/4"
DN32
32
97
72
146
1-1/2"
DN40
38
110
83
192
2"
DN50
50
134
92
192
2-1/2"
DN65
65
166
138
255
3"
DN80
76
192
149
255
