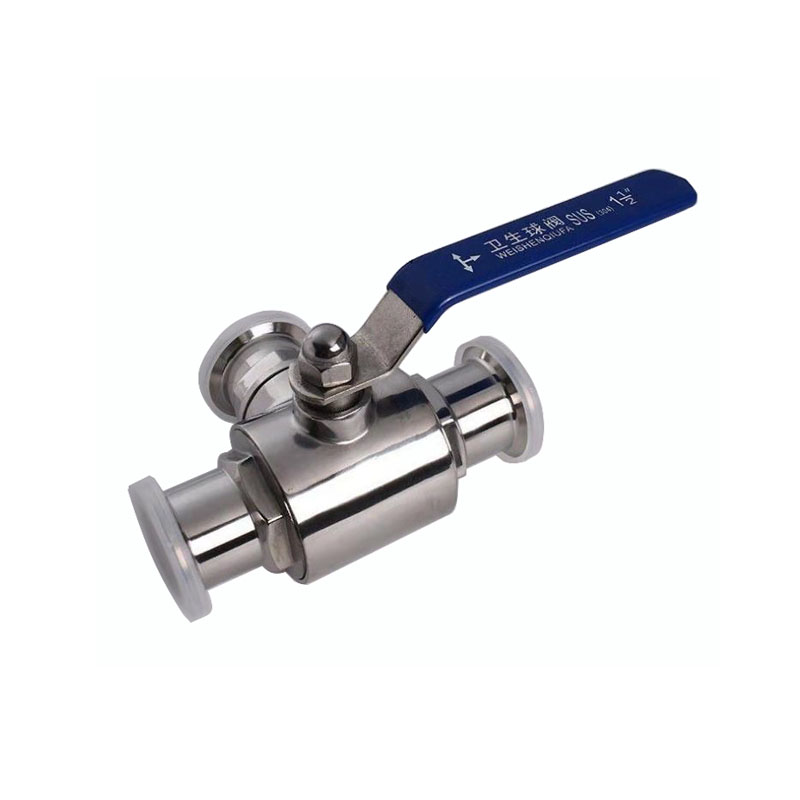

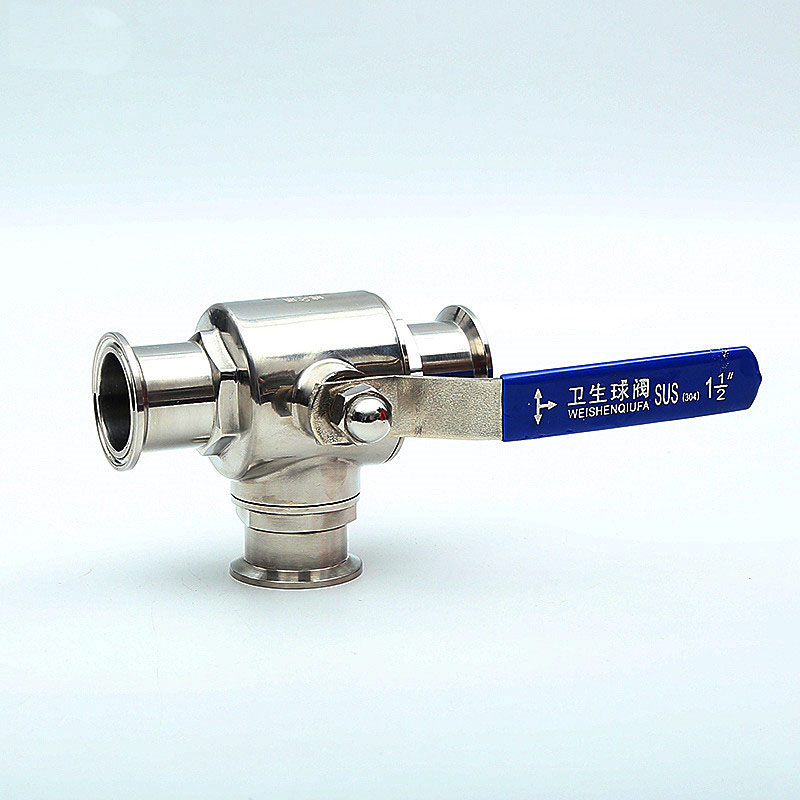

Sanitary 3way SS clamp ball valve

EMAIL INQUIRY

Features

The Sanitary 3way SS clamp ball valve have "L" and "T" types low fluid resistance, and the resistance coefficient of the reduced diameter or full diameter ball valve is the smallest among all valves.

The sealing performance is good, and many valve seats are made of PTFE elastic material. This soft seal has good sealing performance.

widely used in dairy products, video, pharmacy, beer, cosmetics, beverages and other fields.

Technical date and materials

Valve Body	SUS304/316L	SIZE	3/4"-4"
valve disc	SUS304/316L	Working pressure	PN16
valve seat	sanitary Rubber	Medium	Dairy, food, cosmetics
Seal	O rang	pharmaceuticals, beverages

Dimensions(mm)

ømm	SIZE	D	B	L(mm)	KG
ø19	3/4"	50.5	54	108	0.9
ø25	1"	50.5	60	120	1.1
ø32	1-1/4"	50.5	64	128	1.3
ø38	1-1/2"	50.5	72	144	1.8
ø51	2"	64	84	168	2.7
ø63	2-1/2"	77	90	180	4
ø76	3"	91	110	220	7.2
ø89	3-1/2"	106	122	244	9.8
ø102	4"	119	235	270	13
