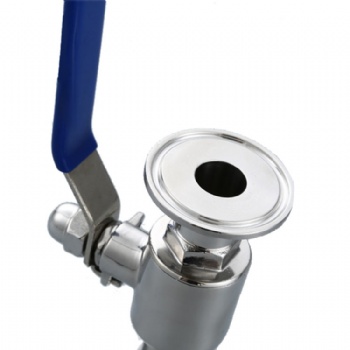

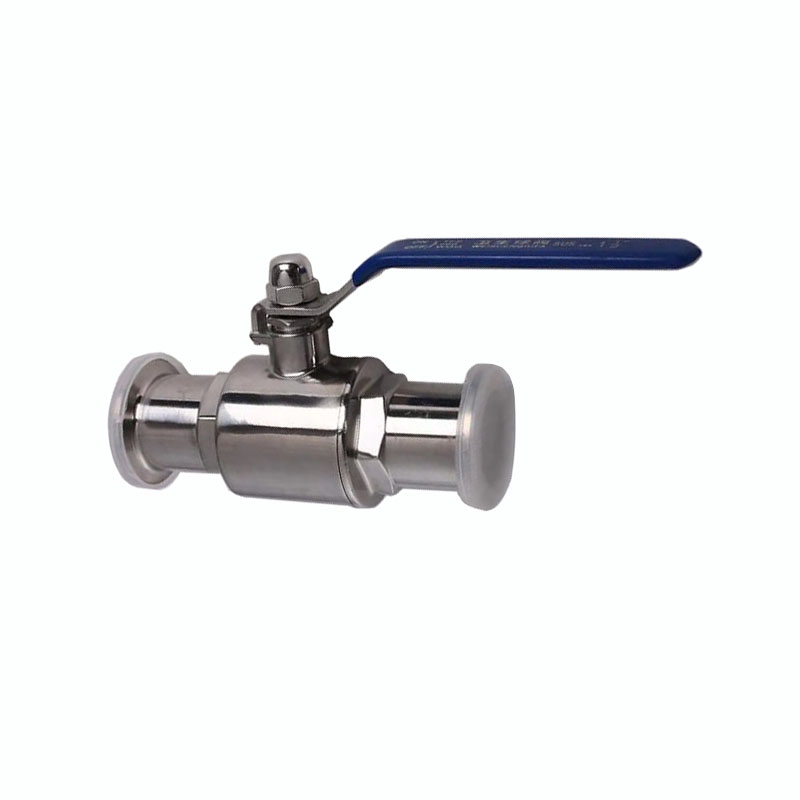

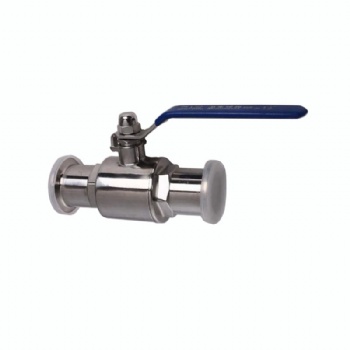

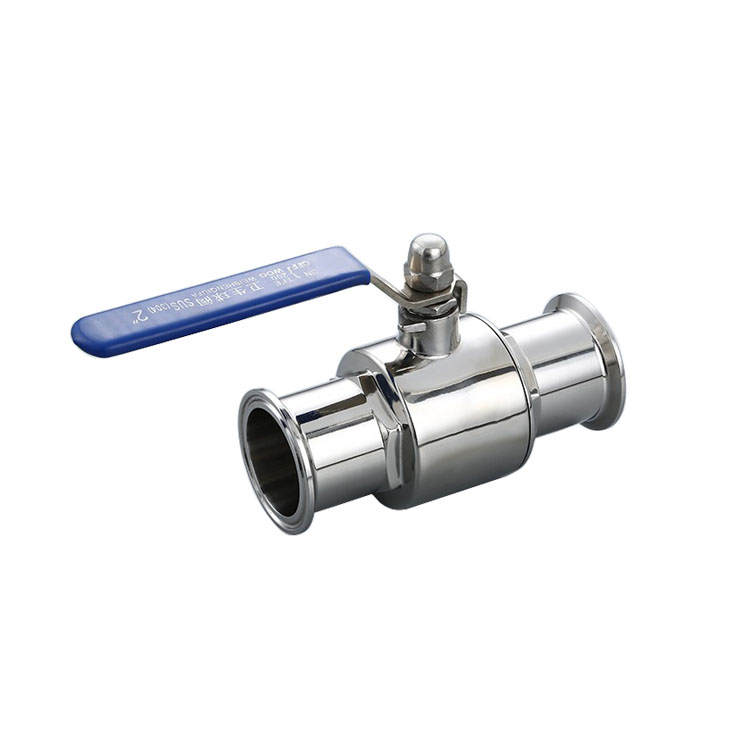

Sanitary SS clamp ball valve

EMAIL INQUIRY

Features

The sanitary clamp ball valve has low fluid resistance, and the resistance coefficient of the reduced diameter or full diameter ball valve is the smallest among all valves.

The sealing performance is good, and many valve seats are made of PTFE elastic material. This soft seal has good sealing performance.

widely used in dairy products, video, pharmacy, beer, cosmetics, beverages and other fields.

Technical date and materials

Valve Body	SUS304/316L	SIZE	1/2"-5"
valve disc	SUS304/316L	Working pressure	PN16
valve seat	sanitary Rubber	Medium	Dairy, food, cosmetics
Seal	O rang	pharmaceuticals, beverages

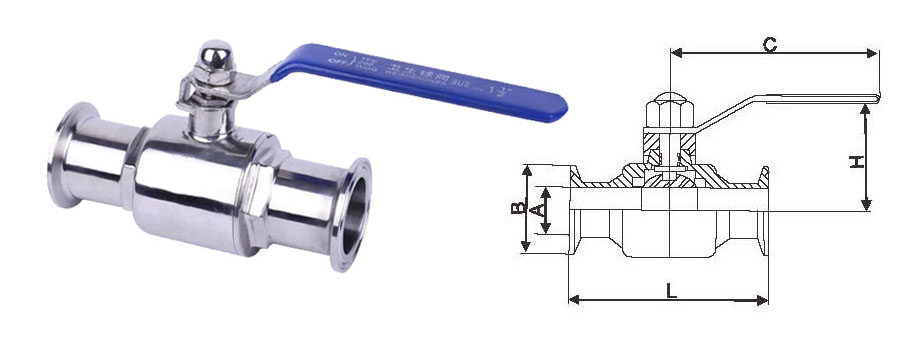

Dimensions(mm)

ømm	SIZE	A	B	C	L
ø12.7	1/2"	10	25.4	100	85
ø19	3/4"	16	50.5	120	100
ø25	1"	22	50.5	130	105
ø32	1-1/4"	29	50.5	140	120
ø38	1-1/2"	35	50.5	160	136
ø45	1-3/4"	42	64	170	145
ø51	2"	47	64	175	160
ø57	2-1/4"	52	77	195	162
ø63.5	2-1/2"	58	77	200	170
ø76	3"	71	91	250	195
ø89	3-1/2"	83	106	260	235
ø102	4"	97	119	290	270
ø133	5"	125	145	350	290
