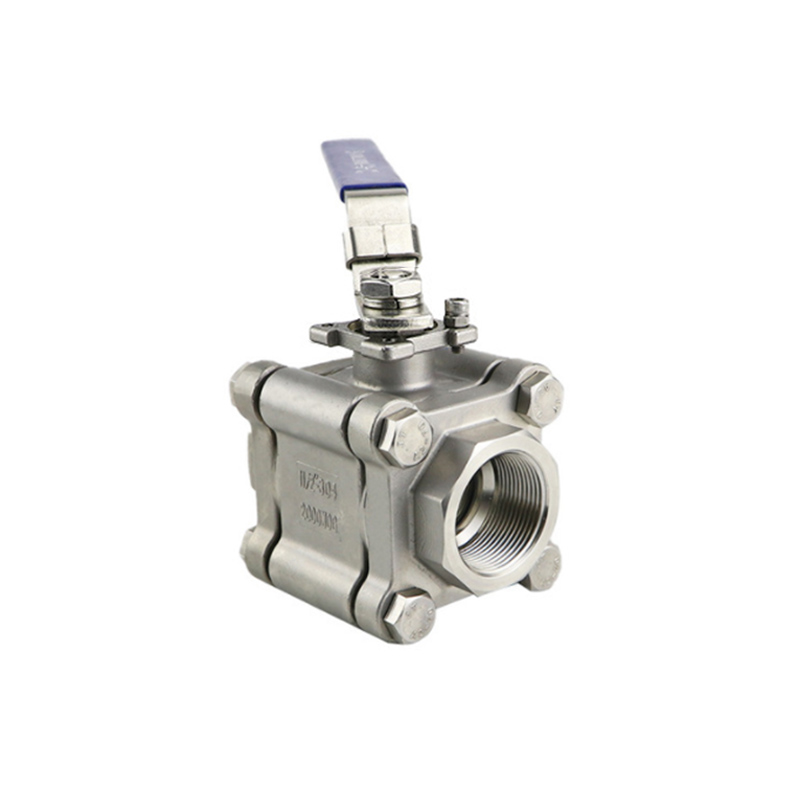

No. | PARTS | Materials | NO. | Parts | Materials |
1 | Boday | WCB,CF8,CF8M | 4 | Bonnet | WCB, CF8, CF8M |
2 | Seat | PTFE,PPL | 5 | Gland of valve | CF8 |
3 | Ball | SS304,SS316,SS316L | 6 | Bolt and Nut | SS |

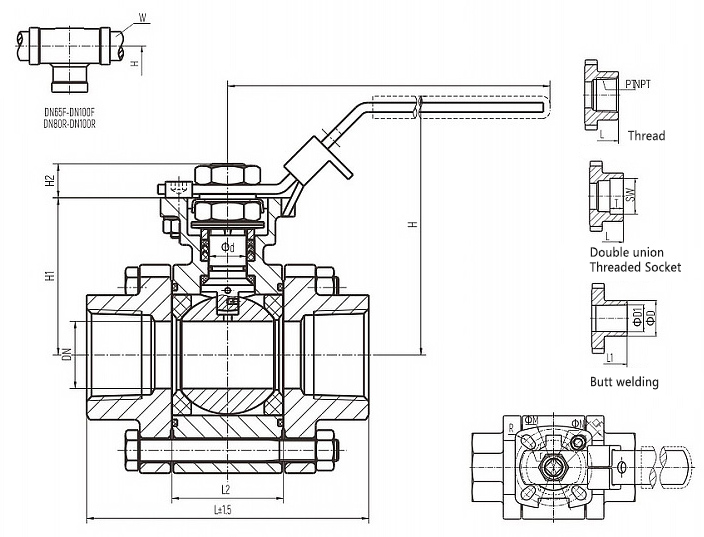

SIZE | L | L1 | L2 | d | H | H1 | H2 | SW | T | M | N | R | r | |
3/8" | DN10 | 75 | 75 | 24.5 | 12 | 73 | 42.5 | 8 | 18 | 9.5 | 42 | 36 | 3 | 3 |
1/2" | DN15 | 75 | 75 | 24.5 | 12 | 73 | 42.5 | 8 | 22.2 | 9.5 | 42 | 36 | 3 | 3 |
3/4" | DN20 | 85 | 90 | 31.5 | 12 | 77.5 | 46.5 | 8 | 27.6 | 12.5 | 42 | 36 | 3 | 3 |
1" | DN25 | 105 | 110 | 41.5 | 15 | 96 | 58.5 | 12 | 34.3 | 12.5 | 50 | 42 | 3.5 | 3 |
1-1/4" | DN32 | 111 | 115 | 48.5 | 15 | 100 | 62.5 | 12 | 43.1 | 12.5 | 50 | 42 | 3.5 | 3 |
1-1/2" | DN40 | 127 | 130 | 56.3 | 22 | 125 | 78 | 15 | 49.2 | 12.5 | 70 | 50 | φ9 | φ7.5 |
2" | DN50 | 143 | 145 | 71.5 | 22 | 135 | 88 | 15 | 61.7 | 16 | 70 | 50 | φ9 | φ7.5 |
2-1/2" | DN65 | 185 | 185 | 86.5 | 25 | 148 | 109 | 19 | 74.4 | 16 | 102 | 70 | φ12 | φ10 |
3" | DN80 | 205 | 205 | 100 | 25 | 155 | 117.5 | 19 | 90.3 | 16 | 102 | 70 | φ12 | φ10 |
4" | DN100 | 240 | 240 | 127 | 25 | 171 | 133.5 | 19 | 115.7 | 19 | 102 | 70 | φ12 | φ10 |
