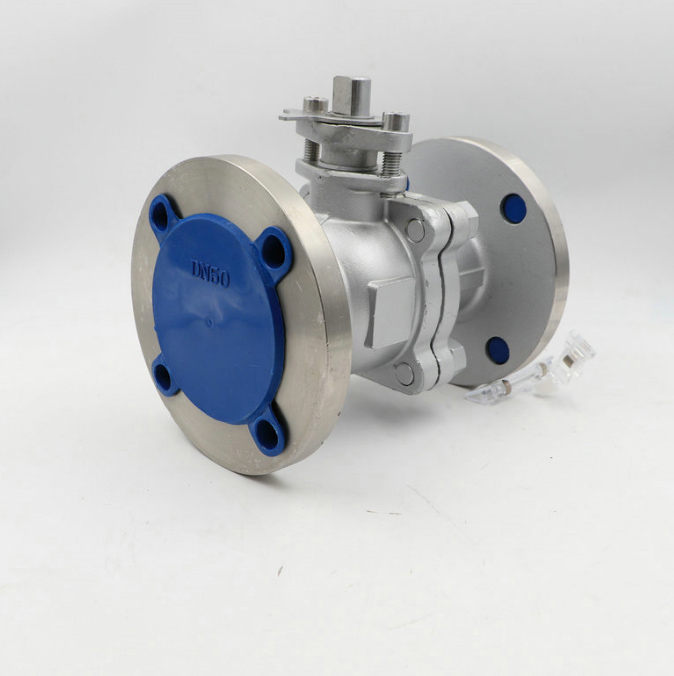

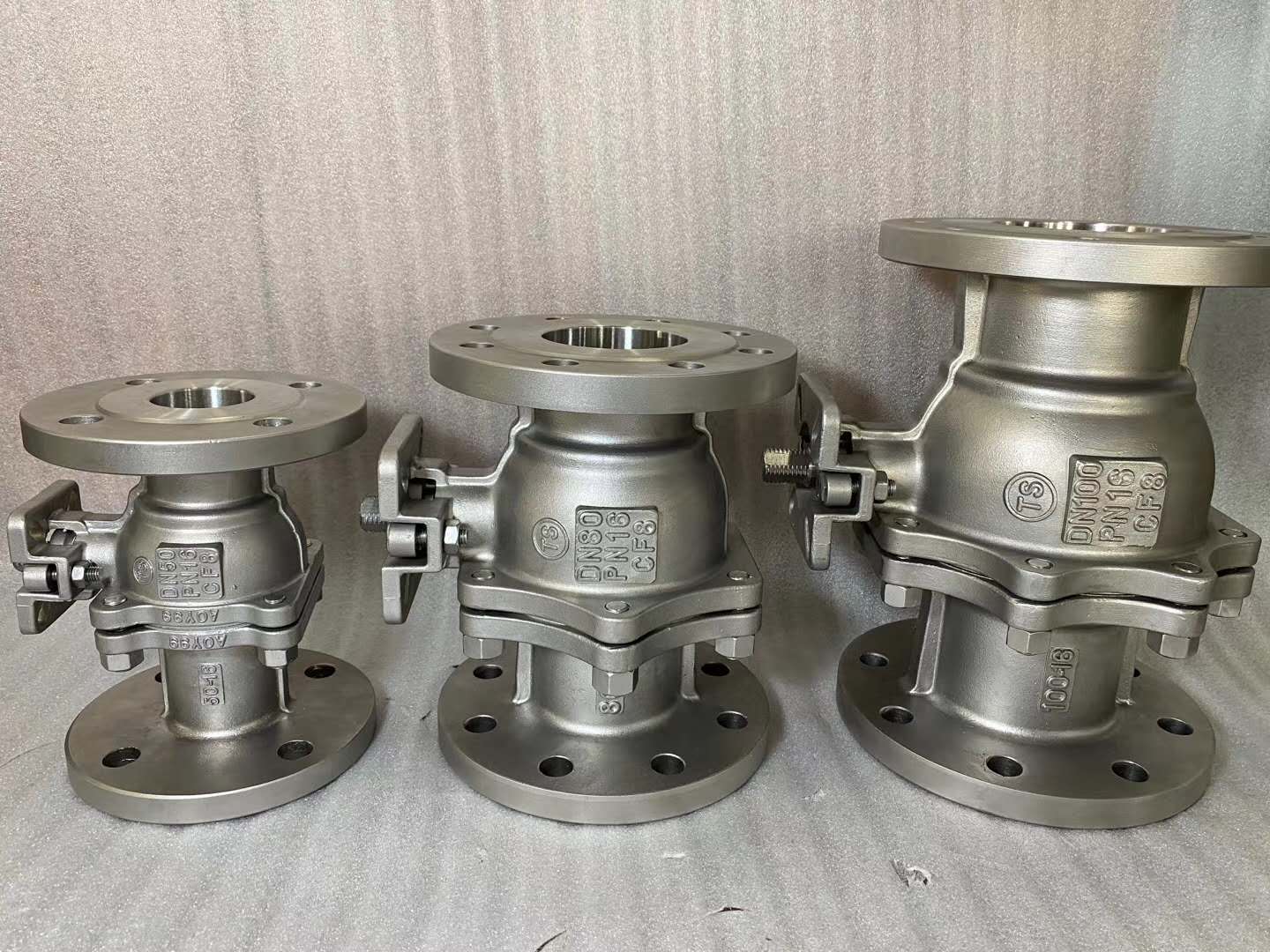

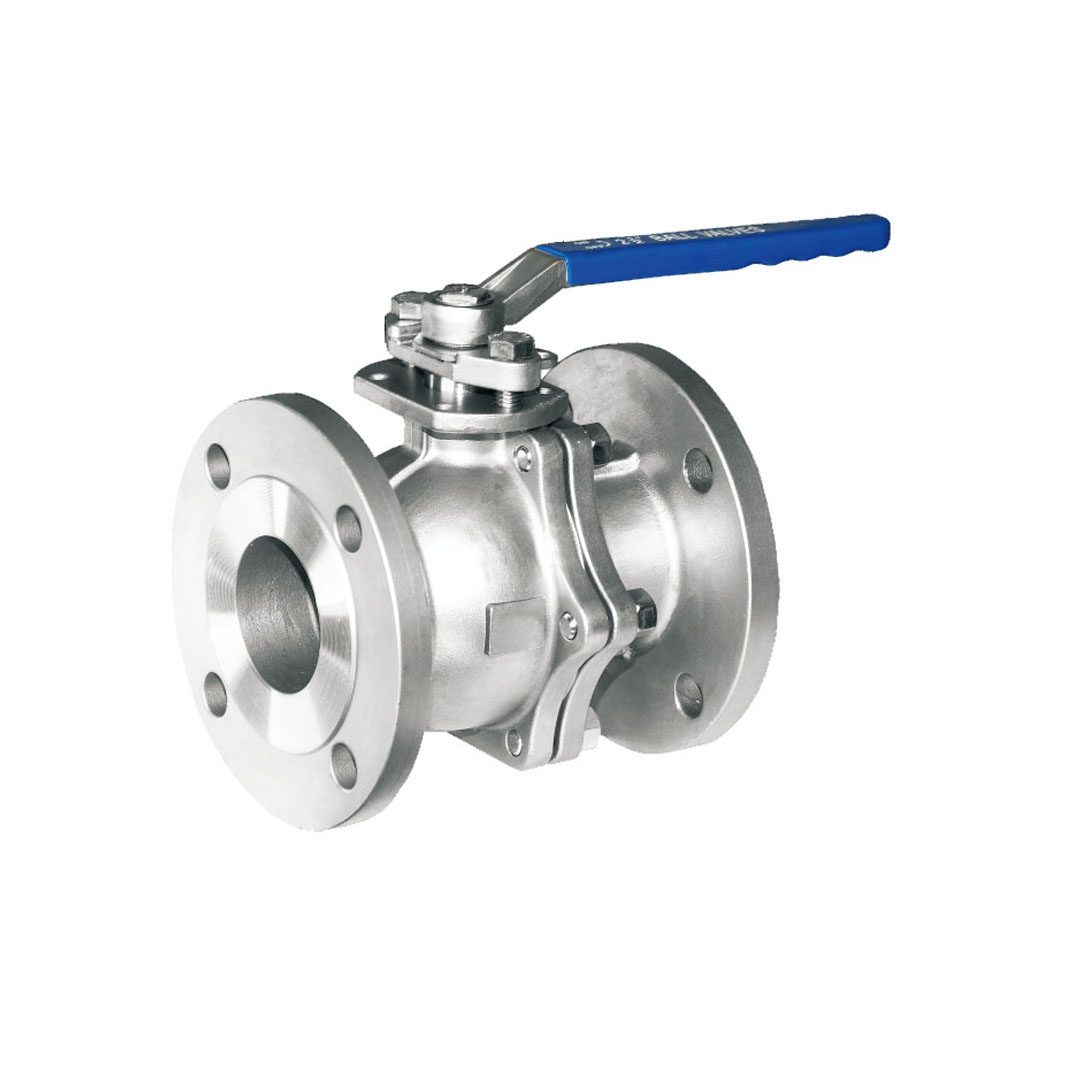

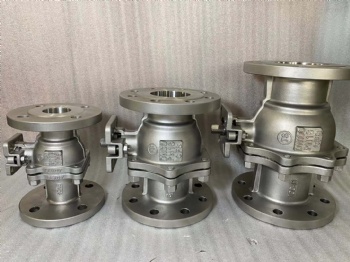

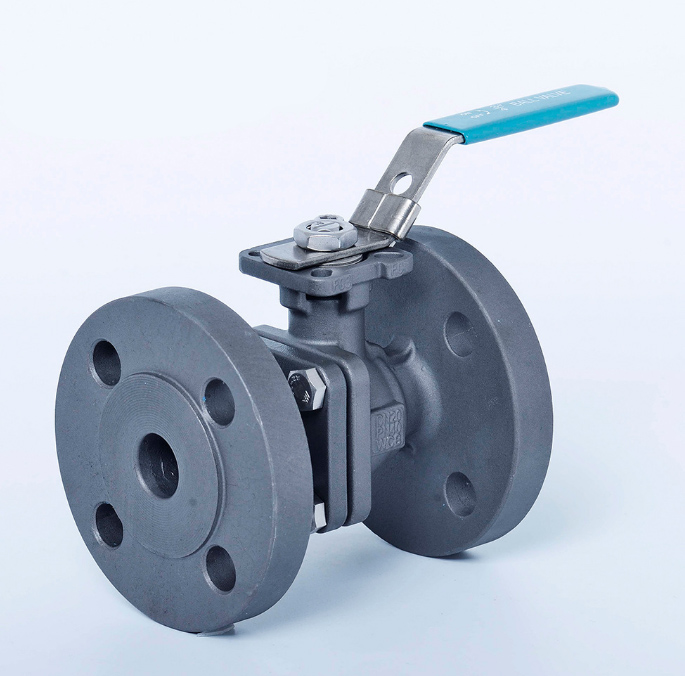

GB-PN16/40 Blow-out Proof stem/full port Temperature range:-20 to 180℃ Design: GB/T-12237 Test:GB/T-13927 | JIS-10K Blow-out Proof stem/full port Temperature range:-20 to 180℃ Design: ANSI B16.34 Flange Dimensions: JIS B2238 10K Face to Face:JIS B2002(ASME B16.1) Test:API-598 |
Class 150/300# Blow-out Proof stem/full port Temperature range:-20 to 180℃ Design: ANSI B16.34 Flange Dimensions: ASME B16.5 Class150 Face to Face:Asme B16.1 Test:API-598 Pressure test:API598 | DIN PN16/40 Blow-out Proof stem/full port Temperature range:-20 to 180℃ Design: EN12516-1 Flange Dimensions: EN1092-1 TYPE 21 PN16/40(RF SF) Face to Face:EN 558-1F4/F5(DIN 3202 F4/F5) Test:EN-12266-1 |
No. | PARTS | Materials | NO. | Parts | Materials |
1 | BODY | WCB,CF8,CF8M | 11 | PACKING | PTFE |
2 | SEAT | PTFE | 12 | WEAR WASHER | PTFE+25%GF |
3 | BALL | CF8,CF8M | 13 | GLAND | SS304 |
4 | GASKET | PTFE | 14 | DISC SPRING | SS304 |
5 | BONNET | WCB,CF8,CF8M | 15 | NUT | SS304 |
6 | BOLT | SS304 | 16 | CROWN WASHER | SS304 |
7 | NUT | SS304 | 17 | WASHER | SS304 |
8 | STEM | SS304,SS316 | 18 | HANDLE | 304+PVC |
9 | STEM WASHER | PTFE+25%GF | 19 | HEX SOCKET BOLT | SS304 |
10 | O-RING | FPM | 20 | NUT | SS304 |

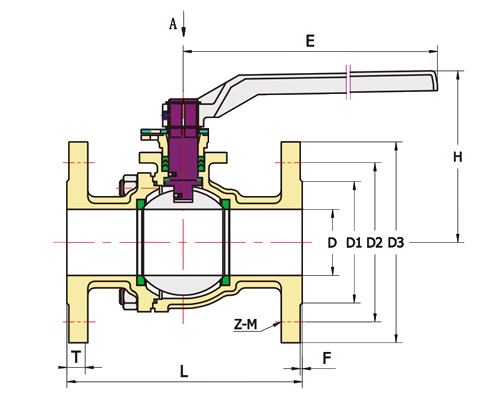

SIZE | D | L | D2（PCD/BCD) | E | H | |||||
GB-PN16 | 150LB | 300LB | JIS10K | GB-PN40 | ||||||
1/2" | DN15 | 15 | 130 | 65 | 60 | 67 | 65 | 65 | 132 | 72 |
3/4" | DN20 | 20 | 140 | 75 | 70 | 83 | 75 | 75 | 132 | 72 |
1" | DN25 | 25 | 150 | 85 | 80 | 89 | 85 | 85 | 170 | 88 |
1-1/4" | DN32 | 32 | 165 | 100 | 89 | 98 | 100 | 100 | 170 | 92 |
1-1/2" | DN40 | 38 | 180 | 110 | 98 | 114 | 110 | 110 | 230 | 125 |
2" | DN50 | 50 | 200 | 125 | 121 | 127 | 125 | 125 | 230 | 136 |
2-1/2" | DN65 | 64 | 220 | 145 | 140 | 150 | 145 | 145 | 230 | 155 |
3" | DN80 | 78 | 250 | 160 | 152 | 168 | 160 | 160 | 300 | 163 |
4" | DN100 | 100 | 280 | 180 | 190 | 200 | 180 | 190 | 300 | 178 |
